Xalon RF Shielding Systems was created with a commitment to developing unique RF shielding solutions, like the shielded drop ceiling system.

We have taken Radio Frequency / Electro Magnetic Interference shielding to a whole new level of performance.



Xalon RF Shielded Suspended Ceiling Panel System

For ICD / ICS 705 SCIF Rooms

RF Shielded Suspended Ceiling Panels

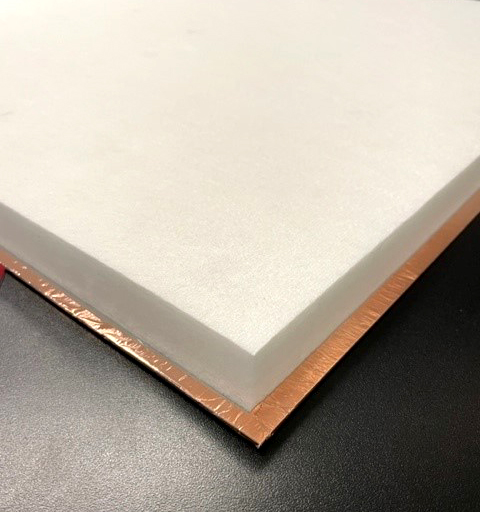

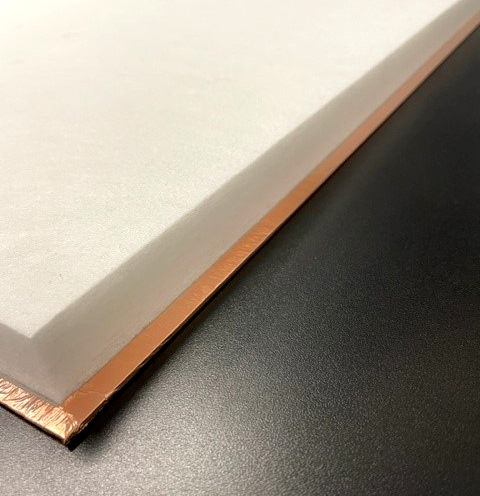

X8000T RF Shielded suspended Ceiling Panel

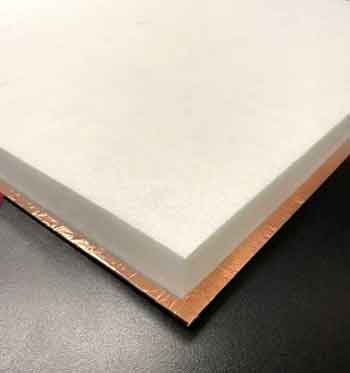

X8000T ® Panel Shown

Patent Pending

Our extensive expertise allows us to offer a variety of products to meet every type of electro-magnetic shielding concern.

Our team is committed to developing the most efficient and cost effective solutions, presented in a lightweight modern format, setting us apart from the competition.

Our team has over 50 years of experience within the EMI/RFI shielding industry. With quality management and decades of manufacturing experience at the forefront, our lab tested products offer solutions for each unique environment. High performance products designed to make installation more efficient, we reduce labor costs significantly.

Designed to be installed by general, floor, ceiling, HVAC and wall contractors.

Manufactured in the United States of America.



Xalon RF Price List


Features

Quality Materials

Cost Effective Solutions

On-time Delivery

Ease of Installation

Sizes: 2' x 2' and 2' x 4' (nominal)

Designed to be Installed by Local Ceiling Contractor

Acoustically Absorptive Panels

Meets EMP Protection Levels 1, 2, 3 & 4 for Infrastructure RF Shielding

EMP pdf EMP Levels

Codes & Certificates

Independent EMC Test Lab IEEE-299 : 2006 Tested

Most Products Tested to IEEE-299 : 2006 9KHz to 40GHz

Class A Fire Rated per ASTM E-84 with a zero smoke development / zero flame spread

Average RF Shielding Effectiveness: 60dB to 10GHz

Tegular Noise Reduction Coefficient (NRC): 0.70 (70%)

Meets the Intelligence Community Directive. Number 705. Sensitive Compartmented Information Facilities (ICD 705) TEMPEST or EMSEC Requirement

Made in the USA

Buy American Act Compliant


Xalon X8000(T) RF Shielded Ceiling Panels

Technical Information

Xalon RF X8000 ® & X8000T ® Panels

Fire Rating: Class "A" per ASTM E-84

Finish: Mill Finish Aluminum

Tegular: White Nonwoven Polyester

Tegular Density: 3.1# polyester core

Tegular NRC: 0.70

Average Shielding Effectiveness: 60dB to 10 GHz

Sizes Available

Standard Ceiling Panel 2' x 2' & 2' x 4'

Approx. 1.125" Total Thickness

Weight X8000 Panel 4.5 & 9 lbs. (2x2,2x4)

Weight X8000T Panel 5.375 & 10.75 lbs. (2x2,2x4)

Replaces the X9000(T) panels

Ideal for ICD 705, 60dB, SCIF Rooms

Patent Pending

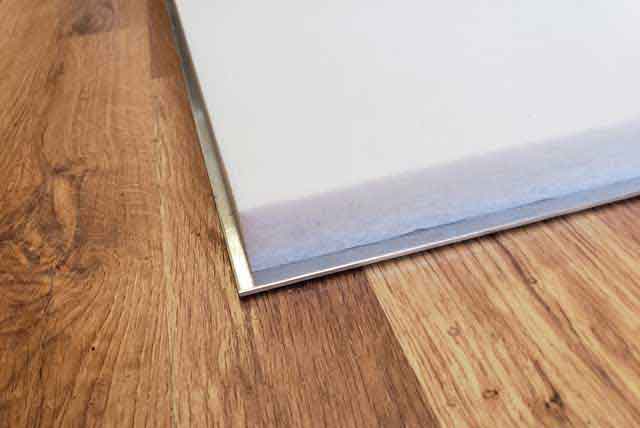

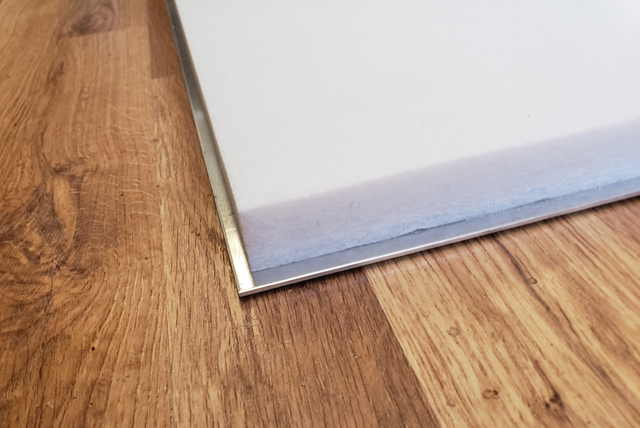

X8000 X8000T

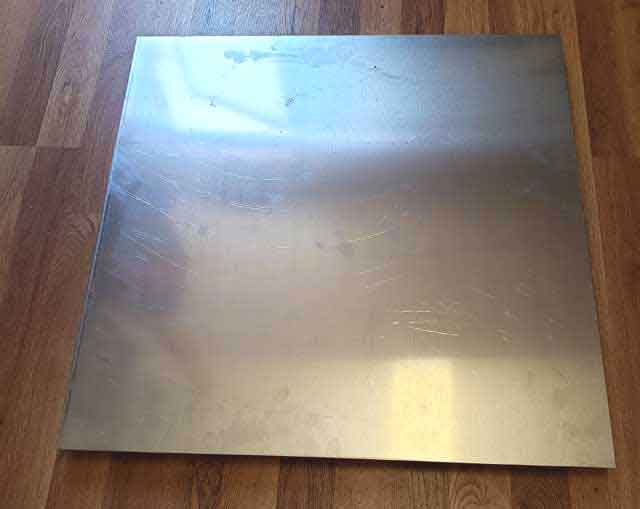

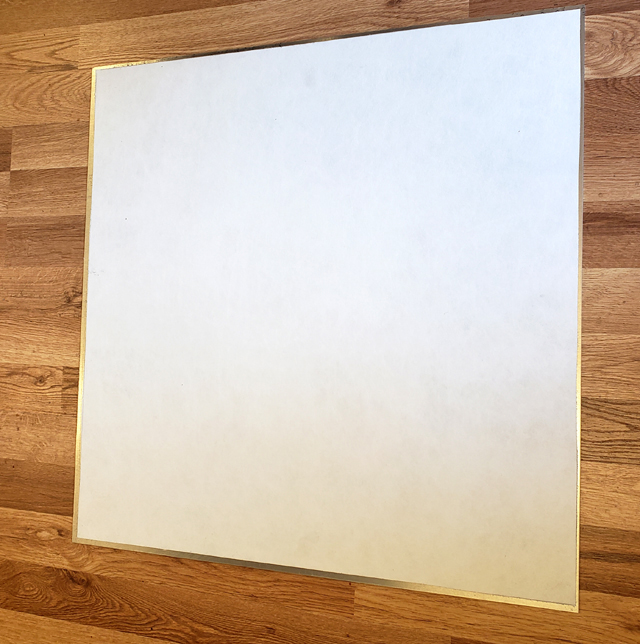

X8000 Bare RF Shielded Ceiling Panel

Standard Bare Aluminum

Tegular Panel (Untapped)
Xalon X8000 EMI Shielded Ceiling Panel

Example White Facia Attached

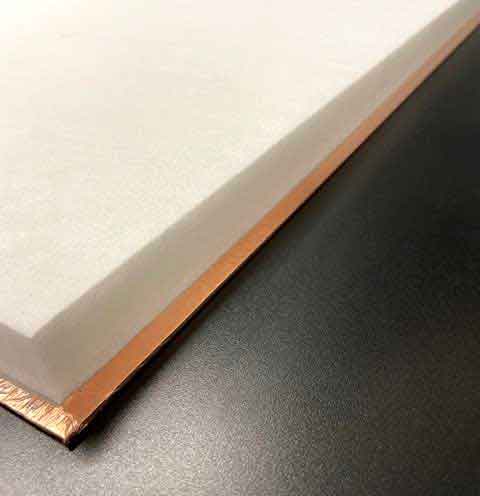

Tegular Panel (Tapped)

The X8000 Panels come as bare aluminum, you can paint them or add whatever interior face material you wish. Tegular Polyester Board Class A

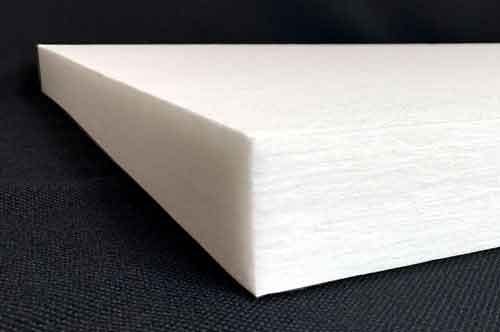

  Tegular Board
Only Available in White
Installation Installation

X8000T Data

Connecting Ceiling Grid to Wall Foil

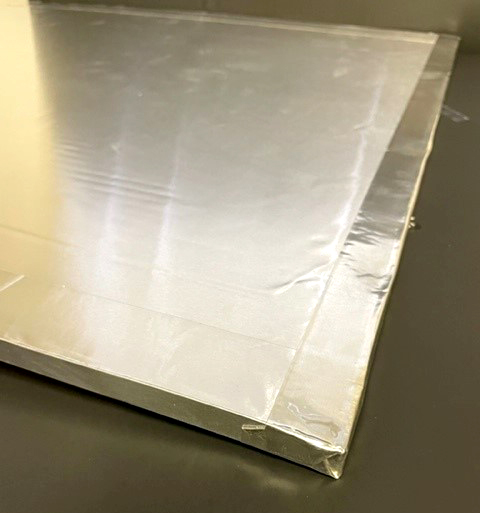

Xalon X5000 RF Shielded Ceiling Panels

Technical Information

Xalon RF X5000 Panel

Weight: 0.35 lbs/ft²

Density: X5000 (6-7#)

5 mil Aluminum foil on all sides

Fire Rating: Class "A" per ASTM E-84

Dimensionally Stable Core

R Value: 2.5

STC Value:

Average Shielding Effectiveness: 60dB to 10 GHz

Sizes Available

Standard Ceiling Panel 2' x 2' & 2' x 4'

1" overall thickness

Use Your Own Acoustic Panels

Finish: Mill finish aluminum foil

Fiberglass Core: X5000

Xalon Electrically Conductive Seaming tape (see below)



Xalon X5000 RF Shielded Wall Panels Shielding Effectiveness

Xalon X5000 SE Chart
Data

Panel Specifications


Xalon X55 RF Shielded Ceiling Panels for Suspended Ceilings

The Xalon X55 RF Shielded Ceiling Panels for Drop In Ceiling Grid Systems

Can be installed above your existing standard or tegular acoustic ceiling panels

Go for a whole new look with LED linear lighting

Technical Information

Xalon RF X55 Panel Ceiling Panel

Weight: 0.31 lbs/ft²

5 mil Aluminum foil on all sides

Fire Rating: Class "C" per ASTM E-84

R Value: 1.0

STC Value:

Average Shielding Effectiveness: 60dB to 10 GHz

Sizes Available

Standard Ceiling Panel 2' x 2' & 2' x 4'

1/2" overall thickness (Nominal)

Use Your Own Acoustic Panels

Recycled Content: Documented 62% recycled content comprised of 27% post- consumer and 37% pre consumer

Finish: Mill finish aluminum foil

Cardboard Core: X55

Xalon Electrically Conductive Seaming tape (see below)





RF Shielded Suspended Ceiling

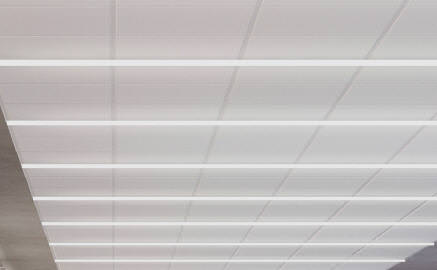

Xalon X55 Panels with LED Linear Lighting

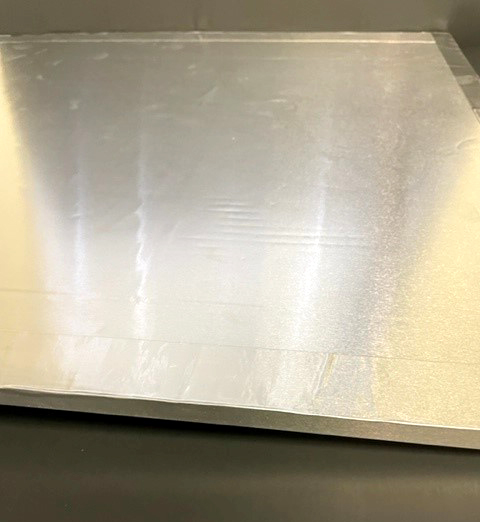

X55 RF Shielded Ceiling Panel

Xalon X55 RF Shielded Ceiling Panel Before Installation

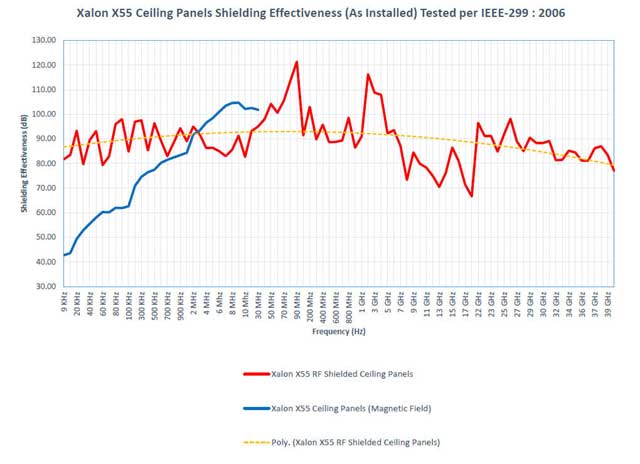

Xalon X55 RF Shielded Ceiling Panels Shielding Effectiveness

Xalon X55 Ceiling Panel SE Chart
Data

Installation


Xalon RF Shielded ST Aluminum & Copper Seaming Tape

Foil RF Shielding Tape
Open the RF Shielded Foil Tape Webpage

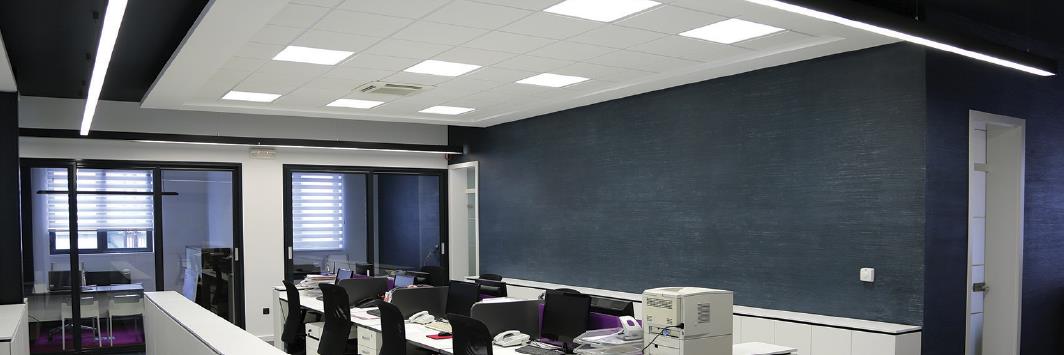

Xalon RF Shielded LED Flat Panel Light Fixtures

2' x 2'  2' x 4'

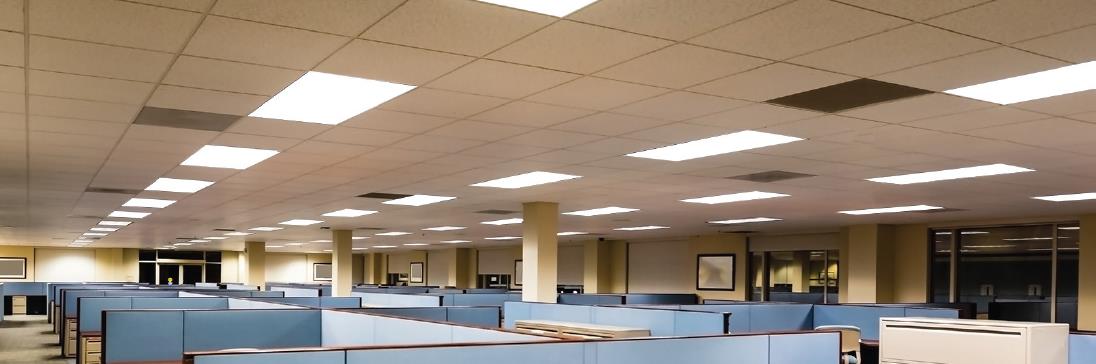

RF Shielded LED Lights  RF Shielded Suspended Ceiling Lights
Data  Data
For RF Shielded Suspended Ceiling Systems.
Available in 2x2, and 2x4.
Average 60dB from 10MHz to 10GHz

FEATURES
The RF shielded, XLLF-2x2 and XLLF-2x4 provides a modern alternative to traditional fluorescent troffers.
Backlit design delivers unmatchable uniform light distribution.
Easily adjust brightness level (multi-lumen) 4000/ 5000/ 6000, via switch on fixture.
Easily adjust color options (multi-CCT) 35K/ 40K/ 50K, via switch on fixture.
Perfect for offices, SCIFs, medical, conference rooms, military, among other applications.
MOUNTING
Easy to install. Mounting hardware included and ready to install.
Four corner tie points and built-in earthquake clips come standard.
DRIVER ELECTRICAL INFORMATION
Powered by high-quality constant-current power LED drivers which are rated for 50 to 60Hz at 120/277V input.
Produce less than 20% THD, and have a power factor of 0.90 to 1.00.

Xalon RF Shielded Drop Ceiling Air Vents

RF Shielded Supply AIr Diffuser

Can be used as supply or return air
RF Shielded Air Diffuser RF Shielded Drop Ceiling Air Diffuser
Supply Air Diffuser

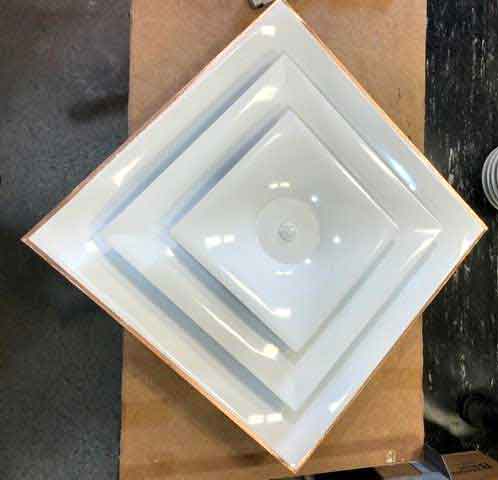

(front)
Supply Air Diffuser

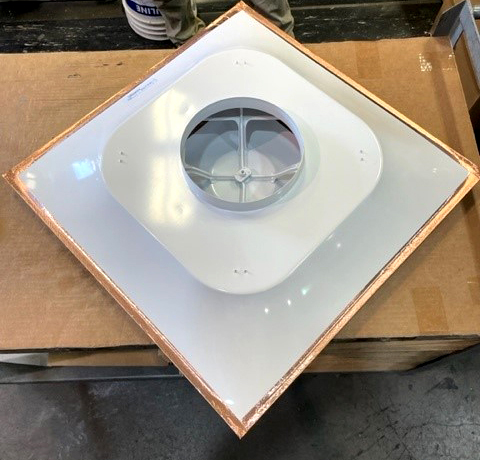

 (back side, honeycomb not installed)

RF Shielded Return Air Vent

RF Shielded Honeycomb Air Vent in Suspended Ceiling RF shielded air vent for drop ceiling
Return Air Vent Return Air Vent

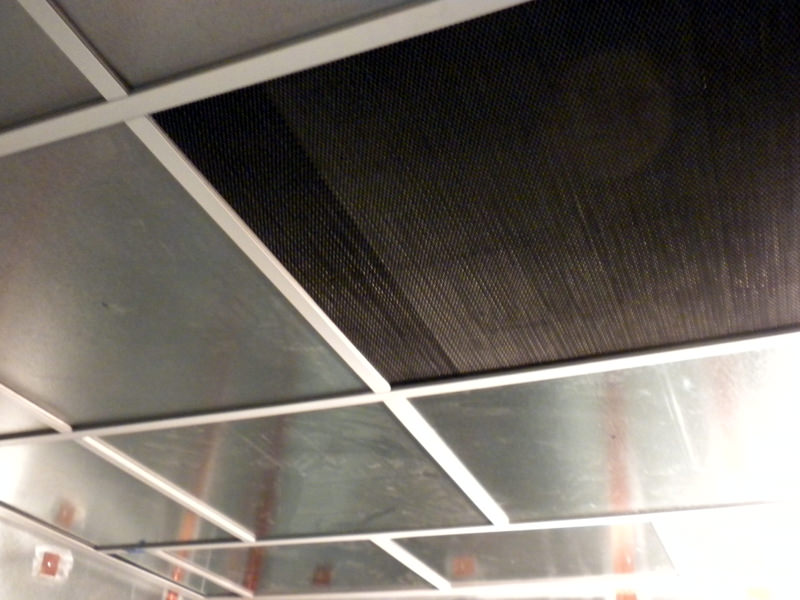

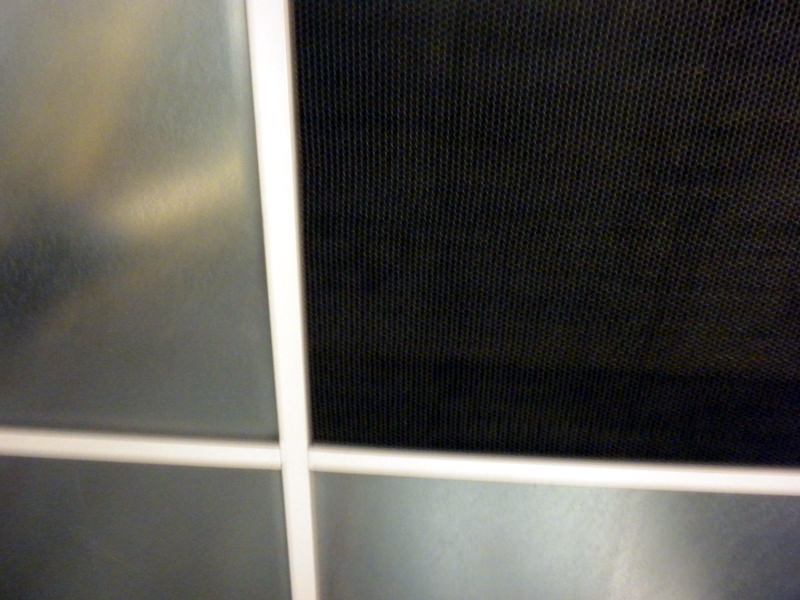

      In Suspended Ceiling with Bare (Mill Finish) Ceiling Panels
Only Available in 23.75" x 23.75" Size

X8000T Data

Recommended Shielded Suspended Ceiling Grid Systems

ACP Classic X Cliq

Armstrong Prelude ML (preferred)

Armstrong Prelude XL (preferred)

Armstrong Prelude XM (preferred)

CertainTeed Classic Aluminum Capped Stab System

CertainTeed Classic Environmental Stab System

For Retrofit. Most existing, commercial grade, suspended ceiling grid systems can be made to work


Electrically Conductive Silicone Adhesive (RTV)

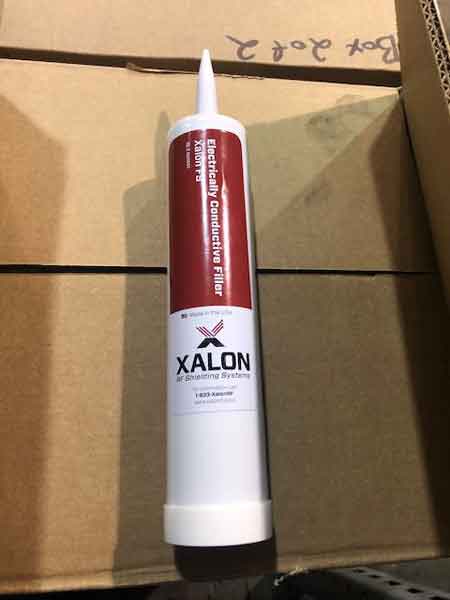

Xalon RF Shielding Conductive Silicone

Open the Recommended Adhesives & Fasteners Webpage
For RF Sealing the Ceiling Grid
