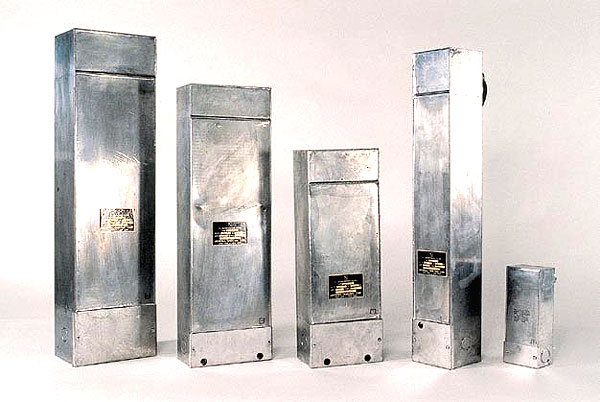

Universal EMI Power Filters


Universal Shielding Corp (USC) EMI (Electromagnetic Interference) Filters are designed to reject or pass selected frequencies or interference that are present on a power or signal line. USC EMI/RFI filters consist of only passive elements; inductors, capacitors, and in some cases resistors. Combinations are used to block EMI caused by electromagnetic induction (conducted emissions) or electromagnetic radiation (radiated emissions). When this unfavorable interference in located within the transmitted radio frequency range it is considered Radio Frequency Interference (RFI). USC EMI power filters are made with all metal housings to shield our filter output from exposure to any radiated interference.

Why you need an EMI Shielded Room Filter?

EMI/RFI power line filters are specially designed to prevent electromagnetic interference (EMI) with other devices by blocking the high-frequency signals associated with interference. The EMI/RFI filters block both incoming and outgoing interference, keeping your device running smoothly without disrupting other equipment. The EMI filter also maintains the shielding effectiveness of the RF shielded room, typically 100dB from 14KHz to 40GHz, in accordance with MIL-STD-220C. Additionally, the Universal EMI filters feature voltage ratings of 277/480 VAC at 60 Hz and current ratings of 1 to 800 Amps.

Jump To Facility EMI Filter Cabinets Webpage



In Stock Stand Alone Power Line Filters (2 Wire)

USC-3252 Analog Telephone

0.5 Amp

0 - 120 VAC, 0 - 100 VDC

0 - 400 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

5 lbs.

Data

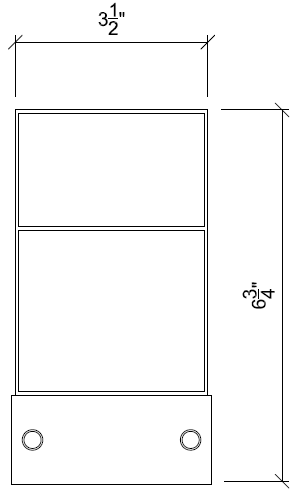

Telephone EMI Filter
USC-50-2x1

1 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

10 lbs.

Data

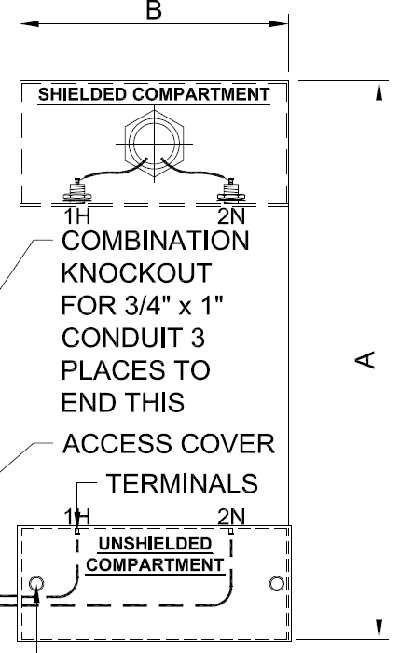

USC-50 EMI Filters

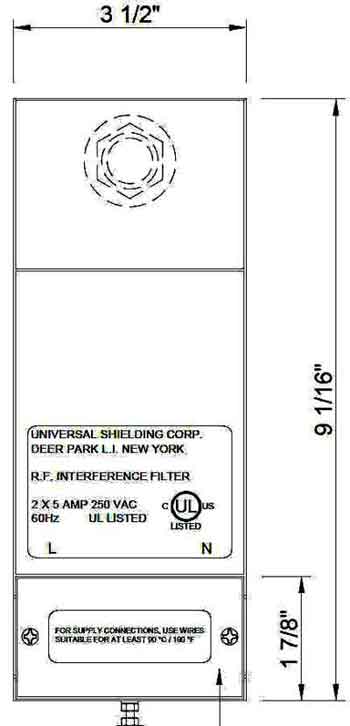

USC-50-2x5

5 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

10 lbs.

Data

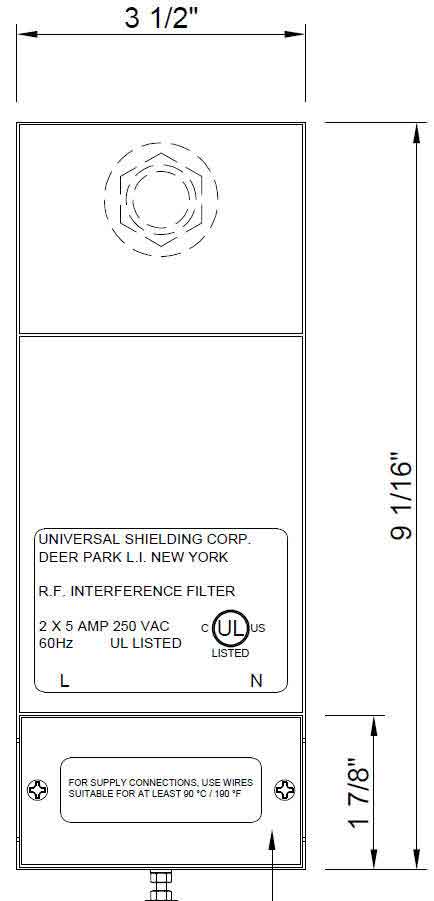

USC-50-2x5 Amp Filter
USC-50-2x30

30 Amp

0 - 277 VAC, 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

30 lbs.

Data

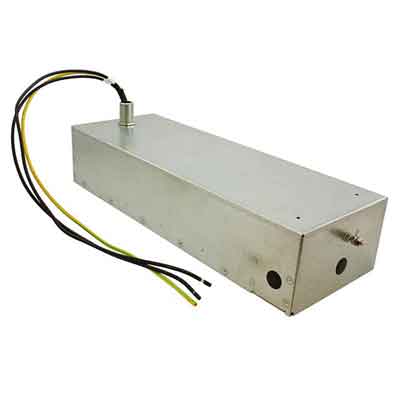

B84299D6300B003 EPCOS - TDK Electronics
USC-50-2x60

60 Amp

0 - 277 VAC, 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

45 lbs.

Data
B84299D6300B003 EPCOS - TDK Electronics

In Stock Stand Alone Power Line Filters (1 Wire)

USC-50-1x100

100 Amp

0 - 480 VAC, 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

45 lbs.

Data

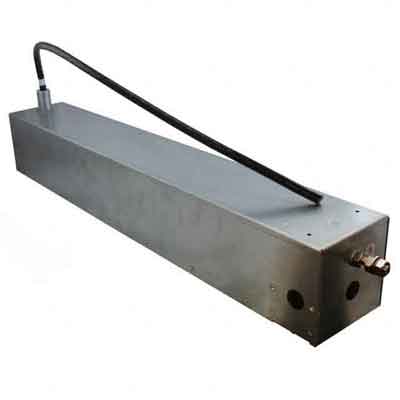

B84299D6101A003 EPCOS - TDK Electronics
USC-50-1x150

150 Amp

0 - 480 VAC, 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

60 lbs.

Data
USC-50 EMI Filters
USC-50-1x225

225 Amp

0 - 480 VAC, 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

60 lbs.

Data


B84299D6101A003 EPCOS - TDK Electronics

In Stock Stand Alone Power Line Filters (4 Wire)

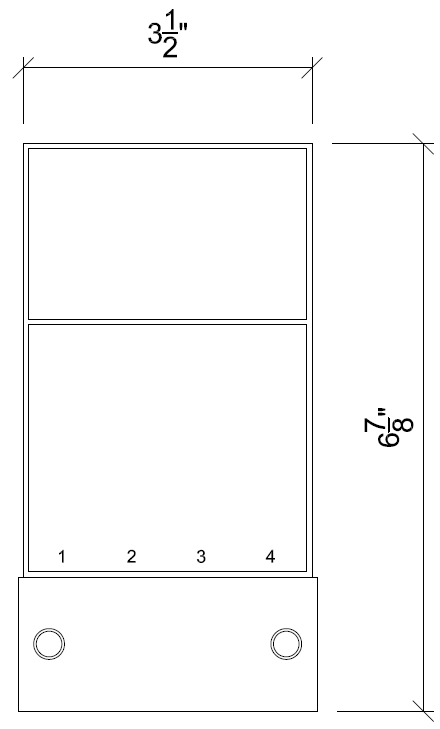

USC-50-4x1

1 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

5 lbs.

Data
4x1A EMI Filter

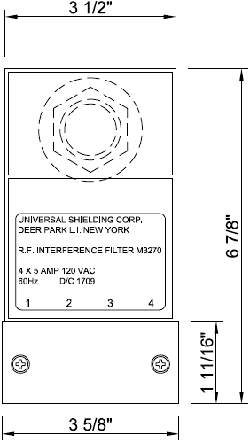

USC-50-4x5

5 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

5 lbs.

Data
USC 4x5 Amp Filter

In Stock Stand Alone Power Line Filters (> 4 Wire)

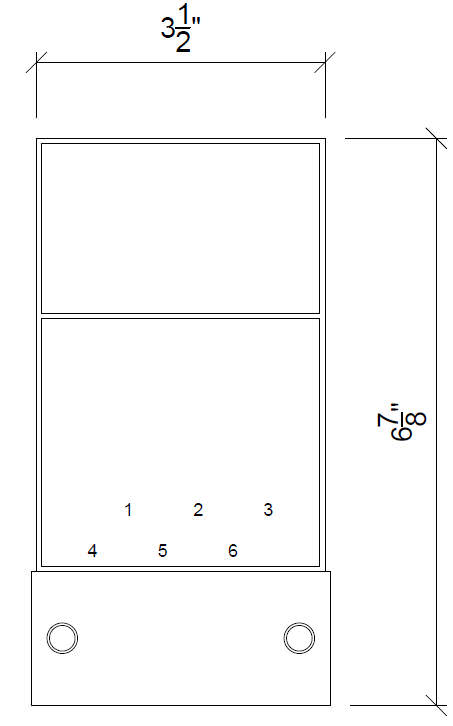

USC-50-6x1

Six (6) 1 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

5 lbs.

Data
USC-50-6x1 Filter

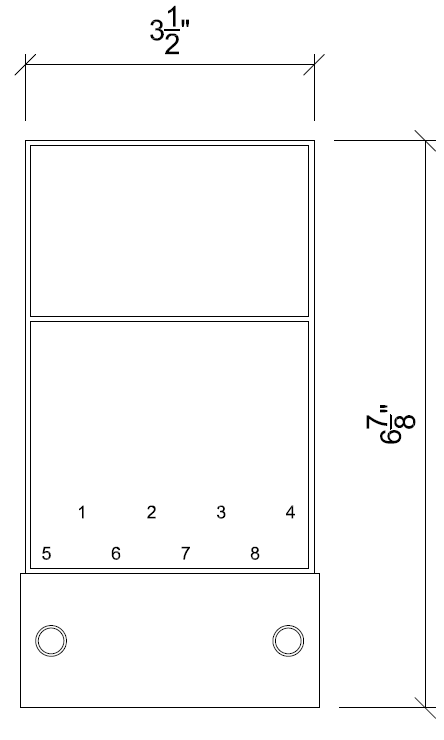

USC-50-8x1

Eight (8) 1 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

5 lbs.

Data
USC EMI Filter 6x1 Amp
USC-50-10x1

Ten (10) 1 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

5 lbs.

Data

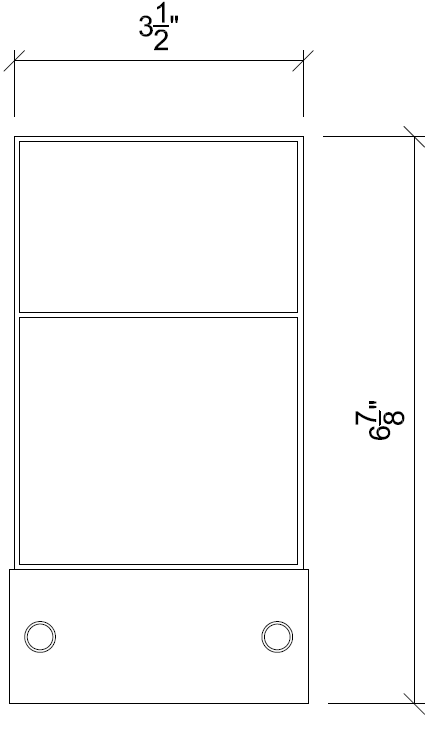

USC-50-10x1A EMI Filter
USC-50-8x5

5 Amp

0 - 277 VAC, 0 - 100 VDC

0 - 60 Hz

Insertion Loss 100dB
From 14KHz to 10GHz
Per MIL-STD-220C

Approvals for USA, Canada:
UL (listed) cUL (listed)

10 lbs.

Data

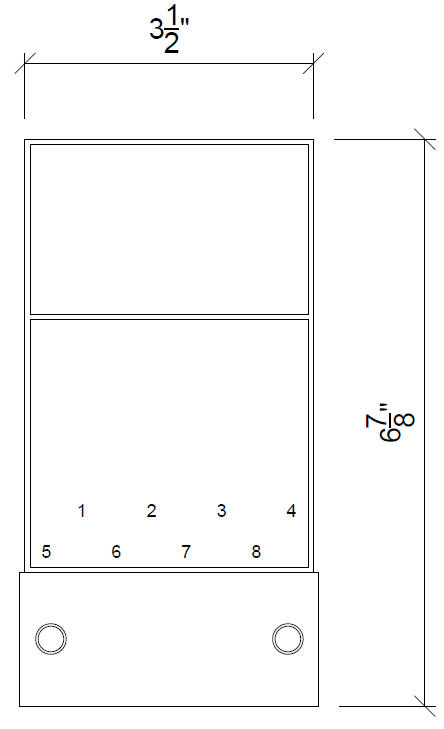

8x5A EMI Power Filter
