EMC Test Turntables


 Innco Systems  Frankonia



Innco systems EMC test turntables are designed to be installed for surface mounting, free space environments or integrated, as part of a raised ground plane floor system.  Innco systems have designs for both inside EMC Chambers or as part of an Open Area Test Site (OATS). The turntable top cover plates are available in plastic, sealed multilayer wood or stainless steel.

The turntable connection panel (CP) can be mounted in the center or at a position to be agreed. Standard power supplies, connectors or custom specific supplies can be provide, which can also include cable management systems (energy chain).

High performance electric continuity in ground plane floors during rotation is achieved using a proven copper connection system.

Our solutions provide optimized EMC performances, using specially design shielded drive units, which provide the required 20dB below the limit line of CISPR 22 Class B.

Innco Full Turntable Catalog


Available in Central & South America



Index

Controllers

Flush Mount Turntables

Surface Mount Turntables


Innco Flush Mount EMC Test Turntables

Innco Systems

Turntable DT

DT2000



DT3000



DT5000

The DT2000 turntable is specifically designed for installation either at intermediate levels in electromagnetic absorption chambers or in open areas. The base plate is available in stainless steel.

If a ground plane exists, and the carrying plate is made of steel, then the adapter contact ring with a quadratic rim can be supplied. A 0,2 m diameter opening in the centre of the turntable provides the capability to insert a power supply for testing.

The IEEE 488 (GPIB) bus, when operated with the CO2000 Controller, or IEEE 488 (GPIB) & TCP/IP (LAN)interface, when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of stainless steel
  • 2.0...10.0 m diameter
  • 1000 kg...20.000kg load

Dual Turntable DDT

DDT5000-2500



DDT6000-2000


Dual turntable is designed for flush mounting into a raised floor, with stainless steel carrier plates on galvanized steel structure, stainless steel environment and high efficient contacting with copper beryllium hollow core tube.

Both rotating areas are designed concentric and can be driven separately without mechanical locking/unlocking.

The drives are shown and driven as separate units form controller.

Key Facts

  • Top plate made of stainless steel
  • 3.0...10.0 m diameter
  • 1000 kg...20.000kg load

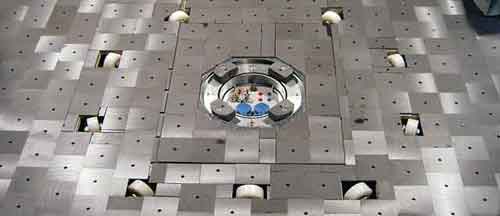

Turntable DS-HE

DS1200-HE



DS1500-HE



DS2000-HE


The DS1200-HE turntable is specifically designed for installation either at intermediate levels in electromagnetic absorption chambers or in open areas. The base plate is available in waterproof, laminated and lacquered wood (30 mm thickness).
A 20 cm diameter opening in the centre of the turntable provides the capability to insert a power supply for testing.

The IEEE 488 (GPIB) bus,when operated with the CO2000 Controller, or IEEE 488 (GPIB) & TCP/IP (LAN) interface, when operated by CO3000Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of wood
  • 1.2...2 m diameter
  • 300kg...500kg load

Turntable DS-S

DS1200-S



DS1500-S



DS2000-S



DS3000-S

The DS1200-S turntable is specifically designed for installation either at intermediate levels in electromagnetic absorption chambers or in open areas. The base plate is available in stainless steel.

If a ground plane exists, and the carrying plate is made of steel, then the adapter contact ring with a quadratic rim can be supplied. A 0,2 m diameter opening in the centre of the turntable provides the capability to insert a power supply for testing. Removable braces can be installed if necessary.

The IEEE-488 (GPIB) bus, when operated with the CO2000 Controller, or IEEE 488 (GPIB) & TCP/IP (LAN)interface, when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of stainless steel
  • 1.2...2 m diameter
  • 500kg...1000kg load

Turntable DS-HA

DS1200-HA



DS1500-HA



DS2000-HA

The DS1200-HA turntable is specifically designed for installation either at intermediate levels in electromagnetic absorption chambers or in open areas. The base plate is available in waterproof, laminated and lacquered wood (30 mm thickness).
A 20 cm diameter opening in the centre of the turntable provides the capability to insert a power supply for testing.

The IEEE 488 (GPIB) bus, when operated with the CO2000 Controller, or IEEE-488 (GPIB) & TCP/IP (LAN)interface, when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of wood
  • 1.2...2 m diameter
  • 300kg...500kg load

Frankonia



FTM Series



Flush Mount Turntables



Flush Mount EMC Turntable



Data

Features

Revolution speed up to 14 m/min, adjustable in 30 steps.
Slewing range from +200° to -200°
Accuracy of 0.1°/0.2°
Resolution of 0.1°

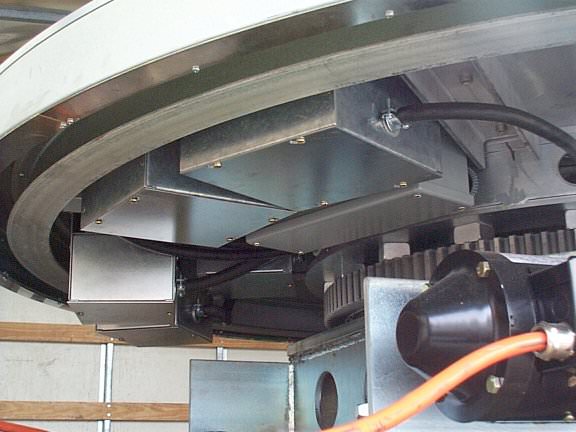

Shielded drive unit.
Variable installation height for integration into raised floor or pit.
Equipped for MIL-STD 461 F

4' (1.2m) to 13' (4.0m) Diameters are Standard

Other Sizes Are Available

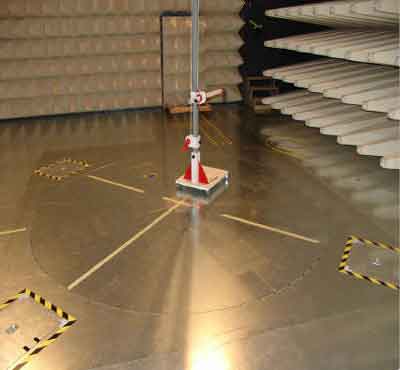

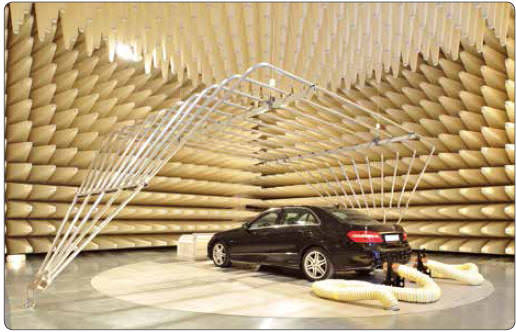

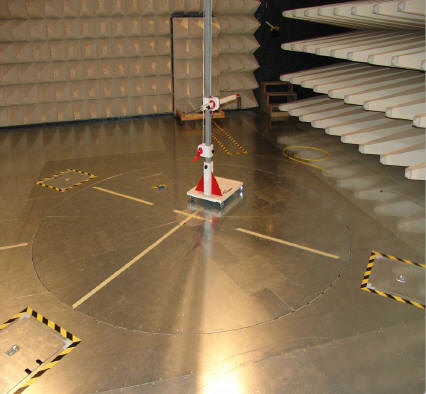

Frankonia Flush Mount EMC Test Turntable

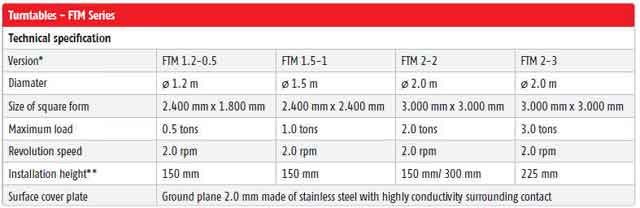

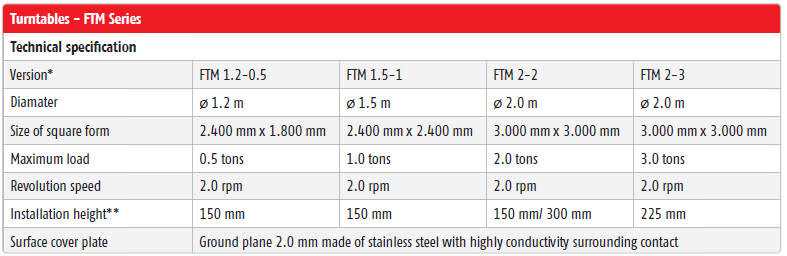

Flush Mount Turntables Standard Models

Frankonia EMC Turntables

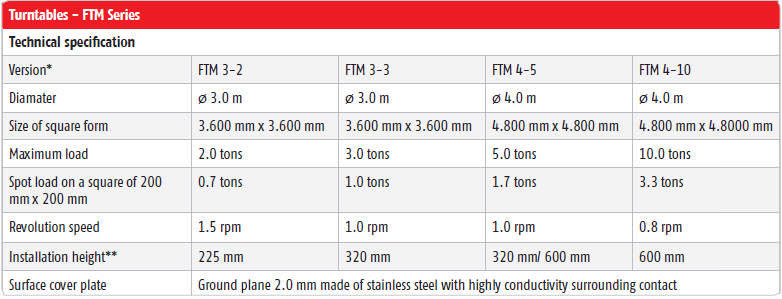

Frankonia Large EMC Turntables

EMC Turntable Options

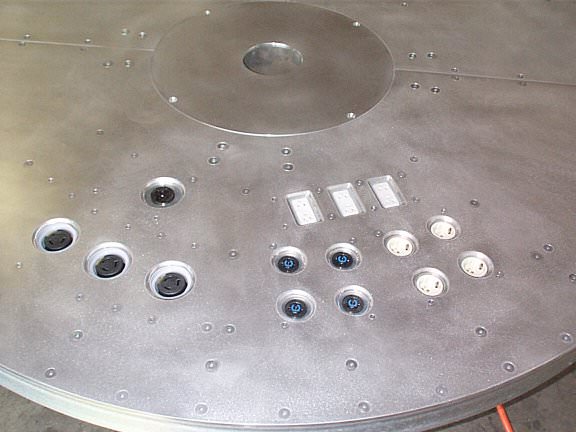

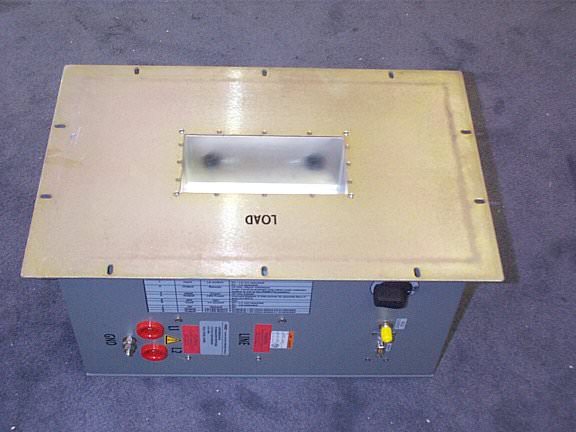

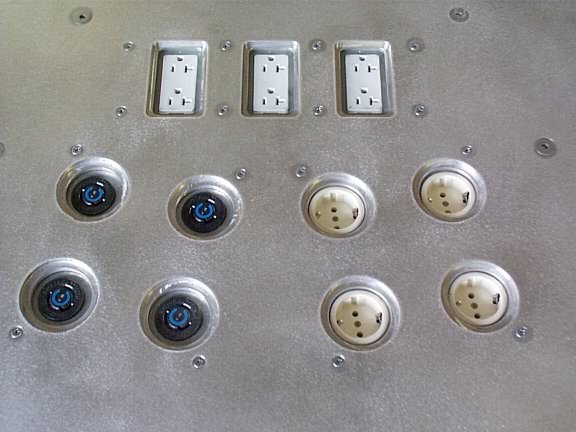

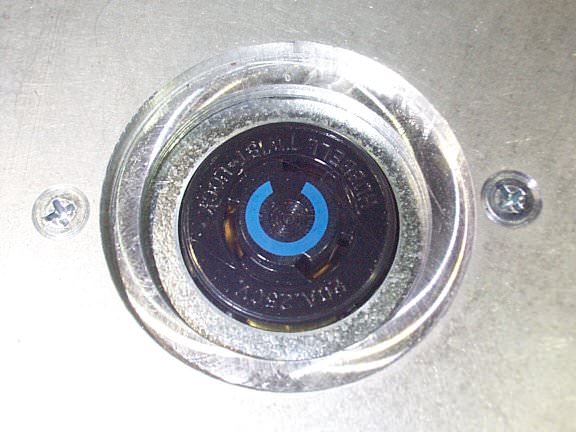

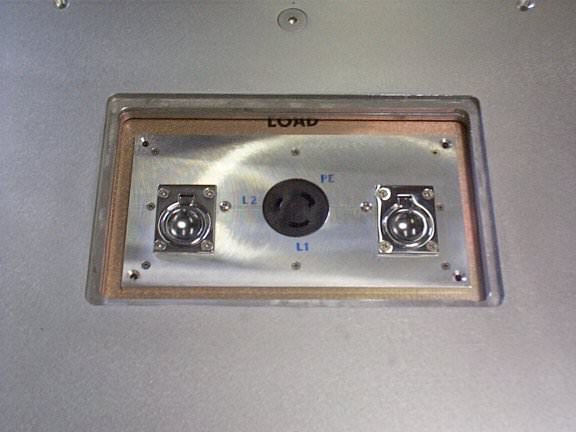

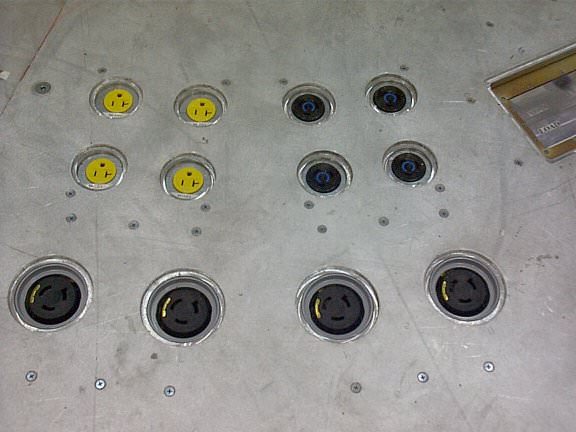

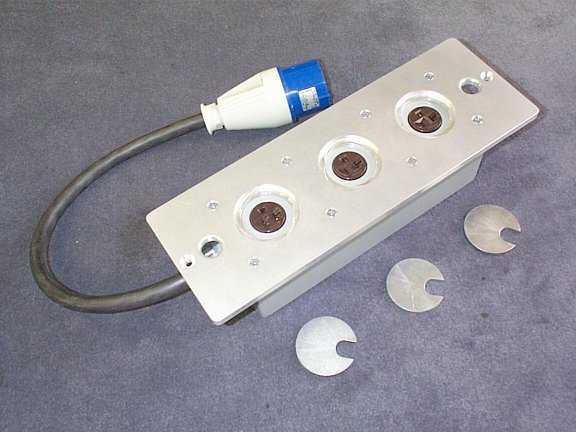

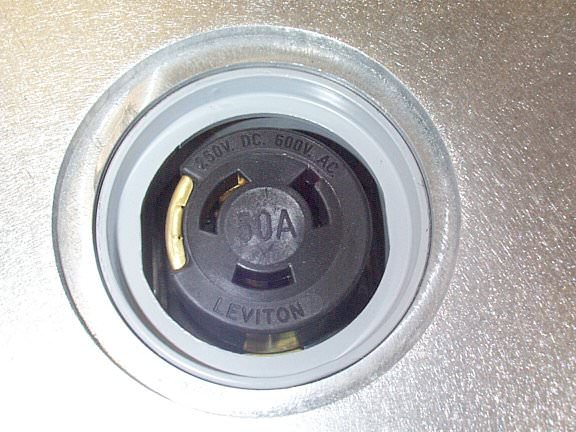

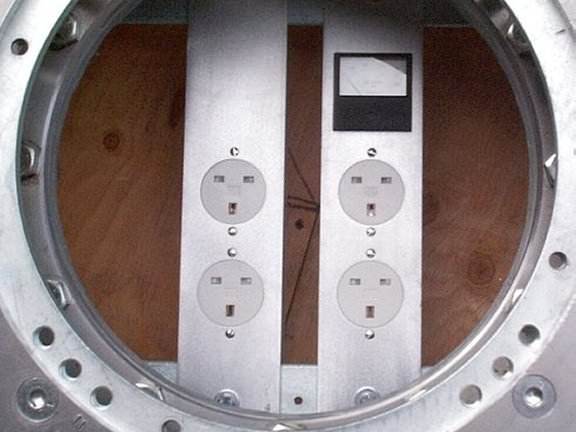

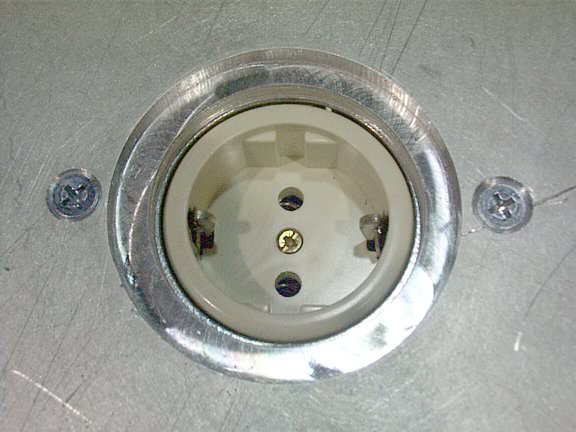

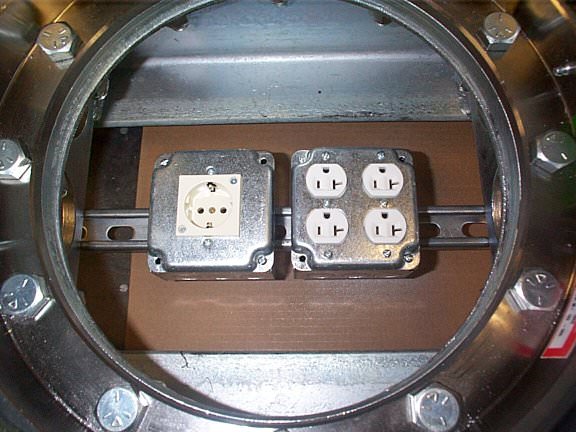

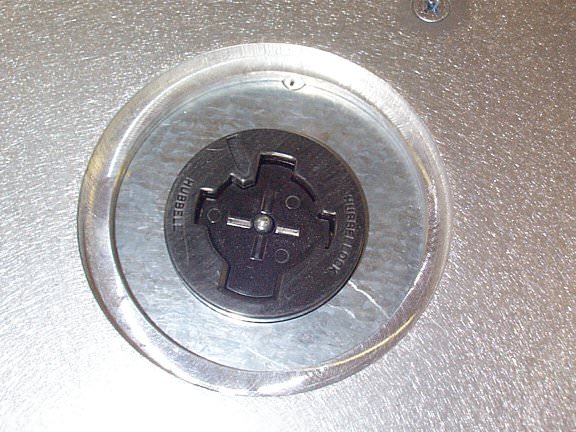

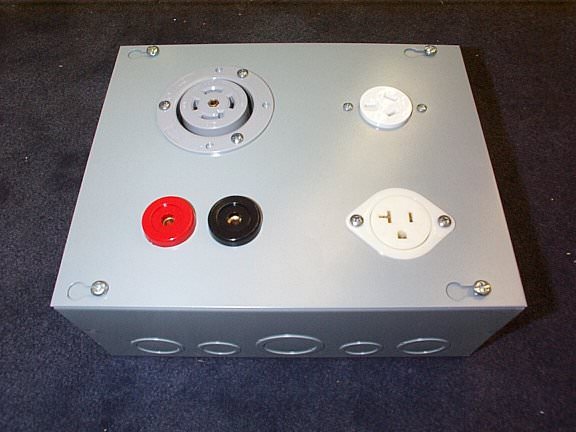

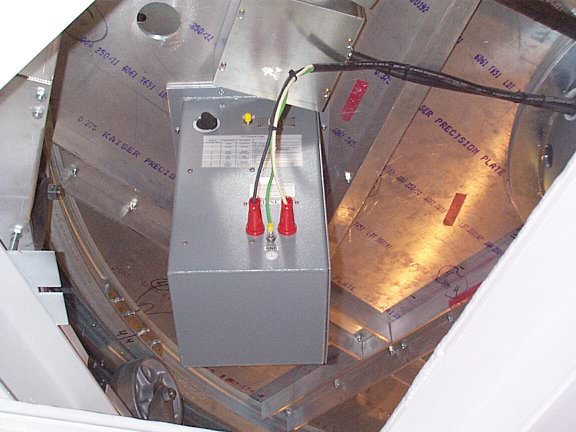

LISNs and Power Receptacles

EMC Test Turntable Option

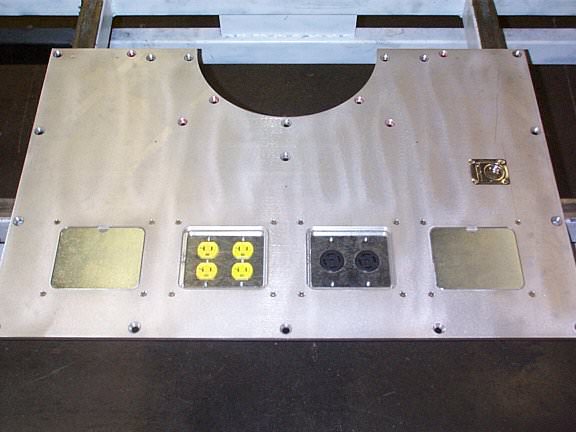

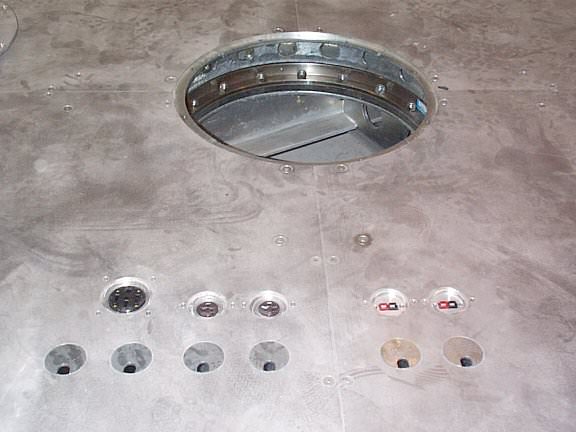

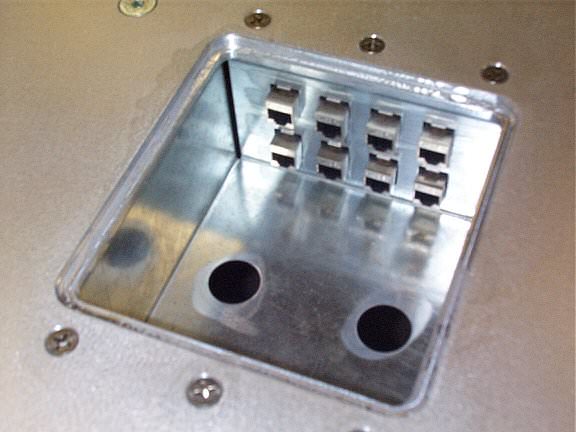

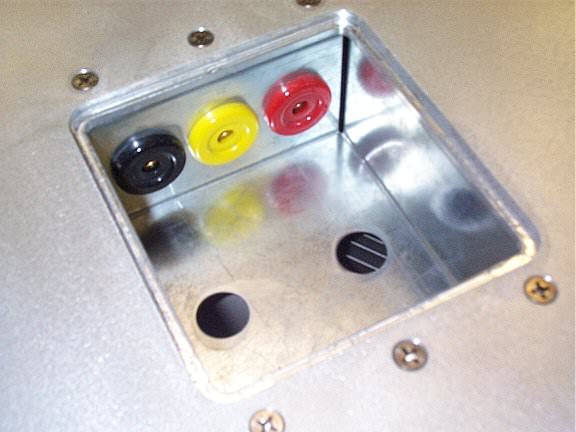

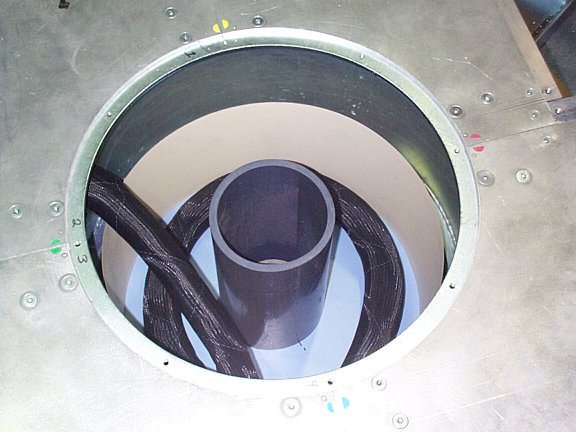

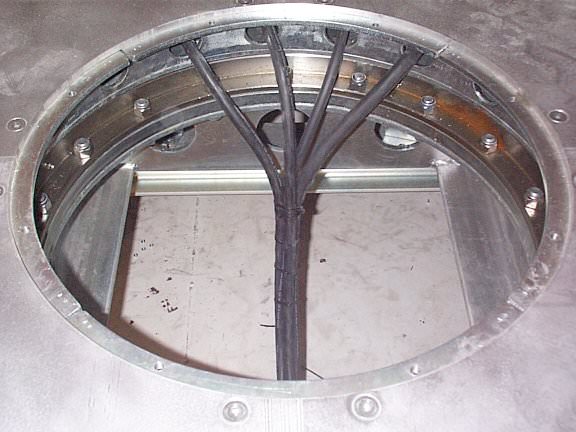

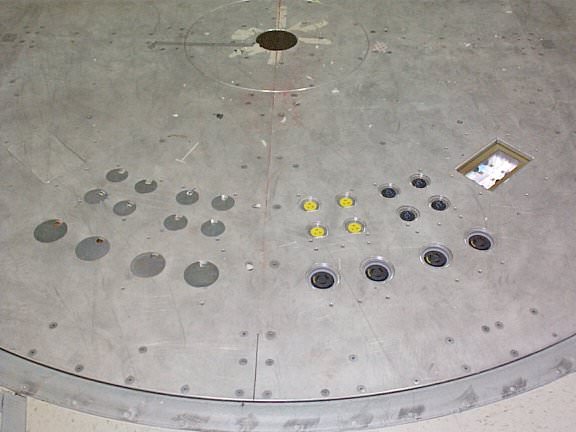

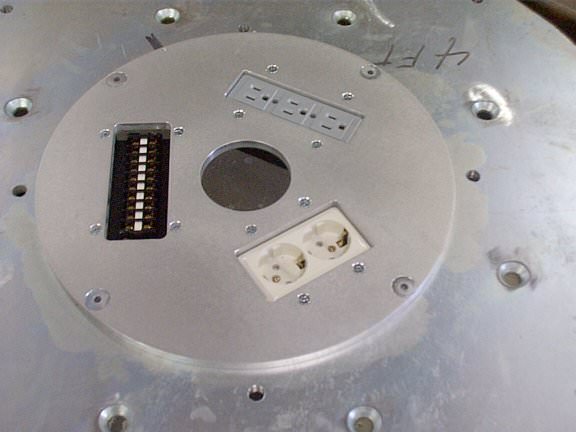

Central connection panel (CP) (300 mm), equipped with sockets and set of connectors.

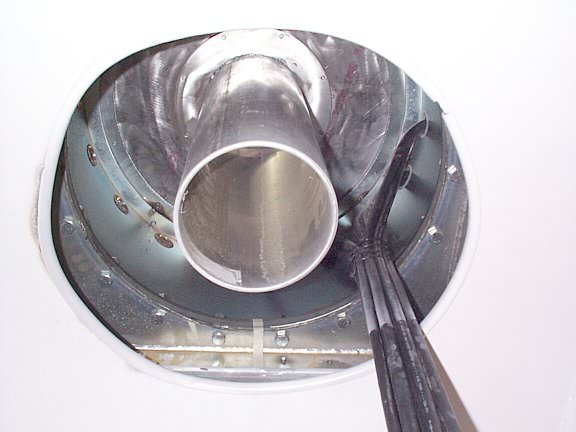

Integrated exhaust system.

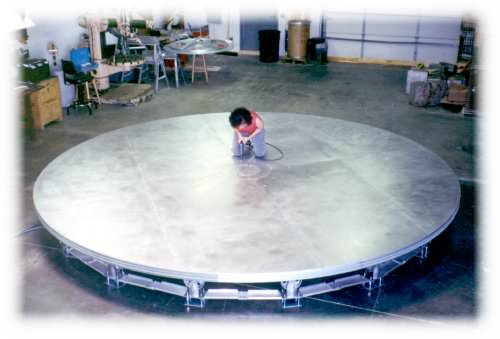

Heavyweight turntables.

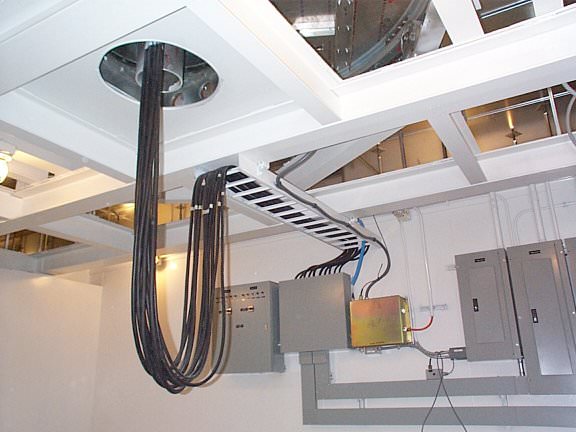

Customization, e.g., to carry special equipment under the floor.
Integrated energy chain for electric or data line.

Innco Surface Mount, Mobile, Wireless & EMC Test Turntables

Innco Systems



Compact Table CTE

Free Space Turntable

Ideal positioner for Wireless Device Testing & Measurement


CTE0500

Catalog

Free Space Turntable

The CTE0500 is a compact and inexpensive turntable for test opjects up to 25 kg (55 lbs.). The height of the CTE turntable is easy adjustable by using a clamp on the centre-rod. The drive unit is located at the lower part and could be covered with floor-absorbers. The CTE0500 is dismountable and easy to transport. The options for the automatically control are the controller CO3000 or directly a PC via USB.

If ordered with PC Control, the CTE0500 will be delivered with small demo software written in Visual Basic, C++ or LabView.

The GPIB (IEEE-488) bus, when operated with the CO2000 Controller, or GPIB (IEEE-488) & LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of PVC
  • 0.5m diameter
  • 5kg...25kg load
  • 700mm...1100mm height extendable

Compact Table CT

CT0500



CT0800



CT1000

The CT0500 is a compact and inexpensive turntable for test opjects up to 25 kg (55 lbs.). The CT0500 is dismountable and easy to transport. The options for the automatically control are the controller CO3000 or directly a PC via USB.

If ordered with PC Control, the CT0500 will be delivered with small demo software written in Visual Basic, C++ or LabView.

The GPIB (IEEE 488) bus, when operated with the CO2000 Controller, or GPIB (IEEE 488) and LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of PVC
  • 0.5...1.0 m diameter
  • 25kg...100kg load

PVC Turntable KT

KT1200



KT1500

The KT1200 turntable with the exception of the drive unit is fabricated totally from plastic (PVC). A 145 mm diameter opening in the centre of the turntable provides the capability to insert a power supply for testing. Three (3) supplied insertable shafts enable to be laid up to 1,5 meters from the turntable center.

The IEEE-488 (GPIB) bus,when operated with the CO2000 Controller, or IEEE 488 (GPIB) and TCP/IP (LAN)interface, when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • Top plate made of PVC
  • 1.2 m...1.5 m diameter
  • 25 kg...100 kg load

Frankonia



FTM Mobile Turntable



Surface Mount Turntables

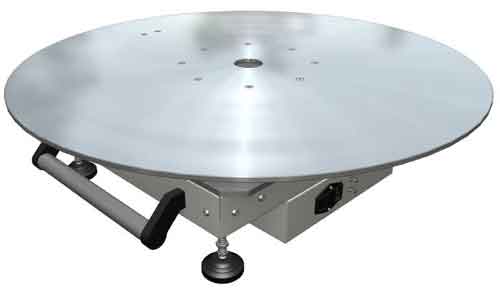

Mobile Surface EMC Turntable



Data


Frankonia's mobile turntable FTM is available in two sizes, FTM 0.6-0.3 and FTM 0.8-0.3. Both versions are designed to carry loads of up to 300 kg and to be used in anechoic chambers. Two handles are provided for easy transportation of this small turntable.
The interface is GPIB IEEE488.2, and the control is performed via duplex optical fibers.

Features
Rotational speed 0.5 rpm to 3 rpm, adjustable in 30 steps
Slewing range from +200° to -200°
Accuracy of 0.1°
Resolution of 0.1°
Shielded drive unit


Mobile Turntable - FTM 0.6-0.3/ FTM 0.8-0.3
Technical Specifications
Version FTM 0.6-0.3 FTM 0.8-0.3
Diamater Ø 0.6 m (1.97') Ø 0.8 m (2.62')
Maximum load 0.3 tons 0.3 tons
Height 205 mm (8") 205 mm (8")
Surface cover plate 8.0 mm aluminium 8.0 mm aluminum


Innco Turntable & Tower Controllers

Innco Systems Logo

Controllers

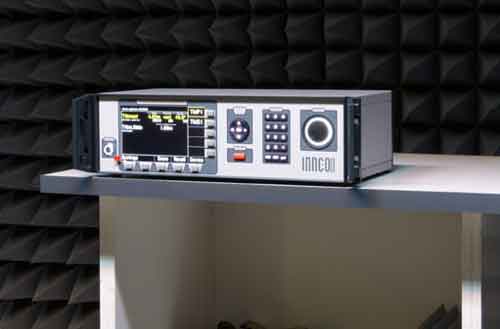

The introduction of our new CO3000 controller combines more than 20 years of experience, with research and development, taking into consideration feedback from existing new and existing customers. The intuitive design provides a 7" TFT display, allowing easy and precise operation in manual, semi-automatic and remote control mode.

The controller supports Innco and Innco-systems positioning devices, which are controlled via fiber optic cables. The GPIB (IEEE) and LAN (TCP/IP) ports add additional control methods and for future upgrades.

Innco also offers a Hand Control Unit (HCU) for use with up to 3 devices. The connection of the HCU can be by either fiber optic or wire cable.

Catalog


Innco Systems Logo

Innco PC-USB Controller

USB CONTROL (PC-USB)

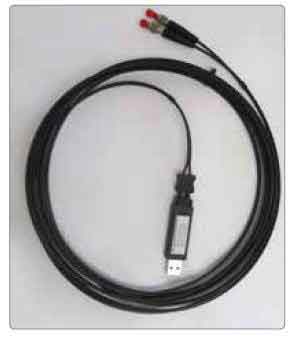

Innco PC-USB Controller w cable

DATA



INSTRUCTION MANUAL

USB CONTROLLER (PC-USB)

USB - Fiber optic converter

CONTROLS INNCO (MAST, TURNTABLE AND TURNUNIT-TURNDEVICE) WITHOUT HARDWARE LIMITS


  • Demo software in visual basic and C++ for the controlling of all functions of mast, turntable, antenna stands and turndevices.
  • Converter from USB to fiber optic.
  • dll-files and sourcecode for possibly of further processing of the software.
  • Must be able to write your own software code.

Frankonia

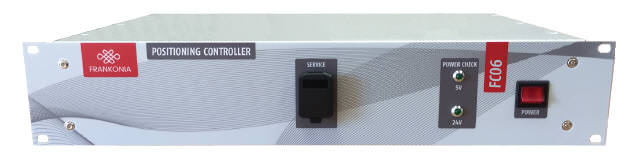

 System Controller



Model FC-06



Frankonia FC-06 Turntable Controller



Accuracy of 0.1°/0.2°

Resolution of 0.1°



Data

Features
Able to control up to six devices
19" rack mounting possibility
Easy and user-friendly software design.
Software updates via USB

Controller FC06 Technical Specification

Dimension (L x W x H) 482.6 mm x 284.5 mm x 88.9 mm
19" rack case, 2 RU
Weight 2 kg

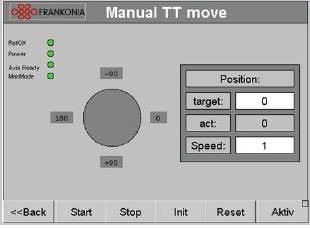

System Software

EMC Test Software
Frankonia's software for the FC06 runs on any Microsoft Windows operating system. The software offers two main functions to control and command:
Combination of up to 6 positioning devices.
Control of devices via optical signal.
Real-time position of each device
WebVisu software control for tablet, computers or any other mobile devices.
Full programmable functionality due to customer specific test scenario.
Preset a specific test procedure with loop function.
User-friendly interface

The software uses either a USB or GPIB interface to exchange control commands and to receive real-time position information.

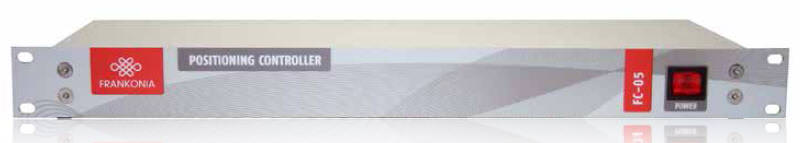

System Controller



Model FC-05



Frankonia FC-05 Controller



4 Channel



Data

Main Characteristics
Multi-Device Positioning Controller for simultaneous operation of up to four different positioning units.
Compatible with all new Frankonia antenna masts, turntables and other positioning equipment.
Compatible with industry standard software.
IEEE 488 (GPIB) and USB interfaces.
