TruProtect is a patented product that brings it all together: EMI / RFI Shielding, Insulation, Radiant Barrier, Sound reduction, Fire retardant, mold and mildew retardant, hail damage reduction,all of this while being environmentally friendly.

Shields Out RF & Microwave Interference

Easily cut

Helps safeguard against the devastating threat of fire

Provides a barrier against bothersome exterior noise

Defends roofs against the costly damage done by hail

Protects against the growth of health hazardous mold

Saves money and trouble with easy installation!

Lowers cost of building or homeowner's insurance.

TruProtect Can Contribute to LEED Certification

TruProtect Panel System Data Sheets

RF Shielding Data Sheet



 Radiant Barrier Data Sheet



Noise Reduction Data Sheet     Evironmental Friendly Data Sheet



Fire, Hail & Mold Data sheet



Click on Symbols for Data Sheets


TruProtect

Lightweight RF Shielded Panels

Part Number: RF40825P   4.0' x 8.0' x 1/4" Panel

≥ 60 dB from 100 KHz to 10 GHz

TruProtect RF Shielded Panels - 4� x 8� x ��

Panels joined using

3' wide, 5 mil Al tape with conductive adhesive

Front Only

Frequency

Attenuation (dB)

200 KHz, Magnetic Field

  25

200 KHz, Magnetic Field

  80

1 MHz, Electrical Field

  80

10 MHz, Electrical Field

  80

100 MHz, Plane Wave

  60

400 MHz, Plane Wave

  60

10 GHz Plane Wave

  60



Class A Fire Rated

R-value of 1, STC of 9

Also Available Laminated

to Sheetrock (Drywall) or OSB

Data



Brochure

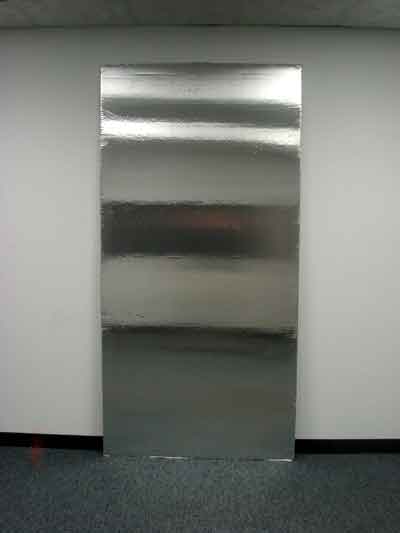

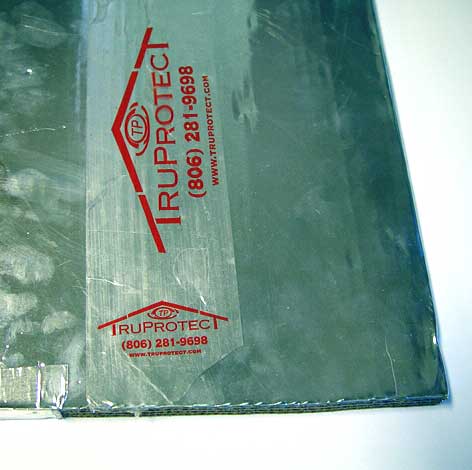

TruProtect Panel       Foil Shielding Panel



 RF Shielding Panel

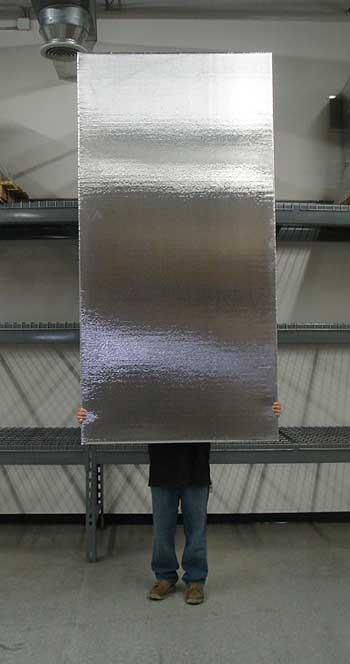

Lightweight & Rigid (One person can install)


TruProtect

Lightweight RF Shielded Panels

Part Number: RF40805P   4.0' x 8.0' x 1/2" Panel

Part Number: RF40812P   4.0' x 12.0' x 1/2" Panel

≥ 80 dB from 200 KHz to 10 GHz

TruProtect RF Shielded Panels - 4' x 8' x 1/2"

Panels joined using

3' wide, 5 mil Al tape with conductive adhesive

Front & Back

Frequency

Attenuation (dB)

200 KHz, Magnetic Field

25

200 KHz, Electrical Field

80

1 MHz, Electrical Field

80

10 MHz, Electrical Field

80

80 MHz, Electrical Field

100

400 MHz, Plane Wave

90

700 MHz, Plane Wave

100

1 GHz, Plane Wave

100

10 GHz Plane Wave

100



Class A Fire Rated

R-value of 6, STC of 19

Data



Brochure



TruProtect Foil Panel        TruProtect Panel Cut Away

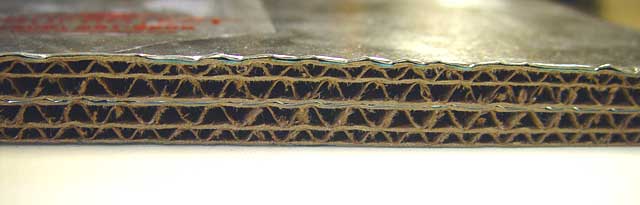

Cut Open to Show Construction

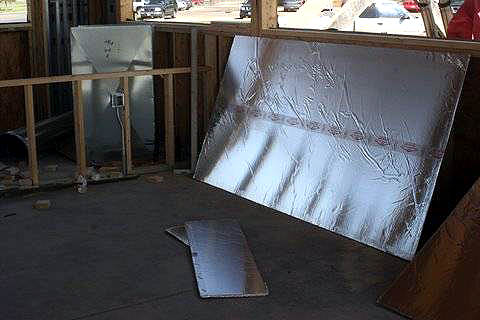

RF Shielded Panel Installation        RF Panel on Roof



RF Shielded Garage Door Panel

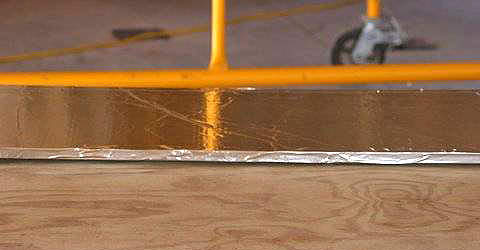

Full Panel & Standard Edge


TruProtect  Lightweight RF Shielded Panels

Part Number: RF54001P   4.0' x 8.0' x 1.0" Panel

Part Number: RF54121P   4.0' x 12.0' x 1.0" Panel

≥ 100 dB from 200 KHz to 10 GHz

TruProtect RF Shielded Panels - 4' x 8' x 1"

Panels joined using

3' wide, 5 mil Al tape with conductive adhesive

Front & Back

Frequency

Attenuation (dB)

200 KHz, Magnetic Field

25

200 KHz, Electrical Field

100

1 MHz, Electrical Field

100

10 MHz, Electrical Field

100

80 MHz, Electrical Field

100

400 MHz, Plane Wave

100

700 MHz, Plane Wave

100

1 GHz, Plane Wave

100

10 GHz Plane Wave

100



Class A Fire Rated

R-value of 12, STC of 25

Data



Brochure

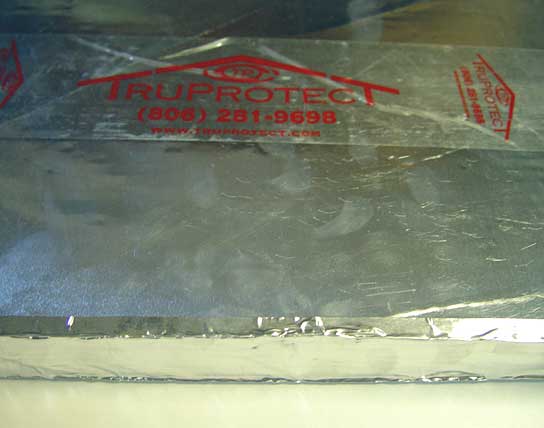

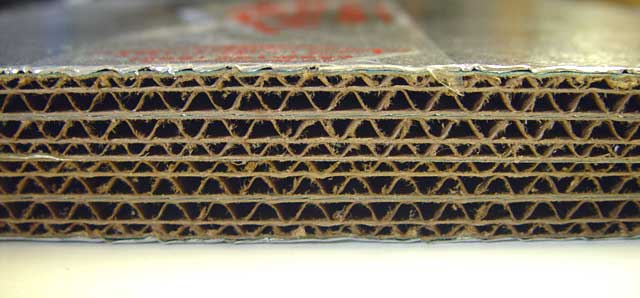

EMI Shielded Panel        EMI Shielded Panel Cutaway



TruProtect Panel Drawing

5 mil Aluminum Foil Tape

with conductive adhesive


TruProtect is a Patented Product with multiple uses:

Protection for: EMI/RFI Interference, hail damage, insulation, radiant barrier, fire retardant, noise reduction and mold, mildew, and fungus repellant. It is strong, durable, and resilient.

RF Shielding Panel

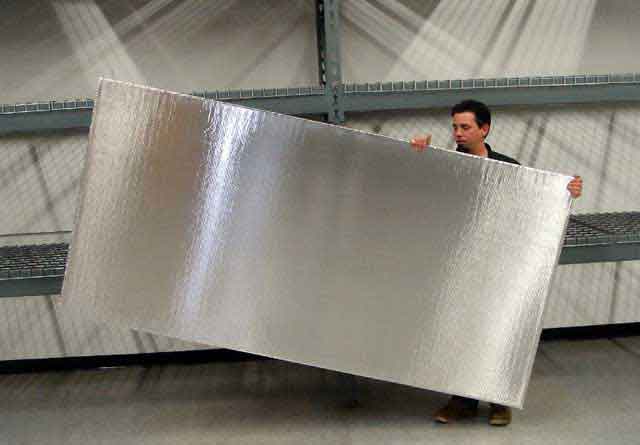

Made in convenient 4' x 8' x 1/2" panels, weighing only 17 lbs.

Made in convenient 4' x 8' x 1" panels, weighing only 34 lbs.

Applies directly to outer wall using construction adhesive

9 mils and three layers of Aluminum foil in the 1/2" thick panels

16 mils and three layers of Aluminum foil in the 1" thick panels

RF shield panels are joined together using 3" wide, 5 mil Aluminum tape with conductive adhesive

Saves time and labor over conventional shielding and even foil

Earth Friendly

Composed of 98% recycled materials

Enables owner to use 40% less resources (electricity, natural gas, coal) to heat and cool.

Insulation

1/2" panel has an R-value of 6 by itself

1" panel has an R-value of 12 by itself

Helps reduce the heat level in walls & attics enabling heating and cooling units to work less; savings in heating and cooling expenses range from 40-50%

Has 4 times the R-factor of fiberglass insulation

When used in conjunction with fiberglass insulation, TruProtect increases the fiberglass R-factor by about 98 % as shown in ASTM C 1363-97 and ASTM E903 tests

Multiplies the R-factor of existing insulation. When used with R-19 fiberglass, TruProtect accentuated the true R-factor to an R-49.5, and an R-25 is raised to an R-61.38

Stops heat-to-cold transfer by 97.3%

Reflects 98% of applied heat as shown in ASTM E903

One architect's description of TruProtect was, "It's a radiant barrier on steroids."

Fire Retardant

Fire resistant; holds an ASTM E84-04

Class A fire and smoke rating

Mold, Fungus, and Mildew Growth Proof

Tested by ASTM D-3273-94 standards, TruProtect was exposed to mold, fungus, and mildew causing agents for 30 days. The final score was a perfect 10 out of 10, indicating zero growth.

Noise Reduction

Natural sound barrier; highest possible STC of 19 (OITC of 15) for 1/2" material by itself.

STC of 51 (OITC of 35) using 1" material in a normally constructed 8.0" wall.

Reduces noise pollution



Hail Damage Reduction

Protects roof from hail damage. UL 2218 Class 4 hail test shows 50% less surface damage and 100% less structural damage in comparison to a roof without TruProtect.

Installation

Made in convenient 4' x 8' x 1/2" sheets and 4' x 8' x 1" sheets

Weighs 17 pounds per 1/2" sheet and 34 pounds per 1" sheet

Costs less than fiberglass insulation

Easily installed with no environmental or worker problems

Can be made with adhesive backing so no fasteners are needed

Reflects 98% of the applied heat as shown in ASTM test

Has a 450 pound busting strength


Applications

  • Government, Military and Commercial Secure Facilities

  • Medical Laboratories and Examination Rooms

  • EMC, RF & Wireless Test Laboratories

  • RF Shielded Test Chamber

  • Secure Conference Rooms

  • SCIF Facilities

  • Recording Studios

  • Anechoic Chambers

  • Computer Rooms

  • Office Rooms

  • Secure Buildings

Conforms to or exceeds all applicable IBC codes. In addition to the mentioned tests, methods, and results, the material is in agreement with IBC Sections 1504.6 (impact resistance), Sound Transmission Section 1206, Fire Partitions Section 708, and Fire Resistance Section 705.


TEST SPECIFICATION

RESULTS

MIL-STD-285

Shielding Effectiveness

See tables above

UL 2218

Impact Resistance of Roof Coverings

50% less surface damage

100% less structural damage

ASTM C 1363-97

Thermal Performance Test

Thermal resistance Rs - 1.61 (hr.ft.sq.)/Btu

Conductance Cs - 0.62 Btu/hr.ft.sq.F

ASTM E903

Hemispherical Spectral Reflectance

81.5 % Solar Reflectance

ASTM E408-71

Total Emittance Test

.02 Emittance

.98 Reflectance

ASTM E84-04

Surface Burning Characteristics

Flame Spread Index=25

Smoke Developed Index=20

ASTM E90

Sound Transmission Loss Test

ASTM D-3273-94

Resistance to Growth of Mold

Thickness 4"

STC 19; OITC 15

Total assembly thickness 8"

STC 51; OITC 35

TruProtect scored a perfect 10


RF Shielded Ceiling Panels

TruProtect Lightweight RF Shielded Ceiling Panels

2.0' x 4.0' x 1/2" Panel

≥ 60 dB from 30 MHz to 10 GHz

Class A Fire Rated

Brochure



Installation



Panel side view

Cutaway of Panel

Finding solutions to problems is how TruProtect originated. They are also the same problem solving skills that led to the development of a new product for TruProtect.
Many office buildings have dropped ceilings with tiles made of mineral fiber or fiberglass.
These tiles are porous, collect dust, have minimal insulation and sound proofing, and make a complete mess when installing and replacing.
Surely there had to be a better product.

Enter TruProtect's new ceiling tiles to solve these problems.

Each tile is the original TruProtect with an added polypropylene cover that is remarkably durable and visually appealing.

Without the hassle of remodeling, an office can now add the benefits of TruProtect.



New FRP Panels (Smooth White is Standard)

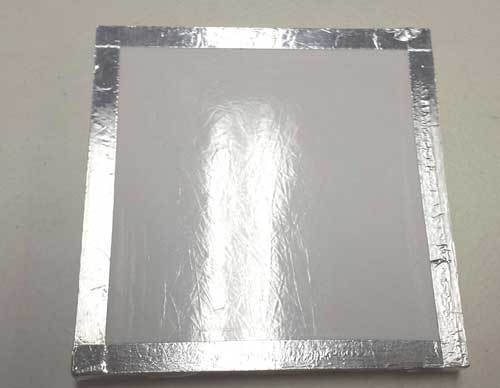

Smooth White FRP

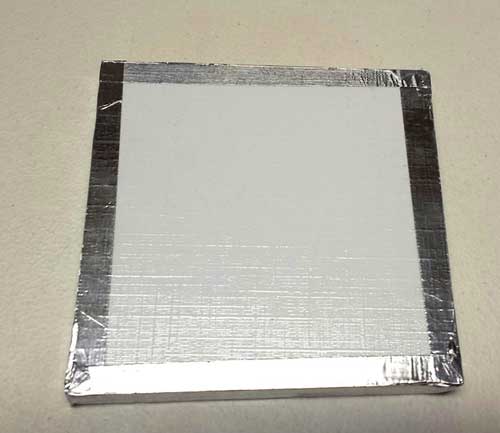

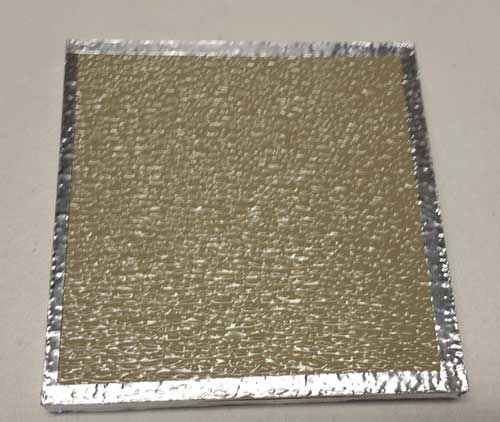

 Pebble Stone FRP        Linen White FRP

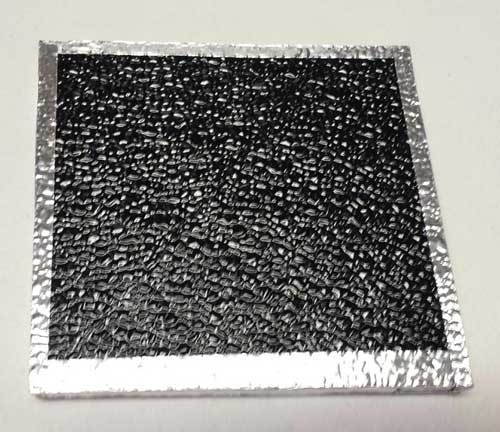

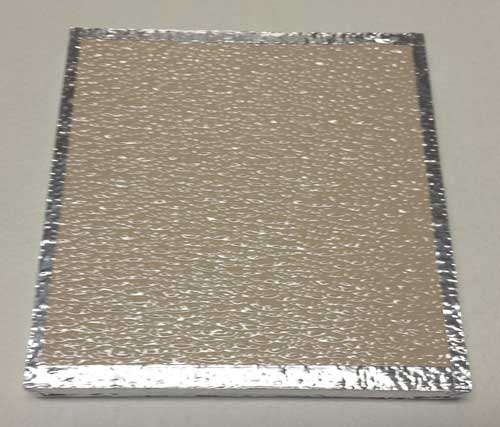

 Pebble Beige FRP      Pebble Black FRP

RF Shielded Ceiling Panels

2' x 2' Smooth White RF Shielded Panels
