Universal Standard RF Shielded Rooms

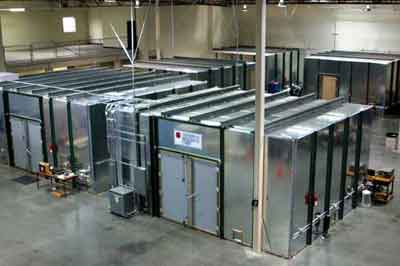

Universal RF Shielded Rooms

Universal Shielding Corp.- RF Shielded Rooms

Made in the USA

Same Day Quotes on Standard RF Shielded Rooms


Standard Universal RF Shielded Room

IIncludes the following items

All Floor, Wall and Ceiling Panels with Exclusive Weldnut Steel Framing System

Dielectric Vapor Barrier and Hardboard Underlayment

One (1) - 3' 0" x 7' 0" Clear Opening, Type RCM-154, Personnel Door

One (1) - Single Phase, 2 Conductor, 30 Amp, 50/60 Hz, A.C. Power Filter

Two (2) - Waveguide Vents (USC-26 ONLY) See below for sizes

One (1) - 12" x 12" Blank Setup Panel

One (1) - Brass Ground Stud

See Bottom of Page for Exclusions and Options


Installed by Universal Factory Personnel (Standard)

RF Shielding Attenuation Test performed at completion of the installation

Standard Test Frequencies are 100 MHz, 400 MHz and 1 GHz

A Certificate of RF Shielding Attenuation performance will be issued by Universal Shielding Corp

One Year Warranty


Working Universal Supervisor Only Also Available (Discontinued)

Installation by Fully Insured Factory Working Supervisor and Your Laborers

RF Shielding Attenuation Test performed at completion of the installation

Standard Test Frequencies are 100 MHz, 400 MHz and 1 GHz

A Certificate of RF Shielding Attenuation performance will be issued by Universal Shielding Corp

One Year Warranty


Do-It-Yourself Kits Also Available (Materials Only)

Installation Instructions and Drawings (No RF Shielding Attenuation Testing)

All pieces are numbered or marked

One Year Warranty


USC-26

The USC-26 shielding system is designed to meet or exceed the vast majority of shielding requirements. This system is available in both standard modular enclosures and custom designed modular enclosures to meet exact specifications in government, industry, research and development, university, medical or hospital use.

The basic design incorporates production techniques which require no gasketing materials of any kind. Weld nuts on the corner and intermediate framing members eliminate screws that penetrate the outer framing members; thus there can be no RF leakage as a result of a loose screw. In addition, this exclusive weld-nut feature provides a structure that is tamper-proof from the outside...an important security consideration. USC enclosures can be designed to accommodate raised floors for computer installations, suspended ceilings with recessed lighting, anechoic absorbers or ferrite tile.


USC-44

The USC-44 shielding system employs the same framing structure as the USC-26. However, the
upper portion of the enclosure consists of a double layer of copper screen panels instead of solid
panels. This construction has the following advantages:

  • Facilitates communication between the interior and exterior of the enclosure
  • Dedicated ventilation is not required
  • Visual observation of testing is possible from the exterior of the enclosure
  • Eliminates sense of confinement for the engineer


Standard (8' High) RF Shield Room Specifications & Part Numbers

USC-26

Solid Wall
PART NUMBER

USC-44

Copper Screen
PART NUMBER

SIZE

 (WxLxH)

OUTSIDE DIMENSIONS *

AIR

VENT SIZE

USC-26 ONLY

SHIPPING

 WIDTH

LENGTH

HEIGHT

WEIGHT

(lbs.)

VOLUME

(cu. ft.)

USC26-040408

USC44-040408

4' x 4' x 8'

4' 3 3/8"

4' 3 3/8"

8' 2 5/8"

12" x 12"

1,200

65

USC26-040608

USC44-040608

4' x 6' x 8'

4' 1 11/16"

6' 0"

8' 2 5/8"

12" x 12"

1,500

69

USC26-040808

USC44-040808

4' x 8' x 8'

4' 2 5/8"

8' 2 5/8"

8' 2 5/8"

12" x 12"

1,500

69

USC26-060608

USC44-060608

6' x 6' x 8'

6' 2 3/8"

6' 3 3/8"

8' 2 5/8"

12" x 12"

1,850

71

USC26-060808

USC44-060808

6' x 8' x 8'

6' 2 5/8"

8' 0"

8' 2 5/8"

12" x 12"

2,250

73

USC26-080808

USC44-080808

8' x 8' x 8'

8' 3 3/8"

8' 3 3/8"

8' 2 5/8"

12" x 12"

2,700

75

USC26-081008

USC44-081008

8' x 10' x 8'

8' 3 3/8"

10' 4 1/8"

8' 2 5/8"

12" x 12"

3,200

86

USC26-081208

USC44-081208

8' x 12' x 8'

8' 3 3/8"

12' 4 1/8"

8' 2 5/8"

12" x 12"

3,600

96

USC26-081608

USC44-081608

8' x 16' x 8'

8' 3 3/8"

16' 4 7/8"

8' 2 5/8"

12" x 12"

4,500

118

USC26-101008

USC44-101008

10' x 10' x 8'

10' 4 1/8"

10' 4 1/8"

8' 2 5/8"

12" x 12"

3,700

98

USC26-101208

USC44-101208

10' x 12' x 8'

10' 4 1/8"

12' 4 1/8"

8' 2 5/8"

12" x 12"

4,200

110

USC26-101608

USC44-101608

10' x 16' x 8'

10' 4 1/8"

16' 4 7/8"

8' 2 5/8"

12" x 12"

5,200

134

USC26-102008

USC44-102008

10' x 20' x 8'

10' 4 1/8"

20' 5 5/8"

8' 2 5/8"

12" x 24"

6,200

158

USC26-121208

USC44-121208

12' x 12' x 8'

12' 4 1/8"

12' 4 1/8"

8' 5 3/4"

12" x 24"

4,800

123

USC26-121608

USC44-121608

12' x 16' x 8'

12' 4 1/8"

16' 4 7/8"

8' 5 3/4"

12" x 24"

5,900

150

USC26-122008

USC44-122008

12' x 20' x 8'

12' 4 1/8"

20' 5 5/8"

8' 5 3/4"

12" x 24"

7,000

176

USC26-122408

USC44-122408

12' x 24' x 8'

12' 4 1/8"

24' 6 3/8"

8' 5 3/4"

12" x 24"

8,300

202

USC26-161608

USC44-161608

16' x 16' x 8'

16' 4 7/8"

16' 4 7/8"

8' 5 3/4"

12" x 24"

7.200

182

USC26-162008

USC44-162008

16' x 20' x 8'

16' 4 7/8"

20' 5 5/8"

8' 5 3/4"

12" x 24"

8,500

214

USC26-162408

USC44-162408

16' x 24' x 8'

16' 4 7/8"

24' 6 3/8"

8' 5 3/4"

24" x 24"

9,800

246

USC26-202008

USC44-202008

20' x 20' x 8'

20' 5 5/8"

20' 5 5/8"

8' 6 5/8"

24" x 24"

10,000

251

USC26-202408

USC44-202408

20' x 24' x 8'

20' 5 5/8"

24' 6 3/8"

8' 6 5/8"

24" x 24"

11,300

283

USC26-242408

USC44-242408

24' x 24' x 8'

24' 6 3/8"

24' 6 3/8"

8' 6 5/8"

24" x 24"

12,700

302


* Installation requires additional clearance of up to 6 inches in length, width & height


Standard (10' High) RF Shield Room Specifications & Part Numbers

USC-26

Solid Wall
PART NUMBER

USC-44

Copper Screen
PART NUMBER

SIZE

 (WxLxH)

OUTSIDE DIMENSIONS *

AIR

VENT SIZE

USC-26 ONLY

SHIPPING

 WIDTH

LENGTH

HEIGHT

WEIGHT

(lbs.)

VOLUME

(cu. ft.)

USC26-040410

USC44-040410

4' x 4' x 10'

4' 3 3/8"

4' 3 3/8"

10' 2 5/8"

12" x 12"

2,000

75

USC26-080810

USC44-080810

8' x 8' x 10'

8' 3 3/8"

8' 3 3/8"

10' 2 5/8"

12" x 12"

3,200

86

USC26-081010

USC44-081010

8' x 10' x 10'

8' 3 3/8"

10' 4 1/8"

10' 2 5/8"

12" x 12"

3,700

98

USC26-081210

USC44-081210

8' x 12' x 10'

8' 3 3/8"

12' 4 1/8"

10' 2 5/8"

12" x 12"

4,200

110

USC26-081610

USC44-081610

8' x 16' x 10'

8' 3 3/8"

16' 4 7/8"

10' 2 5/8"

12" x 12"

4,250

134

USC26-101010

USC44-101010

10' x 10' x 10'

10' 4 1/8"

10' 4 1/8"

10' 2 5/8"

12" x 12"

4,300

111

USC26-101210

USC44-101210

10' x 12' x 10'

10' 4 1/8"

12' 4 1/8"

10' 2 5/8"

12" x 12"

4,900

126

USC26-101610

USC44-101610

10' x 16' x 10'

10' 4 1/8"

16' 4 7/8"

10' 2 5/8"

12" x 12"

6,000

151

USC26-102010

USC44-102010

10' x 20' x 10'

10' 4 1/8"

20' 5 5/8"

10' 2 5/8"

12" x 24"

7,200

178

USC26-121210

USC44-121210

12' x 12' x 10'

12' 4 1/8"

12' 4 1/8"

10' 5 3/4"

12" x 24"

5,500

139

USC26-121610

USC44-121610

12' x 16' x 10'

12' 4 1/8"

16' 4 7/8"

10' 5 3/4"

12" x 24"

6,800

168

USC26-122010

USC44-122010

12' x 20' x 10'

12' 4 1/8"

20' 5 5/8"

10' 5 3/4"

12" x 24"

8,000

198

USC26-122410

USC44-122410

12' x 24' x 10'

12' 4 1/8"

24' 6 3/8"

10' 5 3/4"

12" x 24"

9,200

228

USC26-161610

USC44-161610

16' x 16' x 10'

16' 4 7/8"

16' 4 7/8"

10' 5 3/4"

12" x 24"

8,000

203

USC26-162010

USC44-162010

16' x 20' x 10'

16' 4 7/8"

20' 5 5/8"

10' 5 3/4"

12" x 24"

9,700

238

USC26-162410

USC44-162410

16' x 24' x 10'

16' 4 7/8"

24' 6 3/8"

10' 5 3/4"

24" x 24"

10,300

273

USC26-202010

USC44-202010

20' x 20' x 10'

20' 5 5/8"

20' 5 3/8"

10' 6 5/8"

24" x 24"

11,500

278

USC26-202410

USC44-202410

20' x 24' x 10'

20' 5 5/8"

24' 6 1/8"

10' 6 5/8"

24" x 24"

12,300

322

USC26-242410

USC44-242410

24' x 24' x 10'

24' 6 3/8"

24' 6 1/8"

10' 6 5/8"

24" x 24"

13,300

332


* Installation requires additional clearance of up to 6 inches in length, width & height


Available Universal RF Shielded Room Options

The following items are not included as part of the standard RF shielded enclosure package:

Additional structural support for anechoic material (ferrite tile) installation

Additional structural support to meet earthquake requirements

Professional Engineer approved and stamped drawings

Any Taxes (Federal, State, Local, Etc.), Permits, Fees, Licenses

Freight to Jobsite (Your Company Location)

Offloading, Unloading, Moving and Storage of shield room materials

Electrical distribution, Electrical (Parts, Wire, Boxes, Etc.) not mentioned above

HVAC, and Fire detection/protection systems

Dielectric Collars for HVAC Waveguide air vents

Instrumentation, Turntables, Towers, Antennas, and Positioners

Raised floor, Seismic bracing and calculations

RF Certification / Compliance Test & Report: MIL-STD-285, IEEE-299, NSA 65-6, NSA-94-106

RF Shielding attenuation testing to 10 GHz, 18 GHz or 40 GHz

Compressed air system and components

Design reviews and as-built drawings

BNC & Type N connectors for the setup panel

Input / Output filters for fire alarm, Ethernet, telephone, etc.

Vinyl Floor Tile

ESD Floor Tile

Access or computer flooring

Architectural finishes

400 Hz Power line filtering

Additional shielding performance

Custom size rooms

All are available as options to meet your specific requirements


We can built you a shield room to

 ANY size and shape

If you don't see what you want, just let us know what you need
