Reverberation Chambers or mode-stirred chambers for electromagnetic compatibility (EMC) testing.

Over the past several decades, RCs have been enjoying growing popularity as a promising facility for the characterization of wireless devices and for EMC testing. The RC (Reverberation Chamber) measurement method exhibits much competitive superiority over the AC (Anechoic Chamber) method and TEM Cell method, such as low cost, enhanced test repeatability, a more realistic test environment, and easily achieved high-field environment. The application of the RC for performing EMC testing was first proposed by H. A. Mendes in 1968. In the recent IEC 61000-4-21 standard, the importance of EMC testing using RCs as an alternative measurement technique has been recognized.

An electromagnetic reverberation chamber is a multifunctional EMC (Electromagnetic Compatibility) test facility for commercial, military, automotive testing, and other electromagnetic investigations.

Also known as reverb chamber (RVC) or mode-stirred chamber (MSC) or, Vibrating intrinsic reverberation chamber (VRC).

All the Gtemcell stirrer systems are compatible with software by Nexio, Teseq, and Rohde & Schwarz. The stirrer systems can be controlled using a standard office PC or lab top.


Index

Reverberation Chambers

Reverberation Tents Italy

Reverberation Tents USA


GTEM Italia Reverberation Chambers

A reverberation chamber is a screened room with a minimum absorption of electromagnetic energy.

Due to the low absorption of the walls, very high field strength can be achieved with moderate input power.

A reverberation chamber is a cavity resonator with a high Q factor. Thus, the spatial distribution of the electrical and magnetic field strengths is strongly inhomogeneous (standing waves). To reduce this inhomogeneity, different techniques are applied:

Generating reverberation through one or more tuners (stirrers) in movement.

The Lowest Usable Frequency (LUF) of a reverberation chamber depends on the size of the chamber and the design of the tuner. Small chambers have a higher LUF than large chambers.

The chambers RVC are made by modular 2 mm thickness galvanized steel or 3mm. aluminum panels system. In addition to our standardized models, all chambers are available in customized dimensions according to individual requirements

Reverberation Chamber

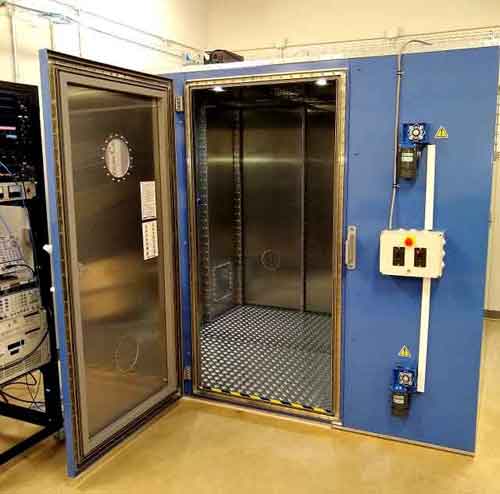

Reverb Chamber with Door Open

Reverberation Chambers

Model

Frequency Range

External
Dimensions

LxWxH (m)

Usable Test Volume

LxWxH (m)

Stirrer System

Note:

 80RVC

 80MHz-18GHz

12.5 x 10.5 x 6

7 x 7 x 4.5

Z fold 2 rotary stirrers

Galvanized steel panels

100RVC

100MHz-18GHz

9 x 7.95 x 6

4 x 4 x 4.5

Z-fold duo-pole rotating vertical stirrer system

Galvanized steel panels

200RVC

200MHz-18GHz

5.1 x 4 x 3

2.4 x 2.2 x 1.25

Z-fold duo-pole rotating vertical stirrer system

Galvanized steel panels

400RVC

400MHz-18GHz

2.5 x 2 x 2

0.8 x 0.8 x 0.8

Z-fold duo-pole rotating vertical stirrer system

Aluminum panels

1G-RVC

1GHz-18GHz

0.8 x 0.9 x 1.5

0.5 x 0.5 x 0.5

A-symmetric stirrer system

Aluminum panels

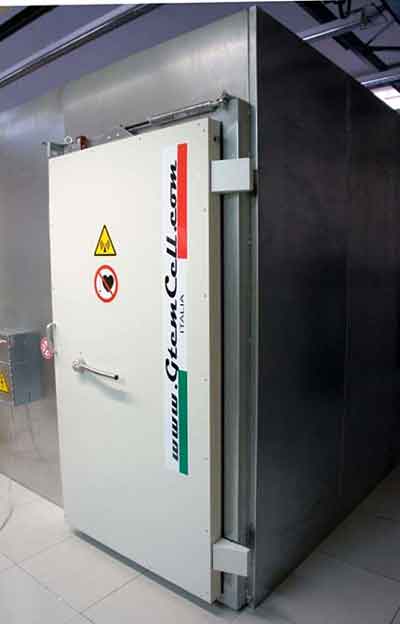

GTEM-ITALIA-Reverberation-Chamber-Front

Reverberation Chambers from GTEM Italia   Reverberation Chambers from GTEM Italia

Reverberation Chambers from GTEM Italia   Reverberation Chambers from GTEM Italia

Reverberation Chambers from GTEM Italia

Frankonia Group Open TEM-Cells GTEM ITALIA Reverberation Chambers Data-Sheet

Frankonia Group Open TEM-Cells GTEM ITALIA Reverberation Chamber HY-VRC Hybrid Vibration Chamber Data-Sheet

Frankonia Group Open TEM-Cells GTEM Italia Reverberation Tent RTCH Vibrating Tent Reverberation Chamber Data Sheet

Frankonia Group Open TEM-Cells GTEM ITALIA Stirrer Data Sheet

Video Reverberation Chamber


GTEM Italia Revereration Tents

Vibrating the walls of a shielded tent. (VRC)

A tuner is made with large metallic reflectors that can be moved to different orientations in order to achieve different boundary conditions.

The VRC is basically a tent made with a special metalized shielded flexible fabric assembled as a cavity that provides a periodic electro-magnetic randomly polarized, spatially uniform, and isotropic facility.

The walls of the tent are inducted in mechanical vibration between 5 and 20Hz able to reflect the electromagnetic waves inside the tent volume with a reverberation effect. The VRC finds application to create an electromagnetic environment for immunity and emission testing, it offers the advantage of faster test throughput times than other test methods, increasing the uniformity levels.

The VRC is easy to mount and can be quickly assembled and disassembled directly at the customer�s place in a few hours!. It allows testing large systems/installations with a VRC and overcome space limitations incorporating also big devices under test.

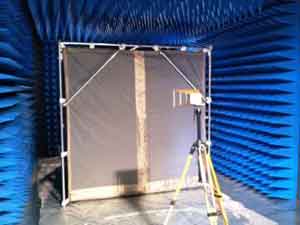

Revberation Tent in Chamber Reverberation Tent

Reverberation Tents

 Model

Frequency Range

External
Dimensions

LxWxH (m)

Usable Test Volume

LxWxH (m)

Vibration System

Note:

700VRC

700MHz-18GHz

1.2 x 1.2 x 1.2

0.5 x 0.5 x 0.5

VRC, Vibrations of the 5 walls

Metalized fabric

400VRC

400MHz-18GHz

3 x 2 x 2

0.8 x 0.8 x 0.8

VRC, Vibrations of  5 walls

Metalized fabric

400VRC
-HY

400MHz-18GHz

2.5 x 2 x 2

0.8 x 0.8 x 0.8

VRC, Vibrations of 3 walls

Hybrid: Metalized fabric + metal base

Frankonia Group Open TEM-Cells GTEM ITALIA Reverberation Chambers Data-Sheet

Frankonia Group Open TEM-Cells GTEM ITALIA Reverberation Chamber HY-VRC Hybrid Vibration Chamber Data-Sheet

Frankonia Group Open TEM-Cells GTEM Italia Reverberation Tent RTCH Vibrating Tent Reverberation Chamber Data Sheet

Frankonia Group Open TEM-Cells GTEM ITALIA Stirrer Data Sheet


Select Fabricators Revereration Tents

The VRC tent was constructed using two layers of Select's proprietary Nova Select conductive ripstop Nylon plated with Silver/Copper/Nickel with an average surface resistivity of .006 ohms/in².

Test the electric field strength from 100 MHz to 18 GHz with no vibration, a single point of vibration or with two points of vibration.

VRC tents can be made to any size, from bench top size to semi-truck size.

The walls of the tent are inducted in mechanical vibration between 2.5Hz and 20Hz to reflect the electromagnetic waves inside the tent volume with a reverberation effect. The VRC application is to create an electromagnetic environment for immunity and emission testing. The VRC offers the advantage of faster test throughput times than other test methods, increasing the uniformity levels.

The VRC is easy to mount and can be quickly assembled and disassembled directly at the customer's location in a few hours. It allows testing large systems/installations with a VRC and overcome space limitations incorporating also big devices under test.

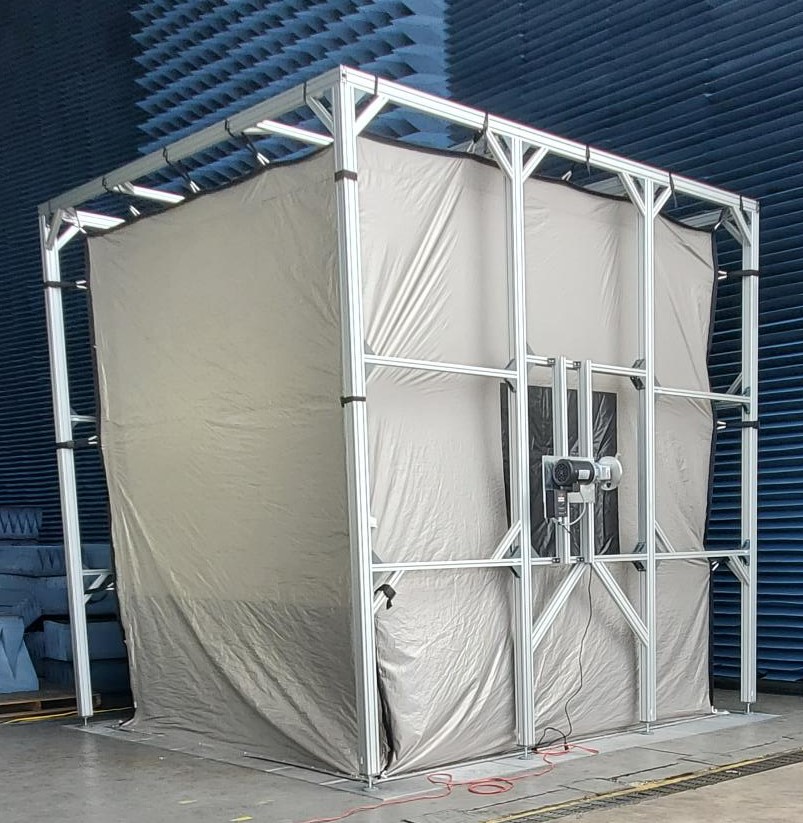

SFI Reverberation Tent

Video
Select Fabricators Reverberation Tent In Action
