Ramsey RF Shielded Test Enclosure Connectors

(Connectors & I/O's can be machined into the connector panel or anywhere else on the case)

Part Number Description


Coax Feed -Through Connectors

        Type N Bulkhead Feed-Through Connector    SMA Bulkhead Feed-Through Connector   SMB Bulkhead Feed-Through Connector  UHF Bulkhead Feed-Through ConnectorFEMALE TO FEMALE


CONN105 BNC Dust Cover.
CONN103 BNC Feedthrough Connector 50 Ohm.  Photo
CONN389 BNC Feedthrough Connector 75 Ohm. Photo
CONN403 BNC To F Feedthrough Connector. Photo
CONN175 SMA Dust Cover.
CONN390 SMA Feedthrough Connector. Photo (replaces old part number CONN157)
CONN283 SMB Jack to Jack Bulkhead Connector. Photo
CONN174 TNC Dust Cover.
CONN60 TNC. Photo
CONN159 Type F Feedthrough Connector (soldier).
CONN294 Type FFeedthrough Connector (female to female).
CONN173 Type N Dust Cover
CONN104 Type N Feedthrough Connector. Photo
CONN209 Type N to SMA Feedthrough Connector.
CONN307 UHFFemale Bulkhead Connector. Photo

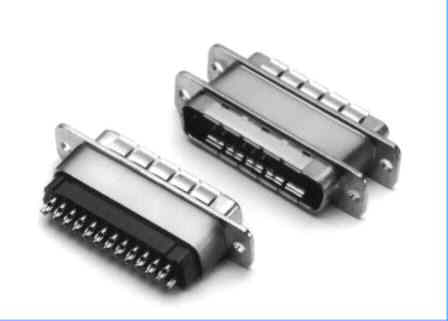

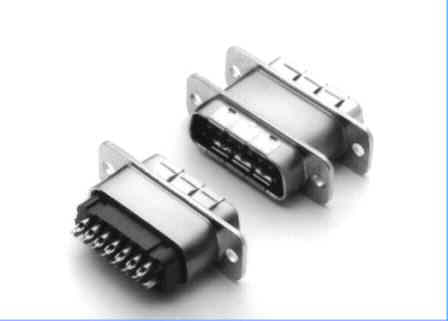

RF Shielded & Filtered D-Sub Connectors

DB9   DB9  DB15  FEMALE TO MALE






CONN278 DB 9 10 PF Connector (RF Filtered). Photo
Used for very high-speed data, <= 400 Mbps (required for USB 2.0)
* Includes EMI39 RF Shielded Dust Cap Tech Note
CONN207 DB 9 100 PF Connector (RF Filtered). Photo
Used for high-speed data, <= 150Mbps (Required for USB 1.x or 10/100 Ethernet)
*  Includes EMI39 RF Shielded Dust Cap
CONN67 DB 9 1000 PF Connector (RF Filtered). Photo Used for RS-232
* Includes EMI39 RF Shielded Dust Cap
CONN113 DB 9 Female to Female Gender Changer. Photo
CONN311 DB 9 Male to Male Gender Changer. Photo
CONN259 DB15 100 PF Connector (RF Filtered). Photo
Used for VGA Filtered Interface
CONN216 DB15 1000 PF Connector (RF Filtered). Photo
Used for VGA filtered interface
CONN378 DB15 GENDER CHANGER F/F Photo
CONN204 DB15 820 PF Connector (RF Filtered). Photo
CONN346 DB25 100 PF Connector (RF Filtered). Photo
CONN156 DB25 1000 PF Connector (RF Filtered). Photo
CONN345 DB25 310 PF Connector (RF Filtered). Photo
CONN388 DB25 GENDER CHANGER F/F Photo
CONN260 DB37 1000 PF Connector (RF Filtered). Photo
CONN261 DB37 310 PF Connector (RF Filtered). Photo
CONN288 DB50 1000 PF Connector (RF Filtered). Photo
CONN276 DB50 310 PF Connector (RF Filtered). Photo



STEDC2010  (New)

 Test Enclosure 20 Separate Filtered AC/DC Power Lines  Ramsey STEDC2010

  Data

Ethernet Connectors

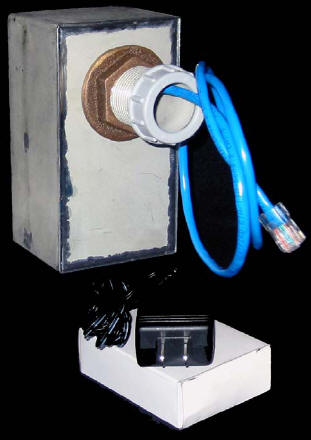

RF45      STE10GBE 10Gb Ethernet Filterwith POE


STE10GBE  10 GIGABIT Ethernet Filter with POE,Ethernet interface provides 10GBASE-T Ethernet using standard CAT6A or CAT7 cables.  Data
STERJ4510G 10/100/1000/10,000 Ethernet Filter with POE, RF Shielded, with port cover, but NO Filtering. Data
STEGBE4590 10/100/1000 Ethernet Filter with POE, 100 dB Insertion Loss from 10 KHz to 10 GHz.  Data
STEGBE4591 10/100/1000 Ethernet Filter with POE, but NO POE Automatic Mode Detection, 100 dB Insertion Loss from 10 KHz to 10 GHz.  Data

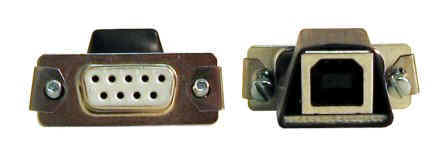

STERJ45 RJ45 Adapter Kit Photo   THIS IS A PAIR OF ADAPTERS Tech Note
Connects to RF Filtered DB9 100pF (not included)
RJ45 plugs into female DB9 on inside.
RJ45 plugs into male DB9 on outside



USB Connectors

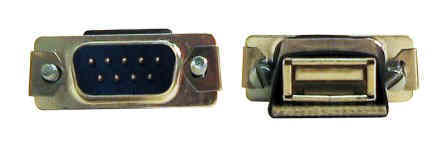

dB9 Male to USB-A AdapterdB9 Female to USB-B Adapter STEUSB2071   Shielded (No Filtering) USB Connector RF Shielded USB3.0 Connector



STEUSB3CC

Shielded USB 3.x High Speed Interface. Data

USB Type C Input and Output connectors.
STEUSB312 The Ulimate High Speed USB 3.x EMI Filter.  Data  (BEST for USB 3.x)

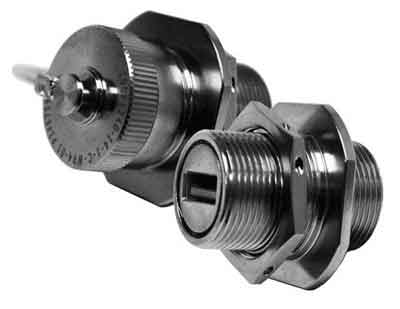

STEUSB3AA   Unfiltered shielded USB2.0/3.0/3.1 A-A I/O connector.  Data Photo
STEUSB2071  The Ulimate High Speed USB 2.x EMI Filter  Data   Photo
STEUSB-S USB-S Shielded Adapter Kit. Photo    Tech Note
Connects to RF Filtered DB9 (not included).
USB-A plugs into female DB9 on inside
USB-B plugs into male DB9 on outside
Use 100pF DB9 for USB1.x and 10pF DB9 for USB2.0.
STEUSB-AS USB-AS Shielded Adapter Kit. Photo
Connects to RF Filtered DB9 (not included).
USB-A plugs into female DB9 on inside
USB-A plugs into female DB9 gender changer on outside
Use 100pF DB9 for USB1.x and 10pF DB9 for USB2.0.

Other Connectors

         RJ45   PS2   PS2   FOA



FIBER-OPTIC
CONN392 FC Simplex to FC Simplex Fiber Bulkhead. Photo
CONN374 ST Multimode to ST Multimode Bulkhead. Photo
CONN317 FIBER APC FC BULKHEAD CONNECTOR (female to female).
STEWGF6 6 CHANNEL FIBER WAVE GUIDE BULKHEAD Photo

DATA ADAPTER KITS
STE1394 IEEE 1394 (FireWire) Adapter Kit.
Connects to RF filtered DB9 10pF (not included)
THIS IS A PAIR OF ADAPTERS
STEVGA VGA Monitor Interface Adapter Kit. Photo
Connects to RF Filtered DB15  (not included)
THIS IS A PAIR OF ADAPTERS
STEHR210   (New) HDMI (Compact) I/O connector that passes 4K video up to 2160p.  Data
CONN351 DB9 - RJ11 / Male.
Connects to RF Filtered DB9 (not included)
THIS IS ONE ADAPTER
CONN352 DB9 - RJ11 / Female.
Connects to RF Filtered DB9 (not included)
THIS IS ONE ADAPTER
CONN199 PS/2TO DB9 F-F, CONNECTS TO RF FILTERED DB9.
THIS IS ONE ADAPTER
CONN187 PS/2TO DB9 M-M, CONNECTS TO RF FILTERED DB9.
THIS IS ONE ADAPTER



AC/DC EMI Power Filters

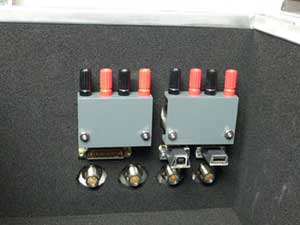

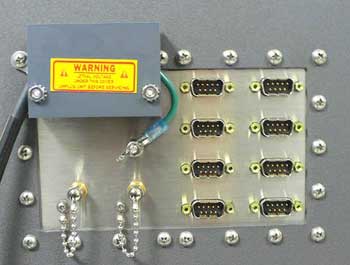

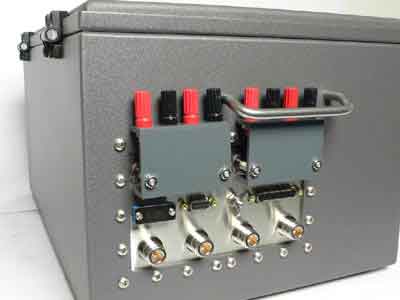

   Barrier Strip photo   Filtered Power Strip with Safety Cover (Click to Enlarge)   Power Strip     Banana Jacks (Inside)      Banana Jacks (Outside)



STEIEC25010C IEC Power Entry Module, 10 Amp, 350VAC, 1,000VDC Data
STERF8 4 Pole Filtered AC Terminal Block Photo 0 - 250 VAC, 20 AMP.
STERF13 4 Pole Filtered DC Terminal Block Photo 0 - 100 VDC, 20 AMP.
STEFIL24 6 Pole Filtered AC Terminal Block Photo 0 - 250 VAC, 20 AMP.
STEFILT8 6 Pole Filtered DC Terminal Block Photo 0 - 100 VDC, 20 AMP.
BJ4Term Installation of One Dual Banana Jack on inside and outside of 4 terminal barrier strip (4 Terminal Barrier strip not included). Photo
BJ6Term Installation of Two Dual Banana Jacks on inside and outside of 6 terminal barrier strip (6 Terminal Barrier strip not included). Photo
PWRSTRP 6 Outlet 120 VAC POWER STRIP (Type B) Photo
PS38 4 Outlet 120 VAC POWER STRIP (Type B)
PS26 6 Outlet 220 VAC EUROPEAN SHUKO (TYPE F). Photo
52904 4 Outlet 220 VAC EUROPEAN SHUKO (TYPE F) Photo
52205 5 Outlet 220 VAC INDIA (TYPE M). Photo
56125 5 Outlet 220 VAC ISRAEL (TYPE C) Photo
52125 5 Outlet 220 VAC UK (TYPE G). Photo
53326 6 Outlet 220 VAC CHINA AUSTRALIA (TYPE I) Photo
52946 6 OUTLET FRANCE 250VAC (FR1-16R) POWER STRIP Photo
58206 6 Outlet 220 VAC INDIA (TYPE D). Photo
55506 6 Outlet 220 VAC SWITZERLAND (TYPE J) Photo
52150 4 Outlet 220 VAC UK (TYPE G). Photo
PS29 12VDC Power supply - 90/240VAC auto switching.
PS40 USA style plug for PS29
PS66 12 OUTLET US 120VAC (NEMA 5-15R) POWER STRIP. Photo
PS77 3 OUTLET UNIVERSAL POWER STRIP Photo
PS90 6 OUTLET US POWER STRIP BLACK WITH SWITCH.  Photo


Other Options

3" Vent Fan     STELED



STEVENT 80 MM VENT OPTION ( INCLUDES 3" 120 VAC or 230 VAC FAN). Photo
STEVENT2 60 MM VENT OPTION ( INCLUDES 1.265" 120 VAC FAN).
STEVENT3 120MM VENT OPTION (INCLUDES 4.72", 48 CFM 120 VAC FAN).
STEVENT-FAN VENT OPTION FOR STE, INCLUDES TWO SHIELDED VENTS.
RFINHIBIT AC Relay & Magnetic Switch Turns off all AC within the box when lid or door is opened. Turns on again when lid is closed. 15 Amp Max.
STEINHIBIT SWITCH TURNS OFF ALL AC WITHIN THE BOX WHEN LID OR DOOR IS OPENED AND ON AGAIN WHEN LID IS CLOSED, 15 AMP MAX.
STEMAGSWT Magnetic Sensor & Magnetic Flange.
STEWINDOW 9.5"W x 3.5"H RF SHIELDED VIEWING WINDOW FOR STE ENCLOSURE.
SHIELDED GLOVES PROVIDES RF SHIELDED GLOVES TO MANIPULATE OR PRESS BUTTONS ON YOUR EUT.
RF50 Microwave Absorber Sheet 1/2" x 24" x 24"
RF75 Microwave Absorber Sheet 3/4" x 24" x 24"
STERTF006 700 MHz to 6GHz Radiating Test Fixture w/ Antenna, cable & SMA Connector.
STELED 12VDC / 12 LED Light Board  (9.5" L x 1.0" W x 0.5" H)

Optional Security Hardware

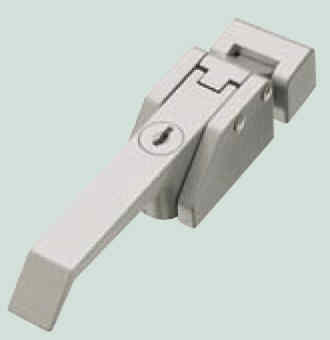

Lockable Latches Locking Latches

Lockable Latch

Locking Latch


Tamper Proof Bolts Security Hardware
Tamper Proof Bolts Security Hardware
