RF Shielded Ethernet Filters

Buy American Act Compliant

Ramsey Electronics Logo

Ramsey Electronics

Made in the USA

Ramsey RF Shielded EMI POE Ethernet Filters

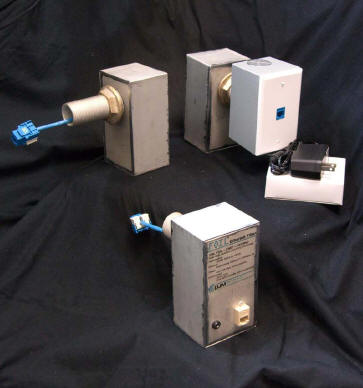

STEGBE4591


RF Shielded Ethernet Filter

Price: Call or Email
GIGABIT ETHERNET OR 8 DEDICATED DATA LINES, >90Db ISOLATION!

Mounting Nut Torque Spec: 20 foot pounds

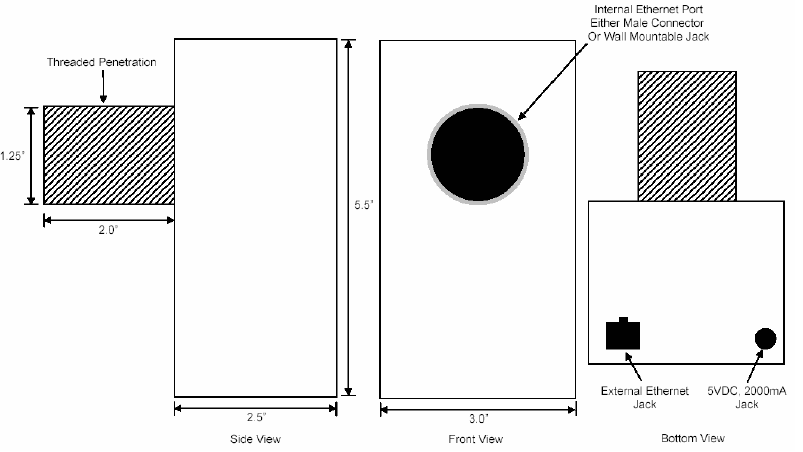

STEGBE4591 Data
STEGBE4591 Gigabit PoE Interface, we removed the Ethernet PoE detection functionality to provide 8 transparent lines for not only Gigabit Ethernet, but for other data formats that conflict with 802.3 af/at mode detection yet still passes PoE power!
Great for custom I/O applications up to 250 MHz per line! Like ≤ 8 Line Digital Cameras Also!
ICD 705 SCIF 1Gbps Ethernet Communication Line Filtering from 250MHz up to 40GHz with Unshielded CAT 5, 6 or 7 Cable.

STEGBE4590

RF Shielded Ethernet POE Filter

Price: NA
DISCONTINUED
Use STEGBE4591 Above
or STEETHD10G
Below

STEGBE4590 Data
Our STEGBE4590 Ethernet & PoE Interface provides you an incredible 90 dB from the 700 MHz 4G LTE bands to >90 dB!

But it only starts there. The built-in smart PoE system automatically detects 802.3af/at protocols, identifies them for you, and passes it on to your powered DUT or vice versa.

And providing 8 independent data lines with >90 dB isolation, it can be used for a host of custom I/O applications, including data, DC, or any combination thereof!
If you need a truly transparent I/O between your DUT and your bench, the STEGBE4590 is it!

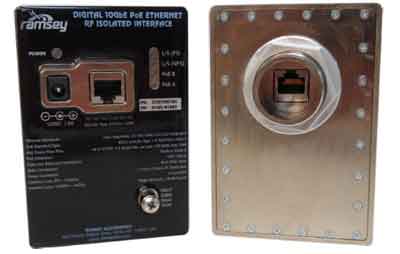

STEETHD10G

RF Shielded 10G Ethernet Filter

Price: Call or Email

DIGITAL 10GbE PoE ETHERNET RF ISOLATED INTERFACE

STEETHD10G Data
The STEETHD10G is a 10Gbps Ethernet RF Isolated Interface. It will auto-negotiate all BASE-T Ethernet data rates. These data rates include 10Mbps, 100Mbps, 1000Mbps, 2.5Gbps, 5Gbps, and 10Gbps. The filter is designed to pass these data rates while providing greater than 80dB RF isolation from 100MHz to 40GHz.

The primary application is for use in an RF Shielded Test Enclosure. The STEETHD10G allows up to 10Gbps data speed and 100 watts PoE to pass while maintaining an enclosure's RF isolation.

The interface will also work well in RF Screen Room applications, or anywhere you need to pass Ethernet data and or PoE while maintaining RF isolation.

RJ45 8P8C Input and Output connectors.
Single Flange Nut for mounting.
RF Gasket Washers to provide high quality RF bond.
Includes 12VDC 2 Amp 24 Watt Switching Power supply with 5 different world power plugs.
Port Savers.
Strain Relief Post.

ICD 705 SCIF High Speed Ethernet Communication Line Filtering from 100MHz up to 40GHz with Unshielded CAT 5, 6 or 7 Cable.

STE10GBE


 10 GB RF Shieled Ethernet Filter with POE

Price: NA
DISCONTINUED (See STEETHD10G Above)

STE10GBE Data
Yes, we said 10 Gigabit! Our brand new STE10GBE Ethernet interface provides 10GBASE-T copper Ethernet using standard CAT6A or CAT7 cables. The interface is also backwards compatible with 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-T, and 10BASE-T, and provides an RF isolation >90dB at all speeds. And just like our Gigabit interface it auto-detects and passes 802.3af/at PoE at all speeds!

Ramsey USB 2.0 & 3.1 High Speed EMI Filters

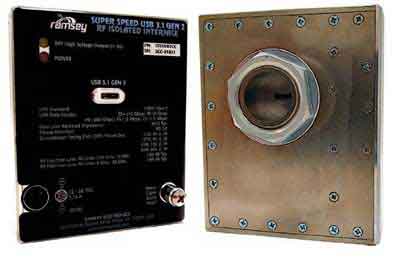

STEUSB3CC


STEUSB3CC

Price Call or Email

SUPER SPEED STEUSB 3.1 GEN 2 Type C RF ISOLATED INTERFACE

STEUSB3CC Data

The STEUSB3CC is a Single Channel Lab Grade USB 3.1 Gen 2 Type C RF Isolated Interface.
It is designed to pass USB communications up to 10Gbps data speed while providing RF isolation from 200MHz to 40GHz. The conductive insertion loss will be greater than 85dB within this band.

The unit also provides 5, 9, 15, or 20 volts DC at up to 3 amps of current for Power Delivery. This equates to a maximum of 60 watts of power available to be delivered to the load.

The unit is fully backward compatible with all previous versions of USB communications.

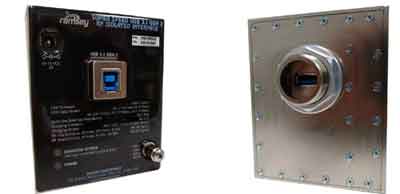

STEUSB312


Ramsey STEUSB312

Price: Call or Email

SUPER SPEED STEUSB 3.1 GEN 2 RF ISOLATED INTERFACE, >90dB ISOLATION!

STEUSB312 Data

The STEUSB312 is a USB 3.1 Gen 2 RF Isolated Interface designed to pass USB communications at 10 Gbps speed while providing RF isolation from 200MHz to 40GHz.

The conductive insertion loss will be greater than 85 dB within this band. The unit also provides 5 volts DC at up to 1.5 amps while providing data, up to 2.2 amps with no host (dedicated charge mode).

The unit is fully backward compatible with previous versions of USB communications and replaces the STEUSB311

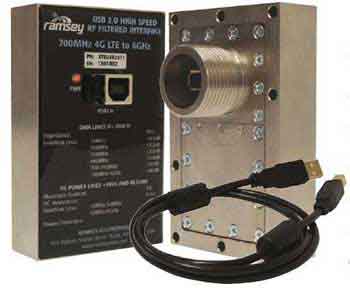

STEUSB2071


RF Shielded USB 2.0 Filter

Price: Call or Email

THE ULTIMATE USB2.0 HIGH SPEED I/O INTERFACE FOR YOUR SHIELDED ENVIRONMENT!

STEUSB2071 Data

Looking for a high speed USB2.0 I/O for your new STE RF Enclosure, or to upgrade your existing STE Enclosure, or as a retrofit to your existing screen room or competitive enclosure? We've got you covered, with our new STEUSB2071 High Speed I/O Filtered Interface! Incredible performance down to the 700 MHz LTE bands all the way up to 6 GHz, simple 100% isolated and shielded single hole mount for easy retrofit and upgrades, auto-detect and display of USB power, and a whole lot more!

Check it out... it simply doesn't get any better!


Ramsey RF Shielded HDMI 4K HD Video Filter

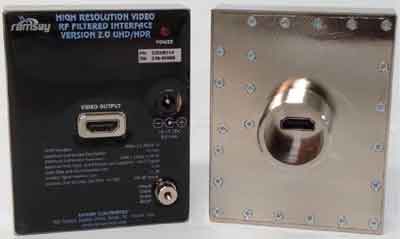

STEHR210


Ramsey STEHR210

Price: Call or Email

4K HIGH RESOLUTION VIDEO, >90dB ISOLATION!

STEHR210 Data

The STEHR210 is a Single Channel Lab Grade High Resolution RF Isolated Interface. It is designed to HDMI 2.1 specifications which will allow the unit to pass High Resolution Video communications up to 48Gbps data speed.

However at the time of this datasheet, the STEHR210 has only been tested to HDMI 2.0 specifications at 18Gbps data speed. HDMI 2.1 specifications are not guaranteed.

The conductive insertion loss will be greater than 90dB within the 500MHz to 40GHz band.

This makes the STEHR210 ideal for isolating even those low band LTE and 5G frequencies.

The unit is fully backward compatible to HDMI 1.4. (Replaces STEHR140)

ICD 705 Tempest SCIF 4K High Definition (HD) Video Camera Digital Camera EMI Filter.


Ramsey RF Shielded HDMI Filter

STEHDMI2


HDMI SHIELDED I/O CONNECTOR

Price: Call or Email

HDMI SHIELDED I/O CONNECTOR!

STEHDMI2 Data

The STEHDMI2 is our latest 100% shielded HDMI A to A receptacle that is transparent to all 19 pins for compatibility up to V2.1.

It's single hole RF gasketed mounting makes it easy to install and utilizes the same mounting form factors making it easy to upgrade to our digital >90 dB RF isolated HDMI interface as needed.


Ramsey RF Shielded Universal 20-Line DC Power, Audio, and Data Interface

STEDC2010

Multipin EMI Filter


RF Shielded 20 Line EMI Filter

Price: Call or Email
PASS 20 LINES OF WHATEVER YOU HAVE, 90DB ISOLATION!

PDF File Mounting Template


Screw Torque Spec (#8-32): 19.8 inch pounds

STEDC2010 Data
The STEDC2010 is the low voltage brother to our AC Power Interface. Provides a staggering 20 lines of DC or signals up to 8MHz while providing >90dB of RF isolation! Perfect for multiple DC power feeds, sense and feedback circuits, audio, video, switching, alarm, and RS232/RS422 speed data.

All connections made by, the included, simple plug-in Euroblock connectors and plugs.

Ideal for ICD 705 Tempest SCIF Security, Card Readers, Signal & Communication Line Filtering,
from 8MHz up to 40GHz with Unshielded Wiring

The maximum mounting panel thickness with the included screws is 0.090".
For thicker mounting panels, use your own, longer #8-32 stainless steel screws.


Ramsey RF Shielded IEC Regulatory Approved AC Power Filter

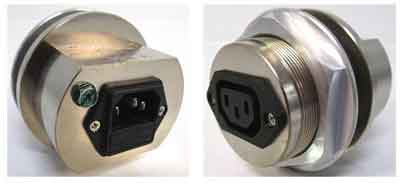

STEIEC25010C


STEIEC25010C

Price: Call or Email
The Universal & Globally Certified Solution for your AC power input
requirements
, >80dB RF Isolation from 200MHz to 30GHz!

STEIEC25010C Data
The IEC25010C is an RF filtered universal AC power module.

This module provides a convenient method of transferring AC mains power to an RF quiet environment by providing an exceptionally high level of RF filtering.

Regulatory certifications which include EU CE, FCC, and Industry Canada

Compact Power Filter, Good for ICD 705 RF Shielded Tempest SCIF Rooms (≤ 80dB), 10 Amps, AC or DC

STEIEC10250

STEIEC10250

Price: NA

DISCONTINUED (See STEIEC25010C Above)

PDF File STEIEC10250 Mounting Template

STEIEC10250 Data
The STEIEC10250 Universal IEC Power Module is the latest interface designed to be your fully compliant regulatory certified RF Test Enclosure power interface while providing >90dB RF isolation.

Features IEC standardized input and output connections making it compatible with virtually any country power standard. Regulatory certifications include EU CE, FCC, and Industry Canada.

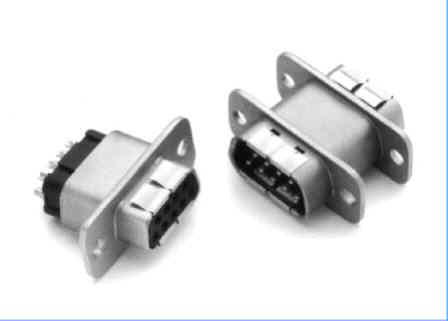

Ramsey RF Filtered D-Sub Connectors

FEMALE TO MALE

TYPICAL IS MALE ON THE OUTSIDE


CONN278

Ramsey CONN278

DB9 10 PF Connector (RF Filtered)

Used for very high-speed data, <= 400 Mbps (required for USB 2.0) Tech Note

Optional EMI39 RF Shielded Dust Cap


CONN207

Ramsey CONN278

DB9 100 PF Connector (RF Filtered)

Used for high-speed data, <= 150Mbps (Required for USB 1.x or 10/100 Ethernet)

Optional EMI39 RF Shielded Dust Cap


CONN67

Ramsey CONN278

DB9 1000 PF Connector (RF Filtered)

Used for RS-232

Optional EMI39 RF Shielded Dust Cap

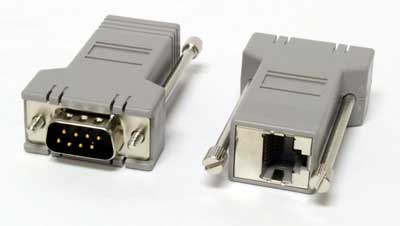

STERJ45



Image result for STERJ45

Price: Call or Email

RJ45 Adapter Kit

THIS IS A PAIR OF ADAPTERS Tech Note

Connects to RF Filtered DB9 100pF (not included, see above)
RJ45 plugs into female DB9 on inside
RJ45 plugs into male DB9 on outside

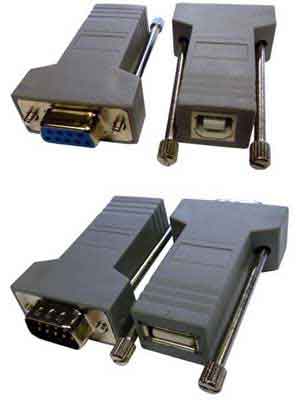

STEUSB-S

Ramsy STEUSB-S

Price: Call or Email

USB Adapter Kit

USB INTERFACE CONNECTOR, CONNECTS TO RF FILTERED DB9



THIS IS A PAIR OF ADAPTERS

(Type B on the outside of the enclosure and Type A on the inside of the enclosure)
