RF Shielded Forensics Pouches

Meets the Buy American Act

Select Fabricators Logo

Made in the USA

RF Shielded Forensics & Evidence Pouches with USB

Select-A-Shield

SFP1218

RF/EMI USB Forensic Pouches

EMI Shielded Forensic Pouch

Data

Weight:  0.60 lb.

Outside Dimension: 17.5" L x 11.75" W x 2" H

Inside Dimension: 15" L x 10.5" W x 2" H

Catalog

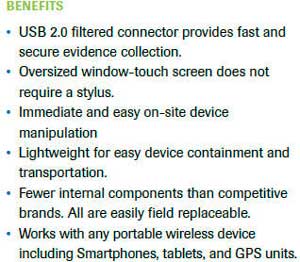

BENEFITS

USB 2.0 filtered connector provides fast and secure evidence collection

Oversized window touch screen does not require a stylist

Imediate and easy on-site device manipulation

Lightweight for easy device containment and transportation

Fewer internal components than competitive brands.

All components are in the field replaceable.

Works with any portable wireless device including Smartphones, Tables, and GPS units.

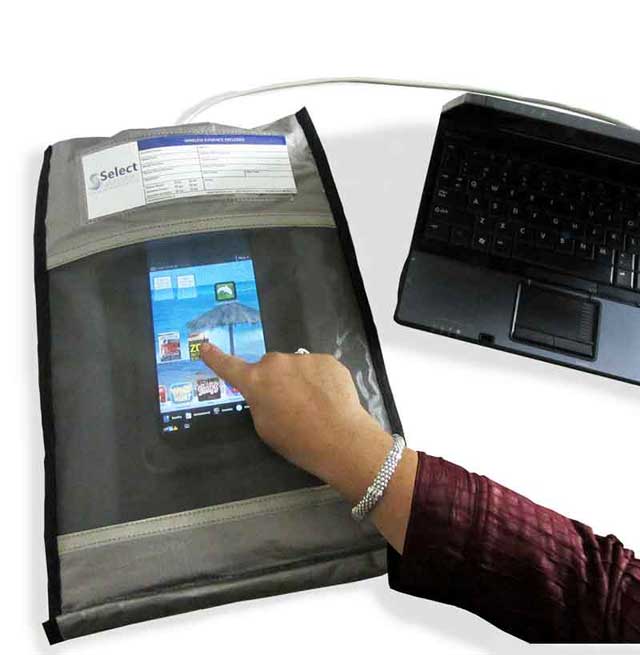

ATTAIN FAST & SECURE ON-SITE

EVIDENCE COLLECTION

On-site mobile device data extraction is a reality with Select Fabricators Shielded USB Forensic Pouch.

More affordable than lab-based non-portable metal enclosures, the USB Pouch allows for hands-on manipulation of wireless devices in an RF tight environment making sure internal data is not compromised from moment of capture. There is no need to take the captured device back to the laboratory to extract the internal memory.

The filtered connection also can charge the device without a need to remove it from the secure evidence pouch.

CONSTRUCTION

Flame retardant/resistant liner

ESD liner to provide static control

Exterior covers

RF Shielded Windows

Clear plastic pocket

Hanging loop

Custom I/O filter plates



 Forensic Pouch Kit

SFP1218K

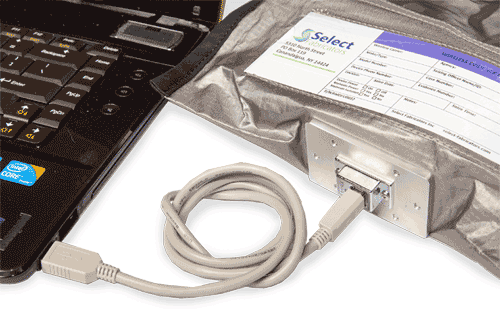

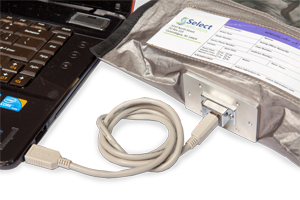

Close Up of USB Connector

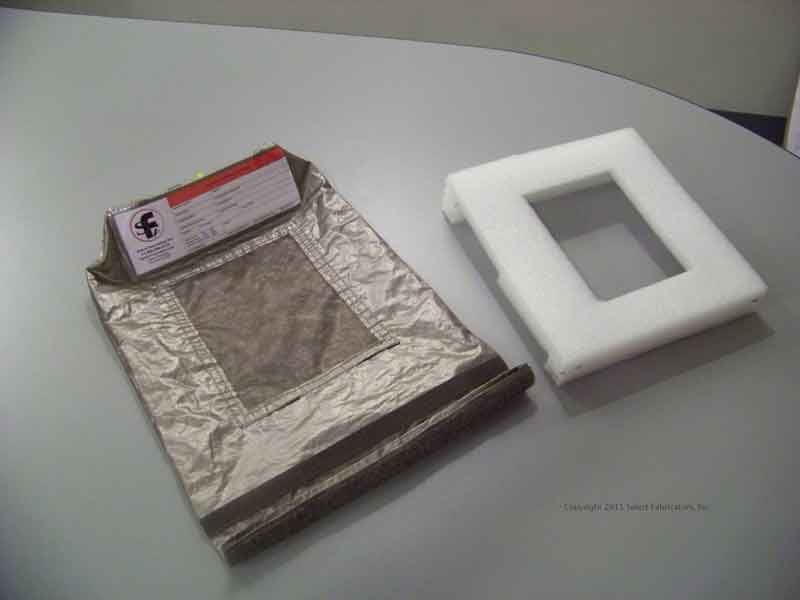

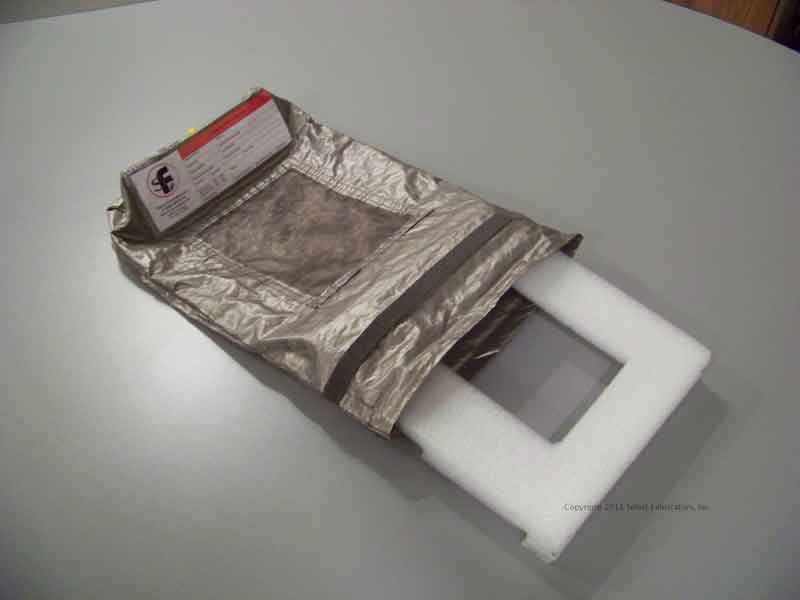

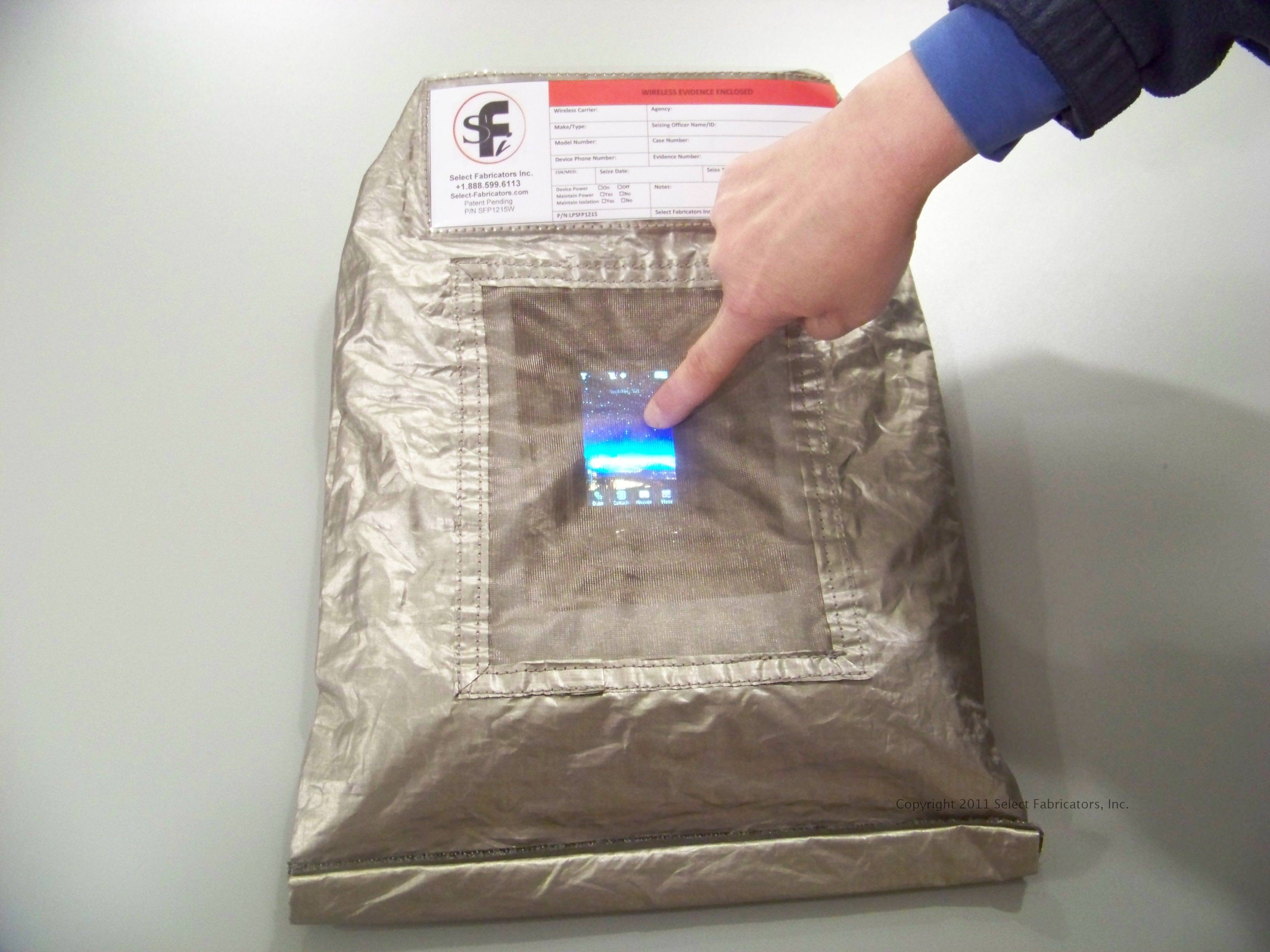

Select Fabricators SFP1215 Forensic Pouch

Select-A-Shield

Discontinued

SFP1215

RF/EMI USB Forensic Pouches

RF Shielded Forensics Pouch



Better than -75 dB, 99.95% RF Isolation from 500MHz to 6.0GHz.

Data



NIJ Report



More Pouches



Secure on-site mobile device data extraction is now a reality with Select Fabricators SFP12115 Shielded Forensic Pouch

The SFP1218KW allows for hands-on manipulation of wireless devices in an RF tight environment making sure internal data is not compromised from moment of capture.

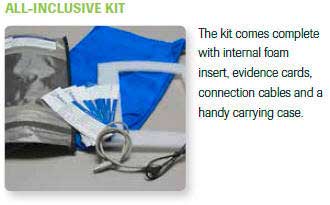

Complete Kit comes with Operating Instructions and Carry Bag

More affordable than lab based non-portable metal enclosures.

Works with any portable wireless device including Smart Phones, PDA, Tablets with SFi's capacitive sensing technology.

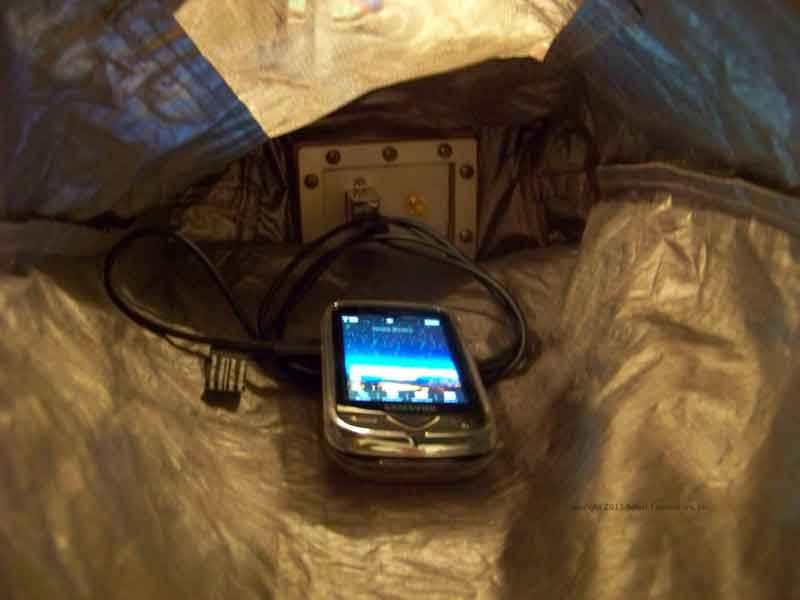

Connects to any forensic diagnostic software / computer. ectrical Capabilities are 5 VDC, 0.500mA

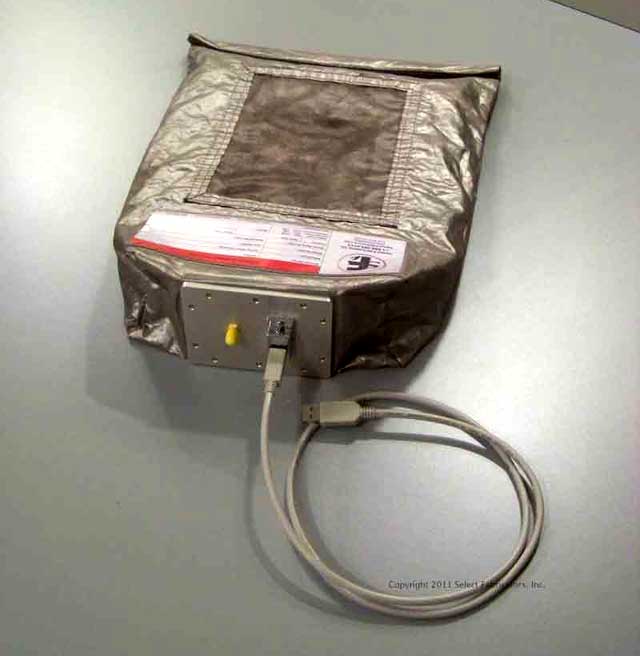

Covered SMA Female-to-Female panel-mount bulkhead; used for RF testing during manufacturing.



Works with any portable electronic device including smart phones with capacitive sensing touch screens like the iPhone.

RF Shielded Pouch          RF Shielded Forensics Pouch


Shielded Pouch          EMI Shielded Pouch


Forensics Pouch          Cell Phone Forensics


Forensics Pouch

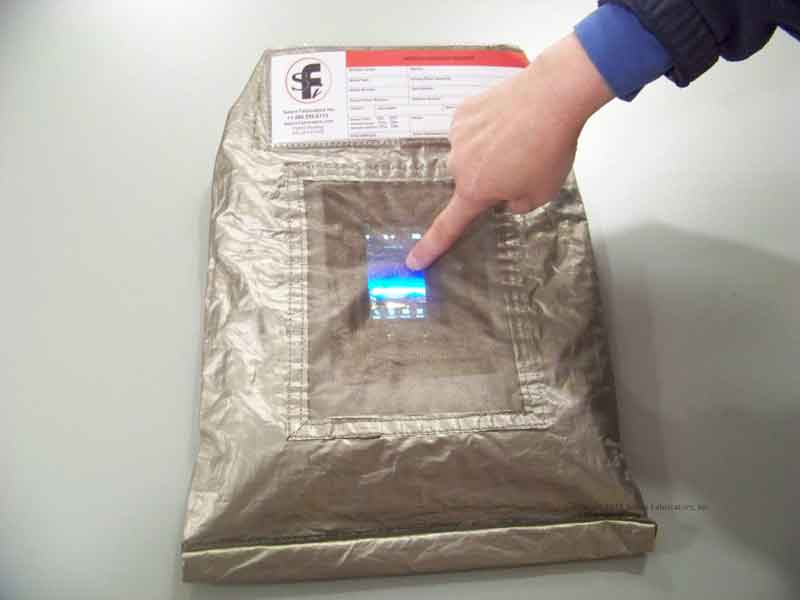

Select Fabricators SFP1215W2 Forensic Pouch

Select-A-Shield

Discontinued

SFP1215W2





Microwave &  RF Shielded Pouch

Designed for Security, Seizure and Forensics



RF Shielded Forensics Pouch



Better than -75 dB, 99.95% RF Isolation from 500MHz to 6.0GHz.



Data



NIJ Report



More Pouches

Secure on-site mobile device data extraction is now a reality with Select Fabricators SFP1215W2 Shielded Forensic Pouch

The SFP1215W2 allows for hands-on manipulation

Complete Kit comes with Operating Instructions and Carry Bag

More affordable than lab based non-portable metal enclosures.

Works with any portable wireless device including Smart Phones with SFi's capacitive sensing technology.

Connects to any forensic diagnostic software / computer.

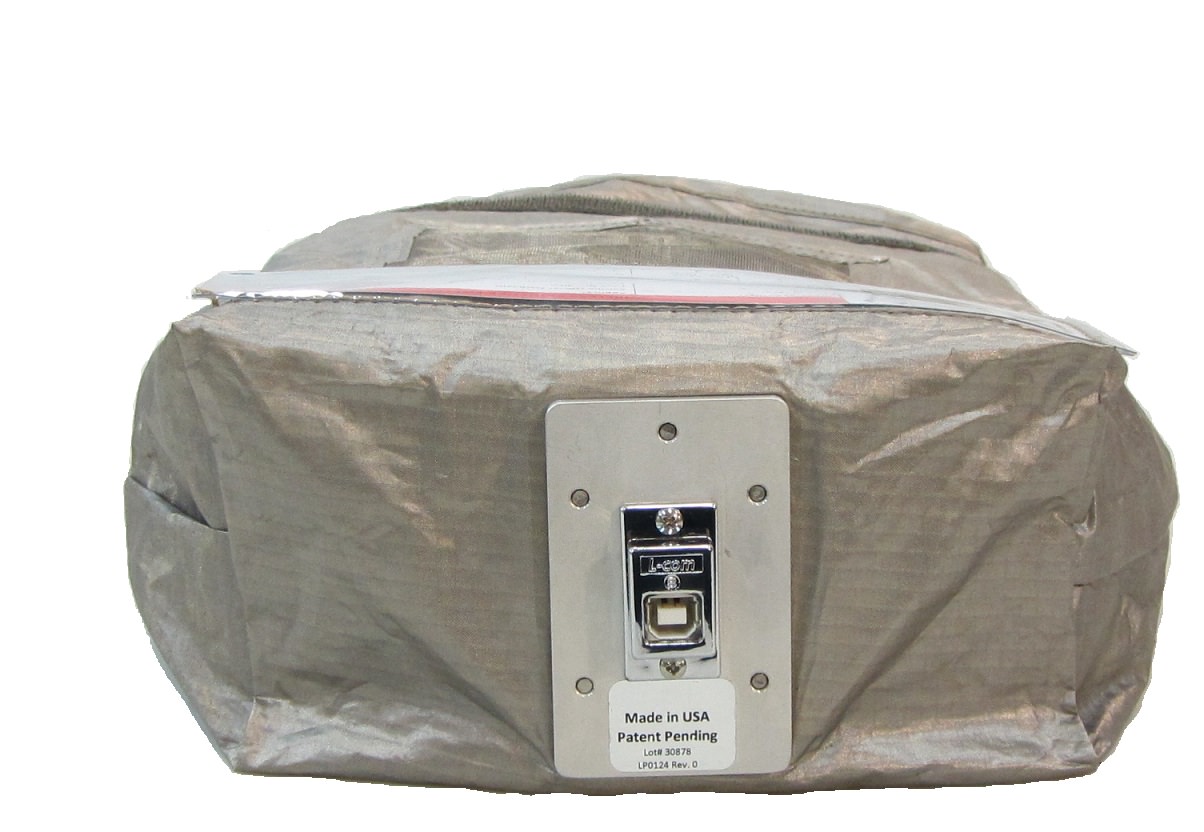

USB 2.0 Type B to USB 2.0 type A, fully shielded, Panel Mount Electrical Capabilities are 5 VDC, 0.500mA



Works with any portable electronic device including smart phones with capacitive sensing touch screens like the iPhone.


RA Mayes EMC Test



RA Mayes EMC Test

Ramsey STP1100 Evidence Pouch

STP1100

 RF Shielded Evidence Pouch

STP1100

  STP1100

STP1100

  • Flexible RF shielded construction
    Double fold RF shield lock

  • 3" x 5" evidence tag window

  • Replacement evidence tags (10 included with each pouch)

  • Big enough for the largest wireless devices.

The STP1100 is specifically designed to rapidly collect and secure wireless devices at the scene by law enforcement personnel. Cellular phones and other wireless devices have quickly become one of the most important and valuable sources of investigative data. But that data has the high risk of being overwritten, deleted, locked-out, or corrupted unless the device is immediately RF shielded from the carrier's network, or even powered down. If a phone is "receiving service" it is vulnerable to remote access, remote data dumps, and remote lockdowns. If the phone is powered off, it is also vulnerable to auto lockdowns and authentication code changes for re-access.
The small size and low cost of the STP1100 puts rapid and secure collection of wireless devices in the hands of every officer in the field for transport to their lab for further investigation. An evidence tag window and tags assure proper ID and chain of custody. Check out the Ramsey STE3000F2 for a hands-on shielded environment to release and investigate the device. Agency and quantity pricing is available as are replacement evidence tags.

EVIDENCE TAGS, 3" x 5"

STPET1 (10 PACK)

TBD

STPET1500 (500 PACK)

TBD



CONNECTORS ISOLATION DIMENSIONS
None, RF shielded collection pouch only -100dB @ 1GHz
-90dB @ 3GHz
5.5" H x 10.5" W (open)

5.5" H x 8.25" W
(Secure Double Fold Sealed)
