Xalon RF Shielded Floor System for ICD 705 SCIF

Xalon RF Shielded Floor System for ICD 705 SCIF Rooms
Xalon and US Foils have teamed up with a 70 years old and in more than 50 markets around the world, company that has stood for high quality and innovative product systems and services for professional installation of premium concrete flooring solutions for subfloor preparation and adhesion. Certified floor installation contractors located in all 50 states. To provide you a Guaranteed RF Shielded Floor System for Your PTB or ICD 705 SCIF. Request an RF Shielded Floor Quote
Our team has over 50 years of experience within the EMI/RFI shielding industry. With quality management and decades of manufacturing experience at the forefront, our lab tested products offer solutions for each unique environment. High performance products designed to make installation more efficient, we reduce labor costs significantly. Manufactured in the United States, our Mid-west location offers quick delivery to all 50 states, and easy access to all major ports. US Foils supplies products to Xalon RF Shielding Systems Corp.

Features Quality Materials Cost Effective Solutions On-time Delivery Ease of Installation Custom/Design Build Buy American Act Compliant Made in the USA Meets the Intelligence Community Directive. Number 705. Sensitive Compartmented Information Facilities (ICD 705) TEMPEST or EMSEC SCIF Requirement	Xalon RF Shielded Floor Systems ≥60dB to 10GHz Floors ≥80dB to 10GHz Floors >90dB to 10GHz Floors Galvanized Steel Panels with Aluminum or Copper Tape Aluminum Panels with Aluminum or Copper Tape For Existing Concrete & Wood Floors Certified Floor Installers in All 50 States Guaranteed RF Floor System Design with Warranted Products Floor Flatness (FF) Q&A An FF of 50 is roughly equivalent to a single ±1/8" defect in 10'

Xalon RF Shielded Aluminum Floor Panels

Xalon RF Shielded Floor Panels Palletized

Xalon RF Shielded Floor Panels on Pallet

Semi Rigid Aluminum Foil Panels for Shielding

We recommend Xalon AL panels be cut or shaped with electric or pneumatic metal nibbler

Must be Shipped Palletized by Truck

Ideal for covering sealed concrete floors

Final flooring can be glued directly on top of the seam taped Xalon AL20 panels.

Xalon AL20 Panels are applied like lightweight paneling, covering all surfaces: walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.

The panels are not self supporting.

The foil panels may be screwed (self drilling screw recommended) (wall systems) or glued in-place (floor systems).

For maximum effectiveness, seams should be taped with 5 mil Aluminum or 5 mil Copper (For Better SE) electrically conductive adhesive foil tape.

For floor installations we recommend, switching to the GS22 or GS26 galvanized steel panel and flashing system (see below).

For wall installations the Xalon AL20 panels can be butt jointed or overlapped, screwed and seam taped.

Xalon AL20 (formerly FP20) Floor Panels

20 mil Aluminum Foil Panels

Semi Rigid Foil Sheets for EMI / RFI shielding

Aluminum .020” x 48.00” x 96.00”

Ideal for covering the floor

1 sheet weighs approx 9.5lbs

0.020" (0.508 mm) (20 mil) Thick

Standard Panel Size

48" x 96" (32 ft²)

Ideal for large coverage areas,

Cuts you labor cost by 30%

Installation Methods

4" Electrically Conductive Aluminum Tape AL5-4x180-1s (Recommended for ≤80dB requirements)

4" Electrically Conductive Copper Tape CU50-4x75-1s (Recommended for >90dB requirements)

Xalon RF Shielded Floor Panels Shielding Effectiveness

Xalon AL20 Average RF Shielding Effectiveness (Insertion Loss per IEEE-299 : 2006)
Installation	AL20 Butt Jointed Installed & Taped with 4" ECPSA Tape
Install Locations	Floor 60dB Copper	Floor 90dB Copper	Floor 80dB Aluminum
Electrically Conductive Seaming Tape	1 Layer 1.4 mil Copper	1 Layer 5 mil Copper	1 Layer 5 mil Aluminum
FREQUENCY	SE (dB)	SE (dB)	SE (dB)
10 KHz, Magnetic Field		45	45
100 KHz, Magnetic Field		65	65
200 KHz, Magnetic Field		65	65
10 KHz, Electric Field	≥60	≥95	≥90
100 KHz, Electrical Field	≥60	≥95	≥90
200 KHz, Electrical Field	≥60	≥95	≥90
1 MHz, Electrical Field	≥80	≥95	≥90
10 MHz, Electrical Field	≥80	≥100	≥95
400 MHz, Plane Wave	≥80	≥100	≥95
1 GHz Plane Wave	≥80	≥92	≥90
10 GHz Plane Wave	≥60	≥90	≥85
18 GHz Plane Wave		≥88	≥85
40 GHz Plane Wave		≥75	≥75

Xalon RF Shielded Galvanized Steel Floor Panels

GS26 Galvanized Steel Floor Panel Sheets

Galvanized Steel Panels for Floor Shielding

We recommend Xalon GS panels be cut or shaped with electric or pneumatic metal nibbler / shear.

Must be Shipped Palletized by Truck

Ideal for covering concrete floors, using copper foil tape. This eliminates to concrete to aluminum problem.

Final flooring can be glued directly on top of the seam taped Xalon GS22 or GS26 panels.

The panels are not self supporting.

The GS panels may be screwed (self drilling zinc coated screws recommended for wall systems) or glued in-place for floor systems (typically 2-part polyurethene adhesive).

For maximum shielding effectiveness, seams must be taped with 5 mil Aluminum or 5 mil Copper (For Better SE) electrically conductive adhesive foil tape.

For floor installations we recommend butt jointing the panels and taping the seams with 4" wide electrically conductive foil tape.

A double layer GS26 panel system can eliminate the seaming tape all together and provide a very flat surface.

GS22 recommended for heavy duty traffic or high PSI floor loads.

RF shielding effectiveness is similar to the AL20 panels, above.

Xalon GS22 & GS26 Floor Panels

22 & 26 gauge Galvanized Steel Floor Panels

Semi Rigid Steel Sheets for EMI / RFI shielding

22 gauge Steel .03” x 48.00” x 96.00”

26 gauge Steel .018” x 48.00” x 96.00”

Ideal for covering the floor

1 GS22 (30 mil) sheet weighs approx 45 lbs.

1 GS26 (18 mil) sheet weighs approx 25 lbs.

Standard Panel Size

48" x 96" (32 ft²)

Ideal for large coverage areas,

Cuts you labor cost by 30%

Installation Method

4" Electrically Conductive Aluminum Tape AL5-4x180-1s (Recommended for ≤ 80dB requirements and waterproof sealed concrete)

4" Electrically Conductive Copper Tape (CU14 for ≤60dB and CU50 for >90dB requirements) and for non-waterproof sealed concrete

Xalon RF Shielded Galvanized Steel Flashing
L-Flashing (XFL) Available in 4" x 4", 6" x 6", 6" x 12" & 6" x 18" By 96" Long	Xalon XFL & XFZ Flashing 26 gauge Galvanized Steel Flashing 26 gauge Steel .018” (18 mil) x SHAPE x 8' L-Flashing is Ideal for Covering Wall to Wall, Wall to Floor & Wall to Ceiling Corners XFL-4x4x96 4” x 4” x 96” XFL-6x6x96 6" x 6" x 96" XFL-6x12x96 6" x 12" x 96" XFL-6x18x96 6" x 18" x 96" Custom Sizes Available
Z Flashing (XFZ) Available in 8" x 7/8" x 96"	Z-Flashing is primarily used for bring the wall foil shielding out to connect to the RF shielded suspended ceiling grid. XFZ-8x7/8x96 4" x 7/8" x 4" x 96"

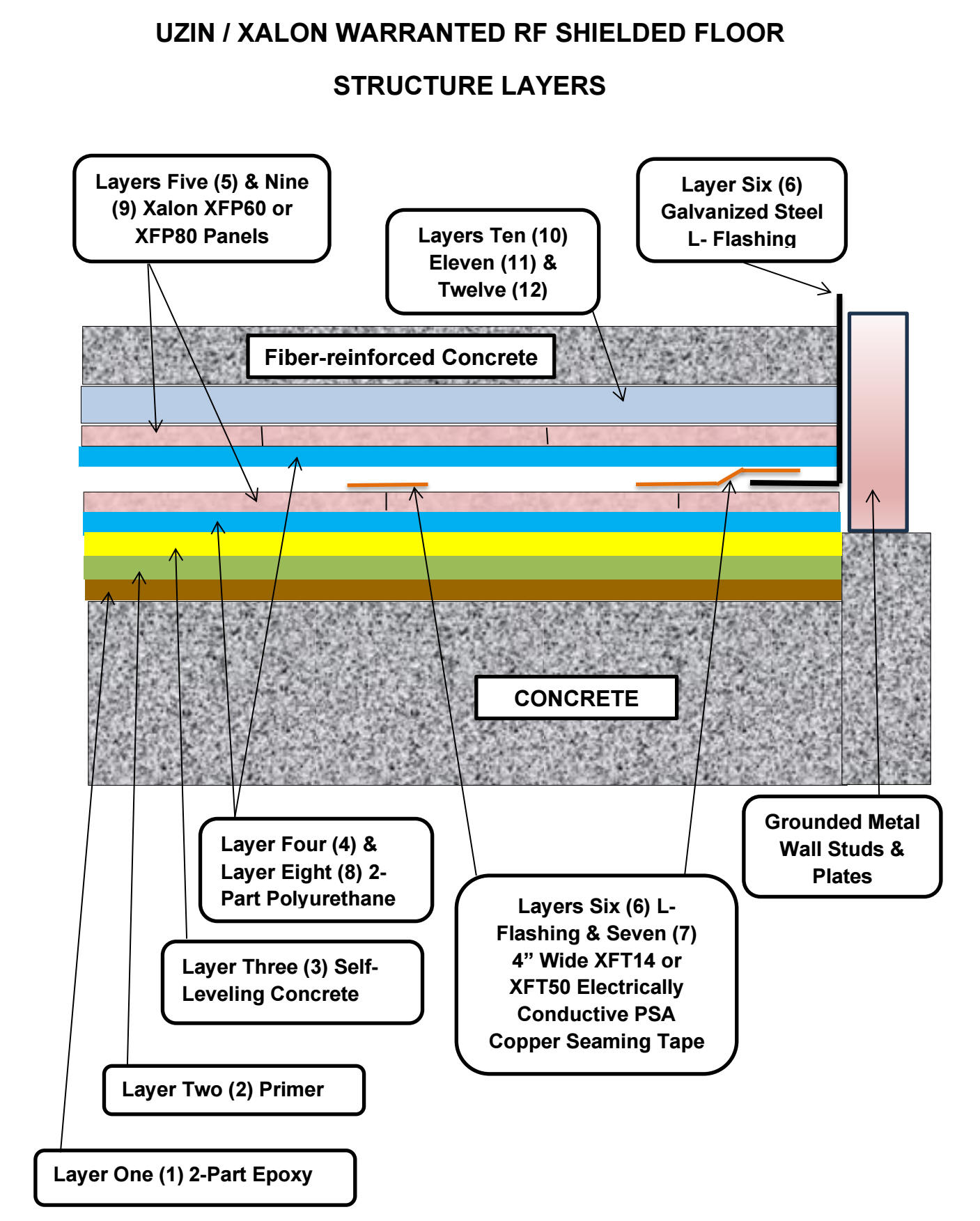

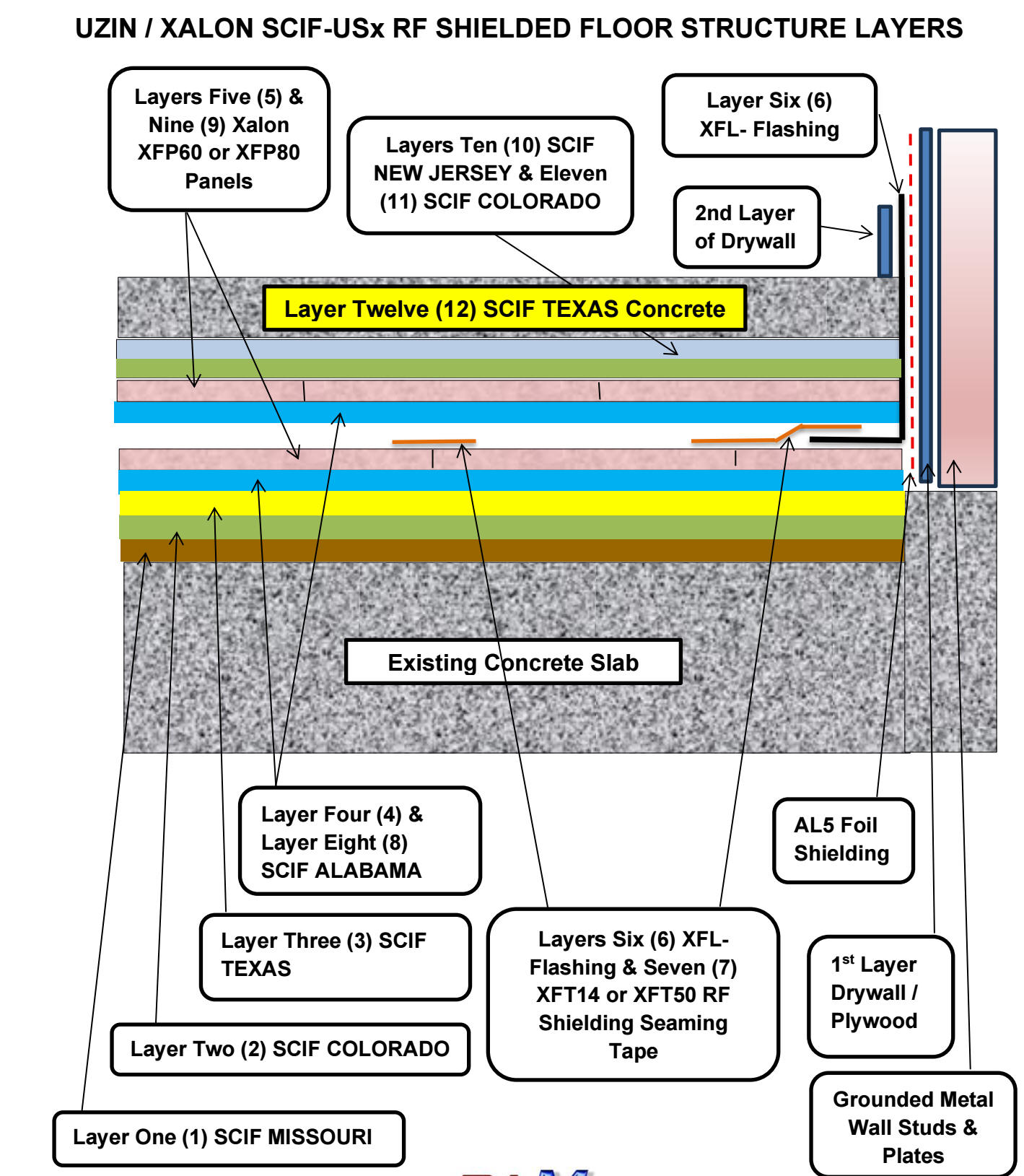

Xalon RF Shielded Concrete Floor System (Preliminary)
Using Name Brand Concrete Products, Xalon GS26 Panels & Copper Seaming Tape

Xalon RF Shielded (Aluminum & Copper) Seaming Tape

Xalon AL Tape

is applied like any tape with a release. The tape is used to RF seal the seams of foil panels.

The 4" wide, electrically conductive PSA is ideal for sealing the panel seams and sealing the panels to door and window frames.

The 6" wide, electrically conductive PSA is used to frame out all the corners and intersections between walls, ceiling and floor, before the foil panels are applied. Also for inside corners.

The 3" wide electrically conductive tape is used to electrically bond all foil panel cuts.

Now Available: 1", 2", 3", 4" and 6" wide, 2 mil or 5 mil, aluminum or copper, with electrically conductive pressure sensitive adhesive (ECPSA) on both sides.

Xalon AL5 (formerly ST5) Aluminum Foil

Seaming Tape

Electrically Conductive PSA

P/N: AL5-2x180-1s 2" x 180' (30 ft²)

P/N: AL5-3x180-1s 3" x 180' (45 ft²)

P/N: AL5-4x180-1s 4" x 180' (60 ft²)

P/N: AL5-6x180-1s 6" x 180' (90 ft²)

Electrically Conductive PSA (one Side)

Non-Conductive PSA (opposite side)

P/N: ST-5-6x180-2s 6" x 180' (90 ft²)

Xalon AL2 (2 mil) Aluminum Foil

Seaming Tape

Electrically Conductive PSA (one Side)

Non-Conductive PSA (opposite side)

P/N: AL2-6x180-2s 6" x 180' (90 ft²)

Xalon CU50 (formerly ST5CU) 5 mil Copper Foil

Seaming Tape

Electrically Conductive PSA

P/N: CU50-4x75-1s 4" x 75' (25 ft²)

Xalon Seaming Tape Foil Tape Specifications
Adhesive Thickness (Standard)	2 Mils (.002”) (0.0508 mm)
Adhesive Thickness (Electrically Conductive)	2 Mils (.002”) (0.0508 mm)
Aluminum Foil Tape Thickness	5 Mils (.005”) (0.127 mm)
Aluminum Foil Tape Thickness	2 Mils (.002") (0.0508 mm)
Copper Foil Tape Thickness	5 Mils (.005”) (0.127 mm)
Liner Type	76# Polycoated
Peel Adhesion (PSTC - 101/180°) (20 min @ RT)	Oz./Inch: 47 N/25mm Initial to SS: 13.2
Holding Power (PSTC 107 Mod./178°)	2.2 psi (1"x1"x1000g) @ RT ≥600 min.
Volume Resistivity (ASTM D2739-97 Modified) EC Only	0.06Ω•m
Observed Resistance (ASTM D2739-97 Modified) EC Only	5m Ω
Minimum Application Temperature	50° F (10° C)
No Load Applied, Service Temperature Range	-40° to 250° F

Xalon AL5 (ST5) Aluminum Seaming Tape Shielding Effectiveness

Xalon CU50 (ST5CU) Copper Seaming Tape Shielding Effectiveness

Xalon ST-5 Copper Tape Shielding Effectiveness Chart
