Universal Modular RF Shielded Cabinets

RF Shielded Test Cabinets



You Specify the Size



100 dB Attenuation from 14 KHz to 10 GHz

100 dB up to 40 GHz Available

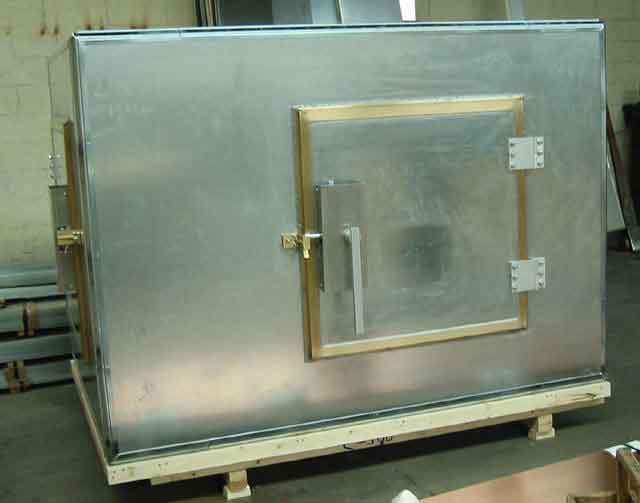

Series 26 Modular Construction

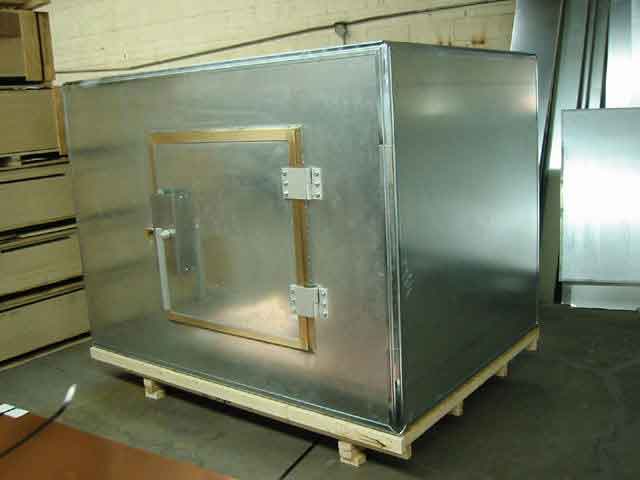

Universal RF Shielded Cabinet



RF Shielded Cabinet

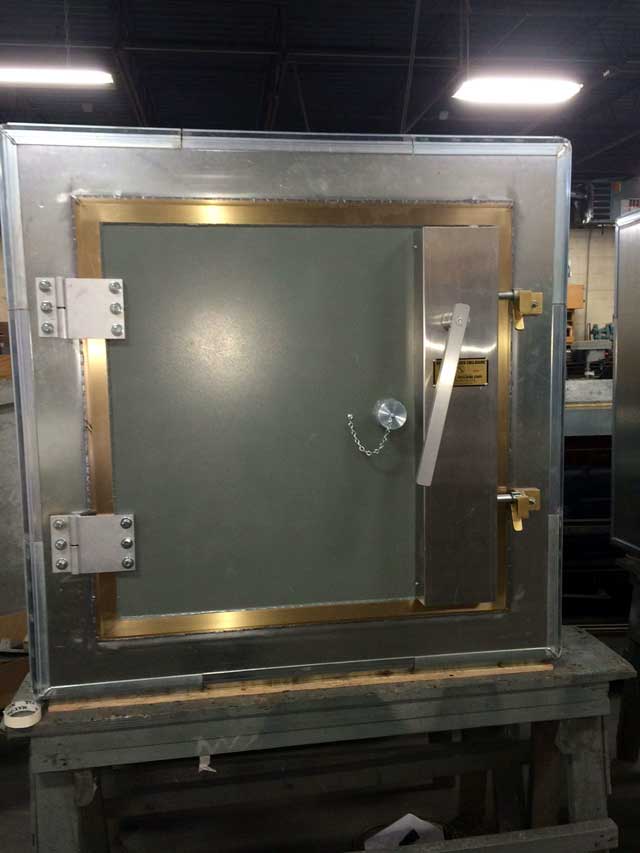

MIMO RF Shielded Cabinet

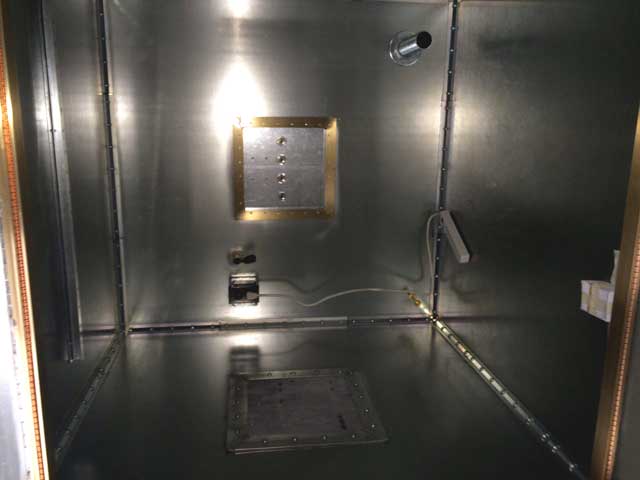

Inside RF Shield Enclosure

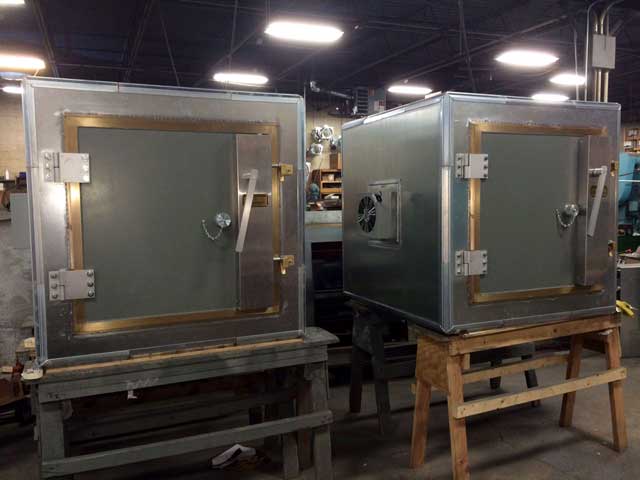

RF Shielded Wireless Test Enclosures

Laminated wood core panels with galvanized steel on both surfaces.


The series will provide 100db min. to 120db max. of attenuation from 14 KHz to 10 GHz when subject to electric fields and plane waves.


100 dB attenuation from 10 KHz to 40 GHz Available


Series 26 panels are interconnected with a framing system to form the enclosure.


Enclosures are completely assembled at the factory.


Can be dismantled, transported, re-erected, and still maintain their attenuation capabilities.


Parts are all numbered to enable customer to install chamber rapidly. (If shipped dismantled)

Factory Assembled and Certified

100 dB Attenuation from 10 KHz to 40 GHz

Series 26 Modular Construction

Universal RF Shielded Cabinet



EMI Shielded Cabinet
Cabinet on Removable Dolly



RF Shielded Modular Cabinet
Optional Dolly and Locking Swivel Casters

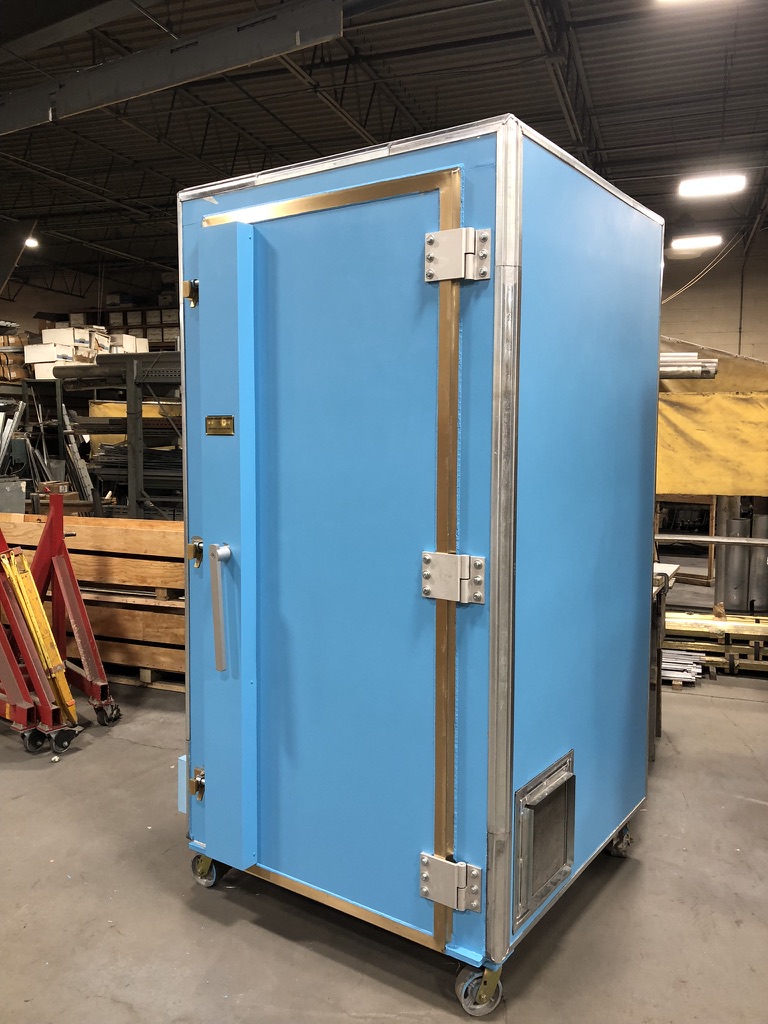

Rolling 100dB RF Shielded Cabinet

Rolling 100dB RF Shielded Cabinet



Modular RF Shielded Cabinets

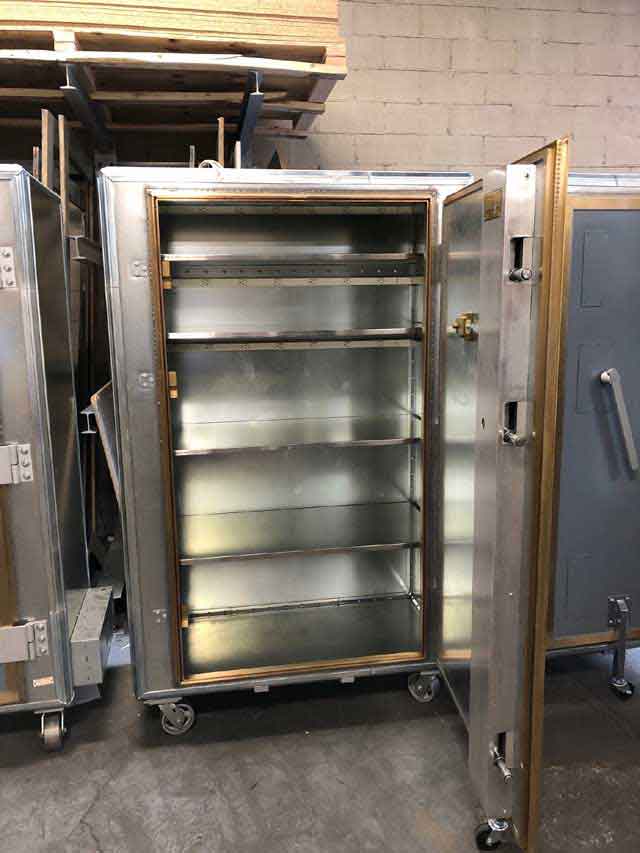

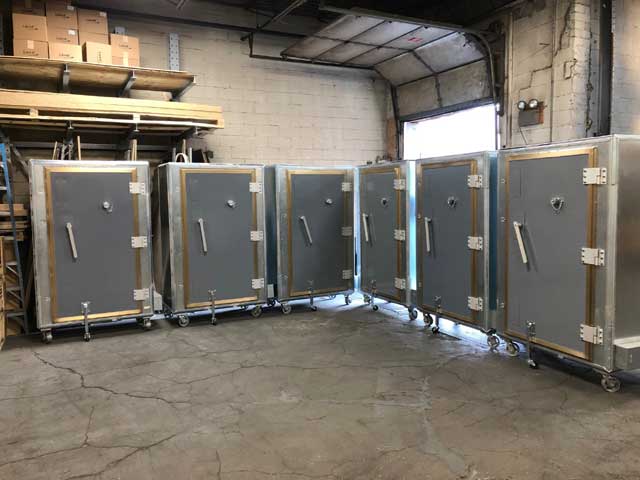

RF Shielded Cabinet with shelves

Shown with Door Opening Supports and Removable Locking Swivel Casters (No Dolly)

USC manufactures an entire series of prefabricated cabinets developed from the USC-26 and USC-44 designs. These cabinets are offered with the RCM-154 or RCM-254 door  design, thus providing the unit with extraordinary shielding attenuation.

The cabinets can be customized to any size requirements, and can be placed on desks or workbenches.

Welded cabinets are also available. If large mobile cabinets are required, movable platforms can be provided.

Each cabinet can be installed with RF accessories including:

RF Waveguide Air Vents

Ceiling or Side Mounted Exhaust Fans

Microwave or RF Absorber

RF Removable Connector Panels

RF Waveguide Feedthrus

RF Pipe Penetrations

LED Lighting

Workbenches

RF Power, Signal, Telephone, and Data Filters

Locking Wheeled Dollies


Each Universal cabinet is assembled in our facility

and tested according to the customers requirements

Prior to shipping


Shipped Fully Assembled

Full Turnkey Solutions

Full Line of Options



Transportation Limits (Maximum Size)

(Length to 10.5', Width to 8.0', Height to 8.5')

Minimum Size: 24"L x 24"W x 24" H



For Smaller Sizes (Click Here)

The USC-26 shielding system is designed to meet or exceed the vast majority of shielding requirements. This system is available in both standard modular enclosures and custom designed modular enclosures to meet exact specifications in government, industry, research and development, university, medical or hospital use. The basic design incorporates production techniques which require no gasketing materials of any kind. Weld nuts on the corner and intermediate framing members eliminate screws that penetrate the outer framing members; thus there can be no RF leakage as a result of a loose screw. In addition, this exclusive weld-nut feature provides a structure that is tamper-proof from the outside...an important security consideration.

USC cabinets can be designed to accommodate custom I/Os, computer racks, HVAC air vents, LED lighting, locking swivel casters, microwave absorber and/or ferrite tile.


Add FRP (Fiberglass Reinforced Plastic) Panels

 Available in Smooth or Embossed for Inside or Outside

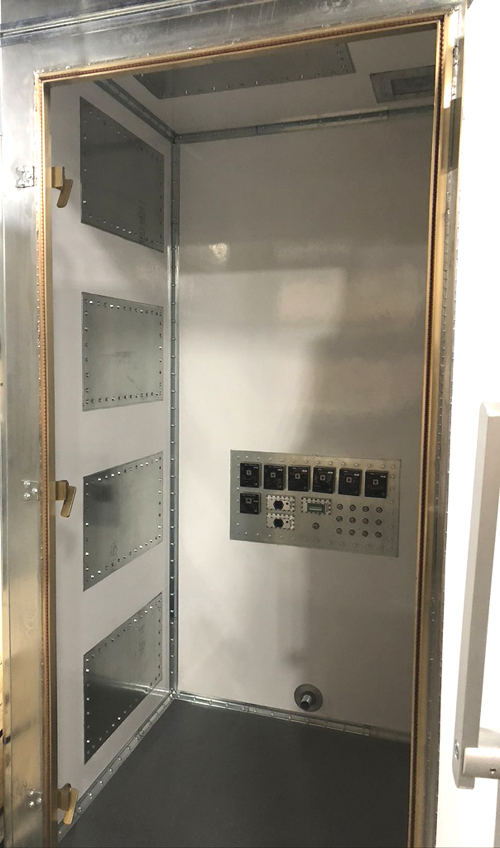

RF Shielded Cabinet Lined with White FRP

RF Shielded Cabinet Lined with Smooth White FRP

Our Fiberglass Reinforced Plastic (FRP) is a strong composite material that repels dirt and stains making it an ideal surface for high-use commercial settings and service areas that depend on sanitary conditions. Comprised of an impact-resistant material commonly used in the aerospace, automotive, marine, and construction industries, our FRP surfaces protect against rot, stain, mold and mildew, and will not dent or splinter even under the most strenuous conditions. If you need a wall or ceiling panel that is easy to clean and can withstand heavy use, this is the panel system for you.

Colors Available (Shown in Embossed)

Bright White FRP
Bright White
White FRP
White
Almond FRP
Almond

Ivory FRP
Ivory
Beige FRP
Beige
Taupe FRP
Taupe

Silver FRP
Silver
Gray FRP
Gray
Dark Gray FRP
Dark Gray

Sage FRP
Sage
Sky FRP
Sky
Black FRP
Black
