RF SHIELDED TESTING... MADE EASY! For Wired & Wireless Device Testing!

Large Ramsey RF Shielded Test Enclosures

Perfect for 802.11a, b, g, Wireless LAN, WiFi, WiMax, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth, Blade Servers, Cards, WAP's, Production Testing, Quality Assurance and other Wireless Devices Testing or just as a RF Shielded Enclosure

Wide Variety Of I/O Options! Great Isolation Up To 18GHZ! Models To Fit Any Application!

CUSTOM ORDERS ARE STANDARD!


All STE Standard Models are Temperature Rated from - 40° C to + 90° C

 (- 40° F to + 194° F)

(-55° to +100° C Available)

ALL STE Models are "In the Field" Serviceable

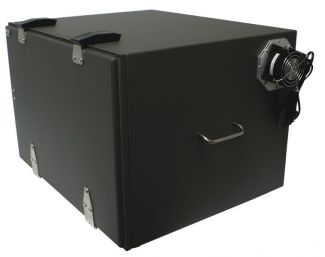

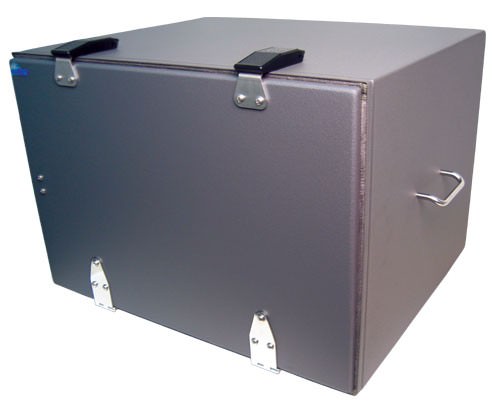

Ramsey STE4400

STE4400



Base Model Price $1,995.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 15.0"H x 22.0"W x 18.5"D


Interior: 14.2"H x 21.2"W x 17.5"D



24 dB Attenuation Absorber

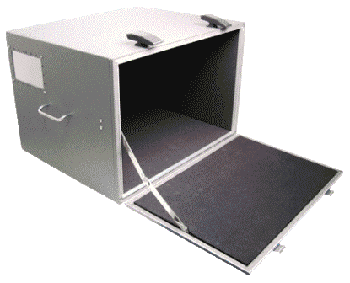

Ramsey STE4400

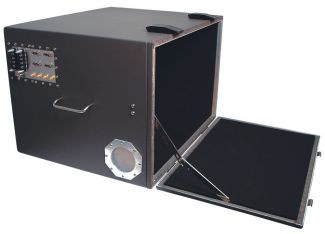

Ramsey STE4400





Data

Interference Free Testing For Your wireless equipment!

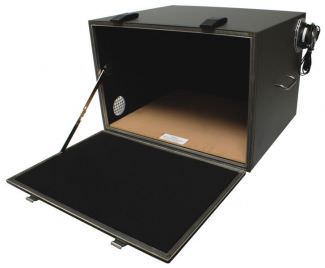

RF absorbent foam liner

Exclusive double lip RF tight gasket

Three - Universal I/O connector interface plates

  • 1 on the left side, 1 on the right side and 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)

Large hinge-down front door

Designed for your own test fixtures





Ramsey STE4400

STE4400
High performance RF test enclosure specifically engineered for the production floor! Designed to the same exacting specifications of the STE3300, the STE4400 offers a unique swing-down front door opening for easy device placement and removal. Easily accommodates a laptop computer to fit any test application. Extra deep work space accommodates the largest devices. Like the STE3300, your custom I/O configuration is milled into a removable 304 stainless steel panel to allow for future requirements when needed, giving you off the shelf delivery of your custom order!

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz
> 90 dB at 2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 15.0"H x 22.0"W x 18.5"D Interior: 14.2"H x 21.2"W x 17.5"D

Weight:

40lbs. / 18.14kg.

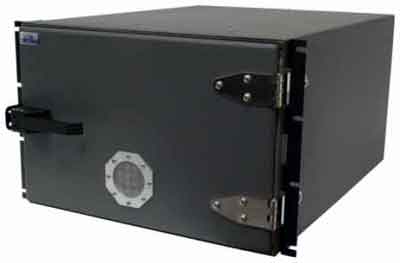

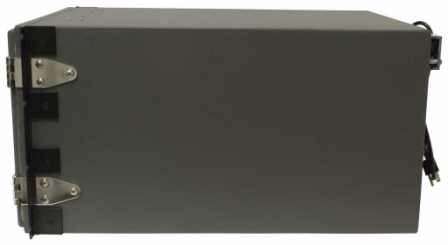

Ramsey STE4430

STE4430



Base Model Price $1,895.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 11.5"H x 17.1"W x 22.0"D


Interior: 10.1"H x 15.7"W x 20.7"D



24 dB Attenuation Absorber



Ramsey STE4430

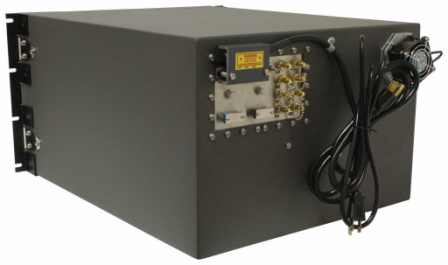

STE4430 Back





Data

Interference Free Testing FOR YOUR wireless equipment!



RF absorbent foam liner

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

Large hinge front door

Two 60mm vents

Designed for your own test fixtures

19" EIA rack mounts included

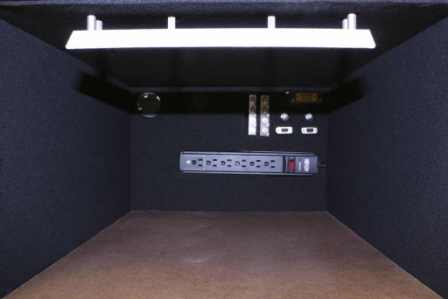

Ramsey STE4430 Inside EMI Enclosure



STE4430 RF Shielded Box

STE4430
High performance RF test enclosure specifically engineered for the production floor! Designed to the same exacting specifications of the STE3300, the STE4430 offers a unique swing-down front door opening for easy device placement and removal. Easily accommodates a laptop computer to fit any test application. Extra deep work space accommodates the largest devices. Like the STE3300, your custom I/O configuration is milled into a removable 304 stainless steel panel to allow for future requirements when needed, giving you off the shelf delivery of your custom order!

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz
> 90 dB at 2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions

Exterior: 11.5"H x 17.1"W x 22.0"D Interior: 10.1"H x 15.7"W x 20.7"D

Weight:

38lbs. / 17.28kg.

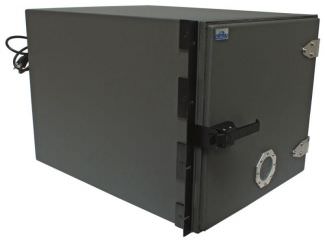

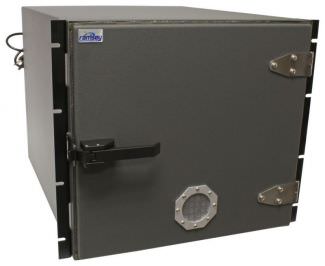

Ramsey STE4450

STE4450



Base Model Price $2,195.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 15.0"H x 17.1"W x 22.0"D


Interior: 14.0"H x 16.1"W x 21.0"D



24 dB Attenuation Absorber



Ramsey STE4450

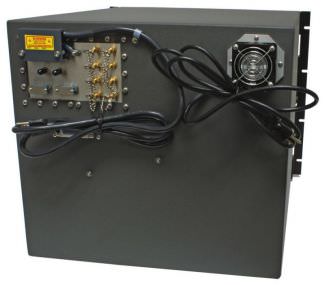

Ramsey STE4450





Data

Interference Free Testing FOR YOUR wireless equipment!



RF absorbent foam liner

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

Large hinge front door

Designed for your own test fixtures

Two 60mm vents

Rack Mounts Included



Ramsey STE4450





Ramsey STE4450

STE4450
High performance RF test enclosure specifically engineered for the production floor! Designed to the same exacting specifications of the STE3300, the STE4400 offers a unique swing-down front door opening for easy device placement and removal. Easily accommodates a laptop computer to fit any test application. Extra deep work space accommodates the largest devices. Like the STE3300, your custom I/O configuration is milled into a removable 304 stainless steel panel to allow for future requirements when needed, giving you off the shelf delivery of your custom order!

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz
> 90 dB at 2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 15.0"H x 17.1"W x 22.0"D Interior: 14.0"H x 16.1"W x 21.0"D

Weight:

40lbs. / 18.14kg.

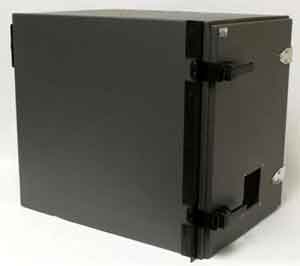

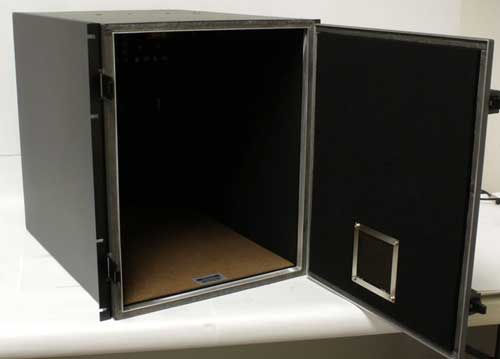

Ramsey STE4470

STE4470



Base Model Price $2,495.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 20.9"H x 17.1"W x 23.1"D

Interior: 19.6"H x 15.7"W x 21.0"D



24 dB Attenuation Absorber



STE4470 RF Shielded Test Enclosure



Ramsey STE4470 Shielded Box



Data

Interference Free Testing FOR YOUR bluetooth equipment!



RF absorbent foam liner

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

Large hinge front door

Designed for your own test fixtures

Two 120mm vents

Rack Mounts Included

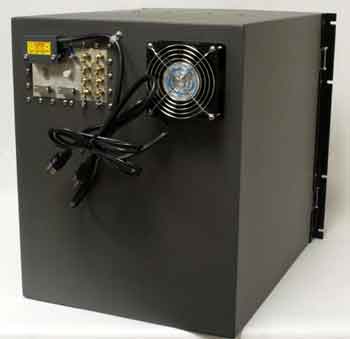

STE4470 Back Wall View





STE4470 EMI Shielded Box

STE4470
Designed to the same exacting specifications as the STE4400, the STE4470 introduces a front-loading swing away door for improved accessibility when opening and closing the enclosure. This enclosure also incorporates a 120mm ventilation system and offers either a 12 volt DC or 120 VAC fan option. In addition, you'll notice that the STE4470 comes standard with brackets for easy rack mounting.

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz
> 90 dB at 2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 20.9"H x 17.1"W x 23.1"D Interior: 19.6"H x 15.7"W x 21.0"D

Weight:

Weight: 50lbs. / 22.68kg.


Ramsey STE4480

STE4480



Base Model Price $2,995.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 24.5"H x 17.1"W x 23.5"D

 Interior:  22.7"H x 15.4"W x 21.8"D

 Weight:   70lbs. / 31.75kg.

 (MUST SHIP ON A PALLET)



24 dB Attenuation Absorber

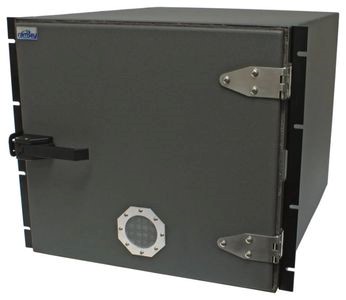

STE4480

Data

Interference Free Testing FOR YOUR WiFi equipment!



RF absorbent foam liner

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

Large hinge front door

Designed for your own test fixtures

Two passive 120mm air vents Included

Rack Mounts Included







STE4480
The STE4480 is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. The STE4480 can be used as a standalone enclosure or use the included brackets for mounting into a standard 19 inch rack system. This enclosure also incorporates a 120mm passive ventilation system standard with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)

≥ 95 dB from 20 MHz to 3 GHz
> 90 dB to 6 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard 1/2" RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 24.5"H x 17.1"W x 23.5"D Interior:  22.7"H x 15.4"W x 21.8"D

Weight:

Weight: 70lbs. / 31.75kg.

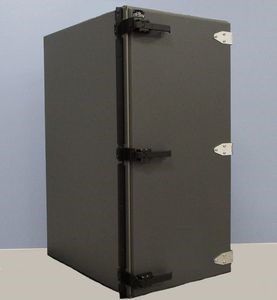

Ramsey STE4491

STE4491



Base Model Price $3,295.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 34.8"H x 17.1"W x 23.6"D

Interior:  33.0"H x 15.4"W x 21.9"D

Weight:    115lbs. / 52.16kg.

(SHIPS ON A PALLET)



24 dB Attenuation Absorber

STE4491

Data

NO OPTIONS INCLUDED, Fully customizable to your requirements

Designed for a wide variety of RF testing, function/s determined by user customization.

Perfect for 802.11a, b, g, n, ac, and ax

Wireless device testing  Bluetooth, RFID, 3G, 4G, 5G testing

Totally customizable with a wide variety of I/O options available



RF absorbent foam liner

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

Large hinge front door

Two passive 120mm air vents Included

Rack Mounts Included

Ideal for Server Rack RF Shielded Applications







STE4491
The STE4491 is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. The STE4491 can be used as a standalone enclosure or use the included brackets for mounting into a standard 19 inch rack system. This enclosure also incorporates a 120mm passive ventilation system standard with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)

≥ 95 dB from 20 MHz to 3 GHz
> 90 dB to 6 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard 1/2" RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 34.8"H x 17.1"W x 23.6"D Interior:  33.0"H x 15.4"W x 21.9"D (optional 3/4" absorber foam)

Weight:

Weight:  115lbs. / 52.16kg.

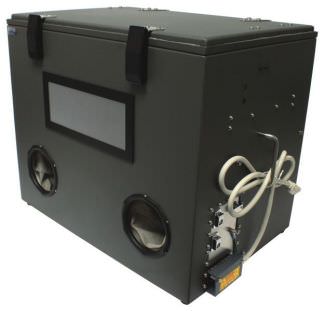

Ramsey STE4500

STE4500



Base Model Price $3,195.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


Exterior: 19.0"H x 22.5"W x 15.5"D


Interior: 18.0"H x 21.2"W x 14.0"D



24 dB Attenuation Absorber



Ramsey STE4500





Ramsey STE4500



Data

Interference Free Testing For Your microwave equipment!



Designed for hands-on manipulation of larger devices under test

Exclusive double lip RF tight gasket

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)

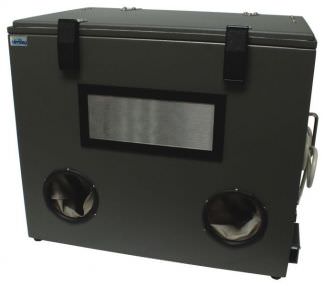

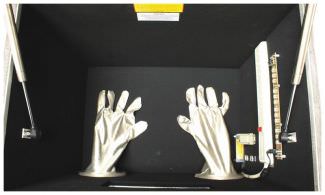

RF tight "hands-on" silver mesh gloves

RF tight illuminated viewing window

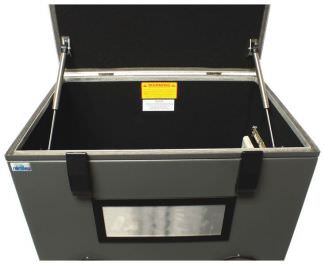

Dual gas filled cover struts



Ramsey STE4500





Ramsey STE4500

STE4500
The popularity of the STE4400's larger size along with the patented hands-on manipulability of the STE3000B brought you the STE4500! The exclusive RF tight hands-on silver mesh gloves and illuminated viewing window are integral to the large 22.5"W x 18" H wide front of the enclosure. Dual gas filled struts hold the hinged top open for easy access for the largest devices, including laptops! Like other STE series enclosures, a universal stainless steel I/O connecter interface plate is used to provide you any combinations of custom milled connectors and I/O's that you may require.

SPECIFICATIONS

RF Isolation:

≥ 100 dB from 20 MHz to 1 GHz
> 90 dB at 2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 60 dB at 10 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

9.5"W x 3.5"H Shielded View Window in Front Wall

Interior Lighting:

LED lights inside to illuminate the interior are standard

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

4 Terminal Filtered AC, 20 Amp Max. is standard.

Overall Dimensions:

Exterior: 19.0"H x 22.5"W x 15.5"D Interior: 18.0"H x 21.2"W x 14.0"D

Weight:

40lbs. / 18.14kg.

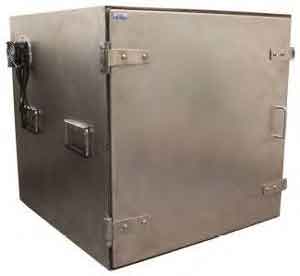

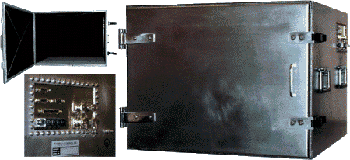

Ramsey STE5000

STE5000



Base Model Price $3,495.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz



Exterior: 19.0"H x 25.0"W x 25.0"D


Interior: 17.5"H x 23.5"W x 23.5"D



24 dB Attenuation Absorber



STE5000 RF Shielded Test Enclosure with Connectors Installed

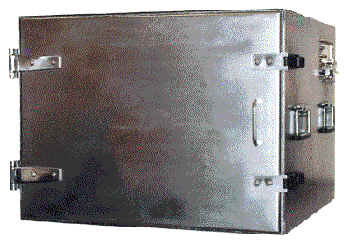

Ramsey STE5000



Data

TEST RF-FREE ON YOUR BENCH OR CART!



Designed for full size and rack mounted equipment testing

RF absorbent foam liner

Exclusive double lip RF tight gasket

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)

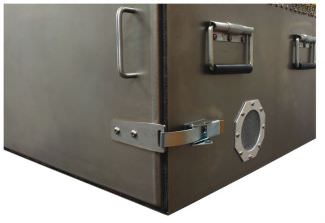

Large sturdy Stainless Steel construction



Ramsey STE5000

STE5000
The STE5000 enclosure represents a breakthrough in RF shielded enclosure design and value.  The enclosure is roomy enough to hold 19" rack sized instruments and provides -110dB of shielding, and enables one to test anywhere in your facility!  The box is constructed of type 304 stainless steel, and lined with microwave absorbent foam.  Our unique double lip gasketed closure maintains maximum shielding while allowing a full 24" x 18" opening.  Heavy-duty hinges and latches plus interior bracing insures the physical integrity of the enclosure.  RF attenuation is -110dB at 1GHz, and -80dB at 18GHz!  A 4" x 6" precision machined I/O connector panel has been integrated into the design of the enclosure.

SPECIFICATIONS

RF Isolation:

≥ 110 dB from 20MHz to 1GHz
≥ 110 dB at 1 GHz
≥ 100 dB at 3 GHz
≥  95 dB at 6 GHz
≥  80 dB at 18 GHz

Finish:

304 Stainless Steel

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 4.0" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 19.0"H x 25.0"W x 25.0"D Interior: 17.5"H x 23.5"W x 23.5"D

Weight:

120lbs. / 54.4kg.


Ramsey STE5100

STE5100



Base Model Price $3,995.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz



Exterior: 19.0"H x 25.0"W x 25.0"D


Interior: 17.5"H x 23.5"W x 23.5"D


24 dB Attenuation Absorber

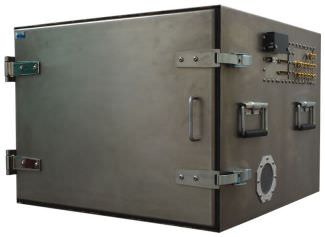

Ramsey STE5100

Shown with Optional Vent



Data

TEST Without RF Interference ON YOUR BENCH OR CART!



RF tight illuminated viewing window (9.5"W x 3.5"H) to
see device displays and indicators

Large sturdy Stainless Steel construction

Designed for full size and rack mounted
equipment testing with visual displays

Exclusive double lip RF tight gasket

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)

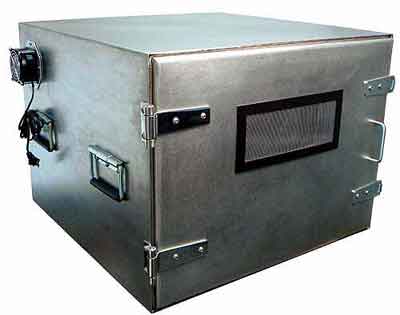

STE5100 With Vent and Fan



STE5100 with Vent

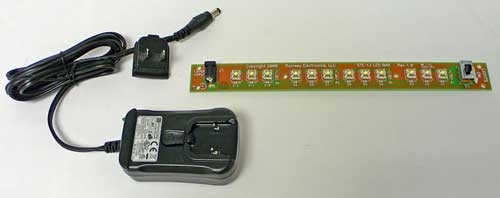

LED light strip

STE5100
The stainless steel STE5000 set records for both equipment compatibility and reliability in a high volume manufacturers environment. Designed to fit the largest equipment inside for rock solid EMI and RF isolated tests and measurements. Built to the same design specifications as the STE5000 above, the STE5100 also includes our exclusive illuminated RF tight viewing window on the front door. Now you can see indicators, displays, and screens on your DUT inside the STE while the tests are underway. Critically important for laptops, wireless terminals, and other devices that must be seen under test.

The STE5100 enclosure represents a breakthrough in RF shielded enclosure design and value.  The enclosure is roomy enough to hold 19" rack sized instruments and provides -110dB of shielding, and enables one to test anywhere in your facility!  The box is constructed of type 304 stainless steel, and lined with microwave absorbent foam.  Our unique double lip gasketed closure maintains maximum shielding while allowing a full 24" x 18" opening.  Heavy-duty hinges and latches plus interior bracing insures the physical integrity of the enclosure.  RF attenuation is -110dB at 1GHz, and -80dB at 18GHz!  A 4" x 6" precision machined I/O connector panel has been integrated into the design of the enclosure.

SPECIFICATIONS

RF Isolation:

≥ 110 dB from 20 MHz to 1GHz
≥ 110 dB at 1 GHz
≥ 100 dB at 3 GHz
≥  95 dB at 6 GHz
≥  80 dB at 18 GHz

Finish:

304 Stainless Steel

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

9.5"W x 3.5"H Shielded View Window in Door

Interior Lighting:

LED lights inside to illuminate the interior are standard

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 4.0" high, 0.090" thick, Stainless Steel

Connectors:

4 Terminal Filtered AC, 20 Amp Max. is standard.

Overall Dimensions:

Exterior: 19.0"H x 25.0"W x 25.0"D Interior: 17.5"H x 23.5"W x 23.5"D

Weight:

125lbs. / 56.7kg.


Ramsey STE5125

STE5125



Base Model Price $3,995.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz



Exterior: 25.0"H x 25.0"W x 25.0"D

Interior: 23.5"H x 23.5"W x 23.5"D



24 dB Attenuation Absorber



STE5125

Shown with Optional Vent



Data

Eliminate Ambient Noise ON YOUR BENCH OR TABLE!



Large sturdy Stainless Steel construction

Designed for full size and rack mounted
equipment testing with visual displays

Exclusive double lip RF tight gasket

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)

STE5125
The STE5125 big brother of the STE5000 represents a breakthrough in RF shielded enclosure design and value. The enclosure is roomy enough to hold 19" rack sized instruments and provides -110dB of shielding, and enables one to test anywhere in your facility! The box is constructed of type 304 stainless steel, and lined with microwave absorbent foam. Our unique double lip gasketed closure maintains maximum shielding while allowing a full 23.5" x 23.5" opening. Heavy-duty hinges and latches plus interior bracing insures the physical integrity of the enclosure. RF attenuation is -110dB at 1GHz, and -80dB at 18GHz! A 3.5" x 6" precision machined removable 304 stainless steel panel has been integrated into the design of the enclosure.

SPECIFICATIONS

RF Isolation:

≥ 110 dB from 20MHz to 1 GHz
≥ 110 dB at 1 GHz
≥ 100 dB at 3 GHz
≥  95 dB at 6 GHz
≥  80 dB at 18 GHz

Finish:

304 Stainless Steel

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

Optional

Interior Lighting:

Optional

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 4.0" high, 0.090" thick, Stainless Steel

Connectors:

None standard.

Overall Dimensions:

Exterior: 25.0"H x 25.0"W x 25.0"D Interior: 23.5"H x 23.5"W x 23.5"D

Weight:

135lbs. / 61.23kg.


Ramsey STE6000

STE6000



Base Model Price $4,295.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz



Exterior: 14.0"H x 36.0"W x 24.0"D


Interior: 12.5"H x 35.0"W x 23.0"D



24 dB Attenuation Absorber

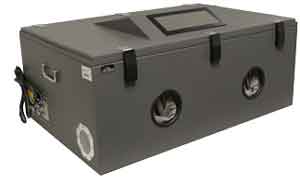

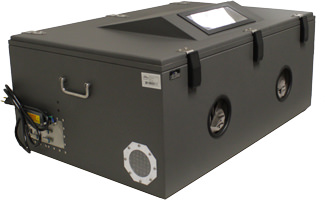

Ramsey STE6000

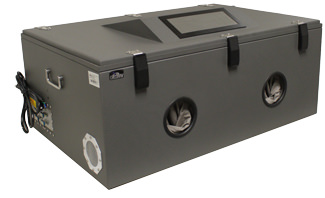

Ramsey STE6000



Data

TEST RFI-FREE ON YOUR BENCH OR CART!

Designed for hands-on manipulation of larger devices under test

RF absorbent foam liner

Exclusive double lip RF tight gasket

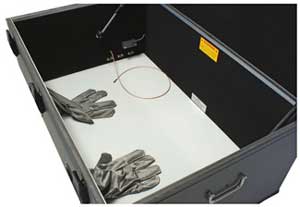

RF tight "hands-on" silver mesh gloves

RF tight illuminated viewing window

Interior LED Lighting

Dual gas filled cover struts

Single handle, easy release latch system

Designed for hands-on adjustment and alignment

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)



 Ramsey STE6000

STE6000
Due to customer demand for larger size enclosures, Ramsey is pleased to announce a new model to our fleet of RF Shielded Test Enclosures, the STE6000. Designed after one of our most popular enclosures, the STE3000, the STE6000 offers a View Window, Glove Holes and a unique single bar, easy release latch system. With the roomy interior, this model is very well suited for testing large devices or multiple devices at one time.

The STE6000 is constructed of .090 Aluminum, utilizing precision machined tolerances throughout to maintain an RF-Tight environment. Our special "double lip" technology gives you RF isolation greater than 90dB down at 1GHz! The heavy duty RF sealed cover hinges open and close with a precision air piston. Once closed, a large RF tight viewing window overlooks the entire working area within the enclosure. Hands-on troubleshooting, tuning and access to the device under test are accomplished using specially designed, silver impregnated, ultra fine mesh gloves that offer excellent manual dexterity and hands-on access to the equipment under test.

The entire interior is lined with RF absorbent foam that provides 24dB attenuation. The work area has built-in illumination using an LED light board powered by the RF Filtered AC Supply. All of the I/O connections and interfaces are provided within a precision machined I/O panel. This panel can be configured with your own custom connectors and interface options. It also allows your enclosure to be "custom configured" from a standard stock enclosure. For you that means speedy delivery and lower costs! Simply choose the I/O and options from the Options Tab and your enclosure will be configured to your spec!

SPECIFICATIONS

RF Isolation:

≥ 80 dB from 20 MHz to 1 GHz
≥ 90 dB at 2 GHz
≥ 90 dB at 4 GHz
≥ 80 dB at 6 GHz

Finish:

Mist gray epoxy powder over .090 Aluminum

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

9.5"W x 3.5"H Shielded View Window in Door

Interior Lighting:

LED lights inside to illuminate the interior are standard

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 4.0" high, 0.090" thick, Stainless Steel

Connectors:

6-Pole filtered Barrier Strip feedthrough, 120VAC/20A 6-Outlet surge suppressed power strip

Overall Dimensions:

Exterior: 14.0"H x 36.0"W x 24.0"D Interior: 12.5"H x 35.0"W x 23.0"D

Weight:

80lbs. / 36.29kg.


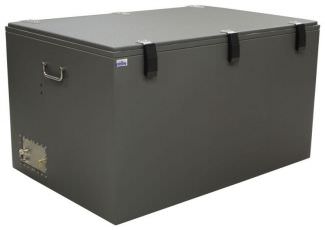

Ramsey STE6300

STE6300



Base Model Price $3,795.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz



Exterior: 20.0"H x 36.0"W x 24.0"D


Interior: 18.5"H x 35.0"W x 23.0"D


24 dB Attenuation Absorber



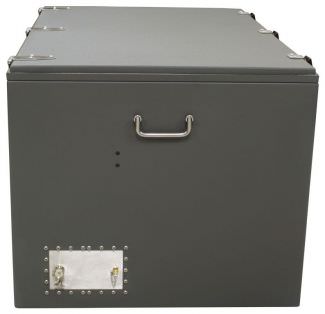

Ramsey STE6300



Ramsey STE6300



Data

TEST EMI NOISE-FREE ON YOUR BENCH OR CART!

Designed to test complete systems

RF absorbent foam liner

Exclusive double lip RF tight gasket

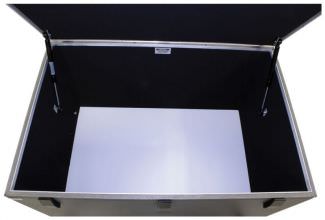

Dual gas filled cover struts

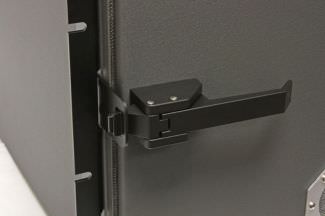

Single handle, easy release latch system

Three - Universal I/O connector interface plates

  • 1 on the left side

  • 1 on the right side

  • 1 on the back side

Two - 120MM Honeycomb Vents (No Fan)



 Ramsey STE6300

STE6300
Ramsey is pleased to announce the largest model in our fleet of RF Shielded Test Enclosures, the STE6300. This enclosure is modeled after the STE6000, without the View Window and Glove Holes. The STE6300 offers a unique single bar, easy release latch system. With the roomy interior, this model is very well suited for testing large devices or multiple devices at one time. The universal I/O panel allows for customization with near off the shelf manufacturing time.
The STE6300 is constructed of .090 Aluminum, utilizing precision machined tolerances throughout to maintain an RF-Tight environment. Our special "double lip" technology gives you RF isolation greater than 90dB down at 1GHz! The heavy duty RF sealed cover hinges open and closed with a precision air piston. The entire interior is lined with RF absorbent foam that provides 24dB attenuation. All of the I/O connections and interfaces are provided within a precision machined I/O panel. This panel can be configured with your own custom connectors and interface options. It also allows your enclosure to be "custom configured" from a standard stock enclosure. For you that means speedy delivery and lower costs! Simply choose the I/O and options from the Options Tab and your enclosure will be configured to your spec!

SPECIFICATIONS

RF Isolation:

≥ 80 dB from 20 MHz to 1 GHz
≥ 90 dB at 2 GHz
≥ 90 dB at 4 GHz
≥ 80 dB at 6 GHz

Finish:

Mist gray epoxy powder over .090 Aluminum

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

Optional

Interior Lighting:

Optional

Connector Panel:

Three - Blank Removable is standard, 6.0" wide x 4.0" high, 0.090" thick, Stainless Steel

Connectors:

None provided standard

Overall Dimensions:

Exterior: 20.0"H x 36.0"W x 24.0"D Interior: 18.5"H x 35.0"W x 23.0"D

Weight:

95lbs. / 43.1kg.



Copyright © 2001-2024  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
