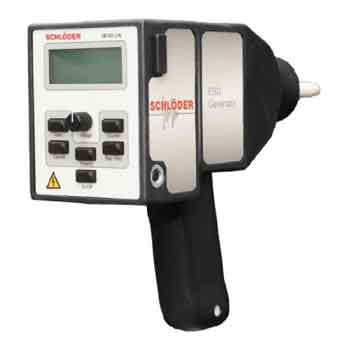

Schloder SESD 216 ESD Simulator Gun

Schloeder Logo



SESD 216



FOR Direct, Indirect &

Diagnostic ESD Testing



SESD-216



16.5 kV AIR Discharge
10 kV CONTACT Discharge
ESD Simulator 16.5 kV
Battery or mains operation
Predefined tests & Standard and others



COMPLIANT WITH:

IEC61000-4-2



Data

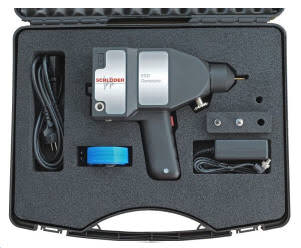

ESD Gun in Case



SESD 216 ESD Gun Video

Technical Data

Generator:
Output voltage, adjustment via digital potentiometer.
Test mode air discharge 0,2 kV to 16,5 kV, 100V steps.
Test mode contact discharge 0,2 kV to 10,0 kV, 100V steps.
Polarity of the output voltage positive and negative.
Test modes air- and contact discharge.
Repetition frequency of the discharge pulses.
Air discharge single pulse or repeated *
*(frequency depends on the distance between the discharge electrodes and the examinant)
Contact discharge single pulse, 0,1 Hz, 0,2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz.
Permanent operation possible at air- and contact discharge.
Holding time 5 sec.
Pre selectable counter 1 - 9999.
Discharge electrodes in conformity to IEC / EN 61000-4-2.
Energy storage capacity 150 pF ± 10% (customer specific on demand).
Discharge resistor 330 Ohm ± 5% (customer specific on demand).
Operation temperature range 0 - 40° Celsius.
Relative humidity 0 - 60%.
Weight app. 1260 g.

Power supply:
Supply voltage IN: 100-240 VAC / 47-63 Hz; OUT: 9 VAC / 3 A
Weight app. 200 g

Options:
SESD 3026 Test tip, length 50 mm with spring pin, for contact discharge.
SESD 271 VCP - vertical coupling plate, include SESD 272.
SESD 272 Earth cable include 2 x 470 kohm resistor, 2m long.

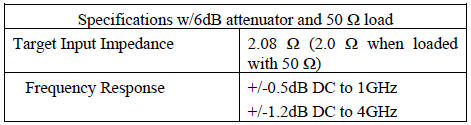

SESD 8800-4 ESD verification set 2 Ohm (4 GHz) to verify the ESD pulse.
SESD 30 S100 Optical set and remote software.

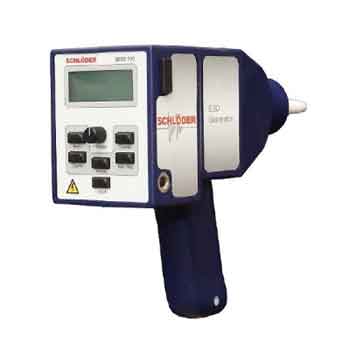

Schloder SESD 230 ESD Simulator Gun

Schloeder Logo



SESD 230



FOR Direct, Indirect &

Diagnostic ESD Testing



SESD-230



30 kV AIR Discharge
30 kV CONTACT Discharge
ESD Simulator 30 kV
Battery or mains operation
Predefined tests & Standard and others



COMPLIANT WITH:

IEC61000-4-2



Data



ESD Gun in Case



Schloder SESD 230 ESD Simulator Gun Video

Technical Data

Generator:
Output voltage, adjustment via digital potentiometer.
Test mode air discharge 0,5 kV to 30,0 kV, 100V steps.
Test mode contact discharge 0,5 kV to 30,0 kV, 100V steps.
Polarity of the output voltage positive and negative.
Test modes air- and contact discharge.
Repetition frequency of the discharge pulses.
Air discharge single pulse or repeated *
*(frequency depends on the distance between the discharge electrodes and the examinant)
Contact discharge single pulse, 0,1 Hz, 0,2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz.
Permanent operation possible at air- and contact discharge.
Holding time 5 sec.
Pre selectable counter 1 - 9999.
Discharge electrodes in conformity to IEC / EN 61000-4-2.
Energy storage capacity 150 pF ± 10% (customer specific on demand).
Discharge resistor 330 Ohm ± 5% (customer specific on demand).
Operation temperature range 0 - 40° Celsius.
Relative humidity 0 - 60%.
Weight app. 1470 g.

Power supply
Supply voltage IN: 100-240 VAC / 47-63 Hz; OUT: 9 VDC / 3 A
Weight app. 200 g

Options:
SESD 3025 Test tip, diameter 30 mm, for AIR discharge > 15 kV.
SESD 3026 Test tip, length 50 mm with spring pin, for contact discharge.
SESD 271 VCP - vertical coupling plate, include SESD 272.
SESD 272 Earth cable include 2 x 470 kohm resistor, 2m long.
SESD 8800-4 ESD verification set 2 Ohm (4 GHz) to verify the ESD pulse.
SESD 30 S100 Optical set and remote software.

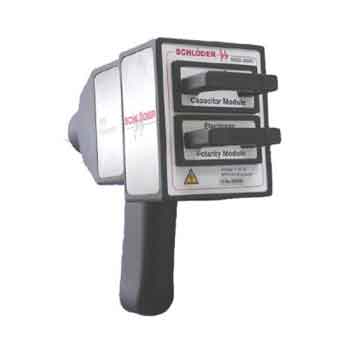

Schloder SESD 30000 ESD Simulator Gun

Schloeder Logo



SESD 30000



FOR Direct, Indirect &

Diagnostic ESD Testing



SESD-30000



30 kV AIR Discharge
30 kV CONTACT Discharge
ESD Simulator 30 kV
Battery or mains operation
Automatic charge absorber integrated



COMPLIANT WITH:

ISO10605

TR10605

IEC61000-4-2



Data

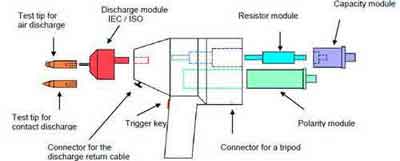

SESD 30000 ESD Gun Diagram



Schloder SESD 30000 ESD Simulator Gun Video

Technical Data

Generator:
Output voltage: adjustable via digital pot.
Air discharge: 1 kV up to 30 kV in steps of 100 V. Contact discharge: 1 kV up to 30,0 kV (with contact control) in steps of 100 V.
Polarity: positive and negative.
Mode: air discharge and contact discharge.
Repetition frequency of the discharge pulses.
Air discharge: single or multiple pulses (frequency depends on the distance between probe and EUT)
Contact discharge: single pulse, 0.1 Hz, 0.2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz.
Continuous operation: at air discharge and contact discharge.
Pre-selection counter: 1 - 9999
Impedance standard: 150 pF / 330
(IEC / EN 61000-4-2)
Others: see options
Probes: acc. IEC / EN 61000-4-2 and ISO / TR 10605
Operation temperature: 0 - 40° Centigrade
Rel. humidity: 0 - 60%
Weight: app. 1500 g

Options
SESD 30000 P ESD generator includes electronically polarity module.
SESD 30000 A ESD generator for battery and / or main operation.
SESD 30 Cxxx Capacity module (values up to 1000 pF)
SESD 30 Rxxx Resistor module (values (0) 50 Ohm up to > 5 kOhm).
SESD 30 P200 Electronic polarity module
SESD 30 M200 Faster discharging module (rise time to 0,3 ns).
SESD 30 S100 Optical set and remote software
SESD 30 MOD-1 HBM - module 100 pF / 1500 Ohm with rise time > 5 ns
SESD 271 VCP - vertical coupling plate, include earth cable SESD 272.
SESD 272 Earth cable include 2 x 470 kOhm resistor, 2m long.
SESD 3025 Test tip, diameter 30 mm, for AIR discharge > 15 kV.
SEDS 3026 Test tip, length 50 mm with spring pin, for automatic tests with contact discharge.
SESD 8800-4 ESD verification set 2 Ohm (4 GHz) to verify the ESD pulse.

Schloder SESD 2910 ESD Test System

Schloeder Logo



SESD 2910



Test electro-explosive devices



Schloeder SESD 2910



The test generator SESD 2910 was developed especially "for Proof Immunity to Disturbance of Electro Explosive Devices (EED) toward Pulses of Electrostatic Discharge.


The SESD 2910 simulates electrostatic discharge as defined in the EN 13763-13, March 2004 and the military standard VG 95378-11, May 1997.



COMPLIANT WITH:

EN 13763-13
VG 95378-11
ISO 10605 Automotive



Data

Technical Data

♦ Output voltage 1 kV to 30 kV
♦ Polarity of the output voltage Positive und negative
♦ Test mode Air and contact discharge
♦ Polarity changing Automatically
♦ Capacity module see options >module>
♦ Resistor module see options >module>
♦ Repetition frequency of the 1 / 5 / 10 / 30 sec. at contact / relay discharge discharge pulses
♦ Pre-selectable counter 1 - 9990
♦ Safety circuit Output for safety switch and warning lamps red /green.
The high voltage is discharged internal within 50 ms, in case the safety circuit is interrupt.
♦ Main 230 VAC, 50 Hz, 3A 110 VAC, 60 Hz on demand

Dimensions:

♦ Width: 34.2 cm
♦ High: 26.5 cm
♦ Depth: 38.0 cm (without grip)
♦ Weight: app. 20 kg

The generator can be used also to test electrical detonators in automotive application for example Airbags

ESDEMC ES613 ESD Simulator Gun

ESDEMC Technology



ES613



FOR Direct, Indirect &

Diagnostic ESD Testing

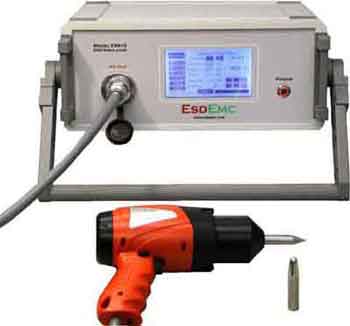

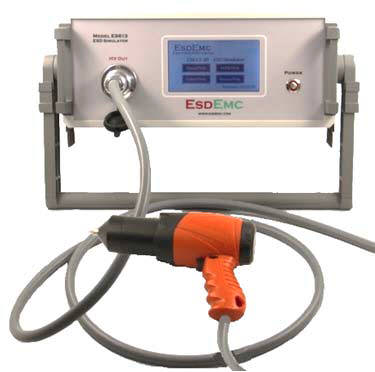

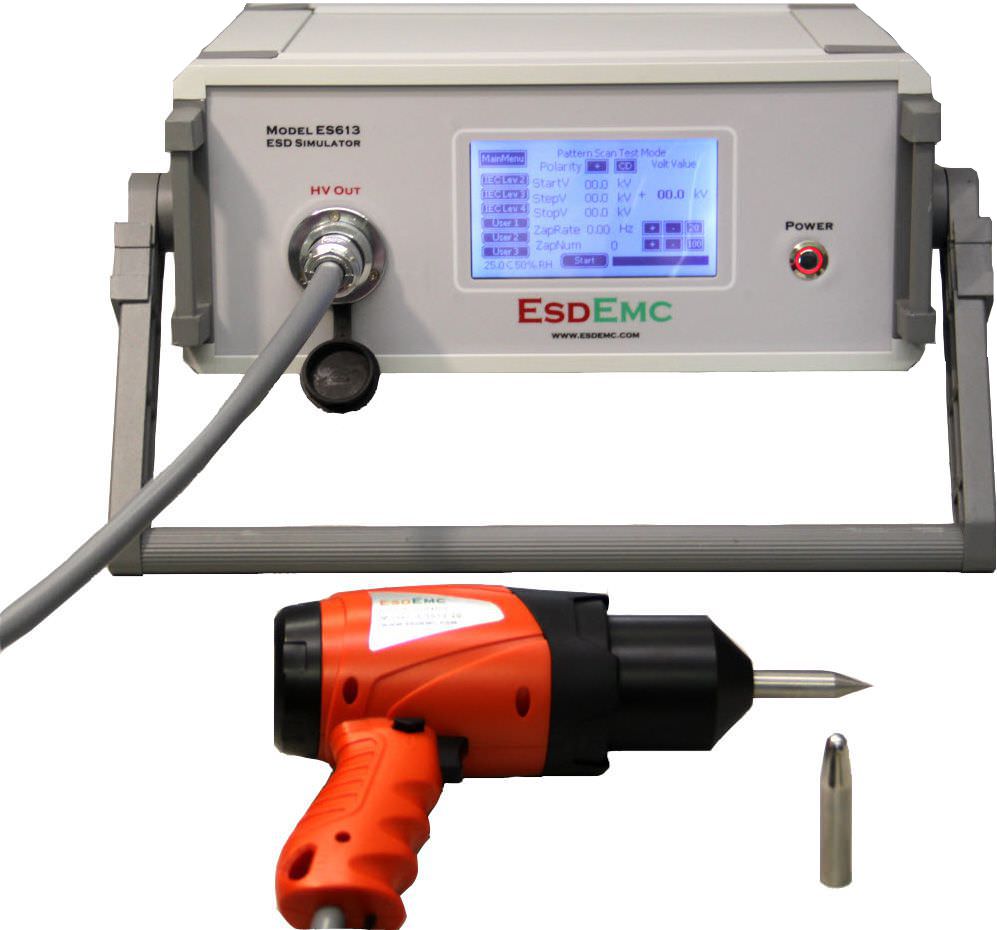

ESDEMC ES613 ESD Simulator



ES613 ESD Simulatoris advanced ESD simulator designed with robust hardware and many added test features and configurations. It satisfies the requirements for both IEC6100-4-2:2008 and ISO10605:2008 (ES613-20 up to ±20 or ES613-30 up ±30 kV).

±20 or ±30 kV



COMPLIANT WITH:

ISO10605

SAE J1113-13
 SAE J1455

IEC610004-2

Specifications:
Contact and air discharge modes
High voltage supply / calibration mode
ESD source voltage to ±20kV/30kV
ESD pulse counter
Discharge RC modules (±10%) 150pF/330, 150pF/2k, 330pF/330, 330pF/2k

Features:
Small and light ESD gun
LCD display with touch screen
Voltage stability ≤ 0.5%
AD, CD, and HV supply modes
Secondary discharge detector
Temperature and humidity monitor
Remote control software
Firmware upgrades through USB
Pulse Modes: single, 1p/s, 2p/s, 5p/s,10p/s, and 20p/s



ES613 L2

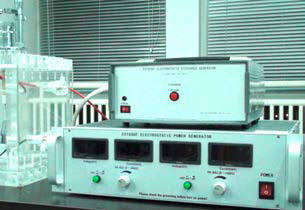

ESDEMC EST806 Electrostatic Firing/Igniter/Spark Sensitivity Test System

ESDEMC Technology



EST806



±50kV



EST806 Electrostatic Meter



EST806 Series Electrostatic Firing/ Igniter /Spark Sensitivity test systems are designed for military electrostatic discharge test standards (MIL STD 1512, 1576 (Method 2205), 1751A, (Methods 1031, 1032 & 1033), 331C.
It contains several test setups and configurations to determine personnel borne ESD (0 to ±30kV), helicopter borne ESD (0 to ±300kV), and test the ESD susceptibility of pyrotechnic devices, powders and liquids (0 to ±50kV).


Standards:
MIL-STD-331C
MIL-STD-1512
MIL-STD-1576

Data

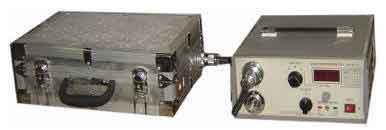

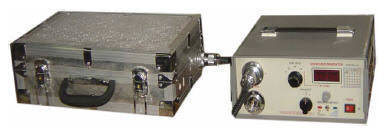

EST806 Electrostatic Firing/Igniter/Spark Sensitivity Meter
Features:
LED display, high resolution.
Stable and accurate.
Voltage output 0.01 to ±30kV
Current output up to 1000 µA.
Applications:
ESD testing of electro-explosive devices (EED), fuses, electric detonators, explosives, etc.
ESD testing of powders, liquids and pyrotechnic devices
Specifications:
High output DC voltage (0.01 to 30kV / 300kV)
Drifting: <0.5% per 24 hours
Drain voltage: <0.5% charging voltage when the high-pressure switch is on.
Discharge resistance:
0Ω, 500 ±25Ω, 5000 ±250Ω
Discharge capacitor: 500 ±25pF
Discharge Inductance: < 5uH
Full Acrylic Test Chamber
Support and Services:
Lifetime technical support
1 year warranty (Extendable)

 Calibrate Your ESD Simulator
