Conducted EMC Test Equipment


 Laplace Instruments LAPLACE INSTRUMENTS   Frankonia Logo Schwarzbeck



Conducted EMC Test Equipment Index

Conducted Immunity Test System

EMC PreSelectors

LISN's

RF Absorbing Clamp

Spectrum Analyzer



Conducted Immunity Test System

Frankonia Logo



CIT-10

 with integrated 13W-power amplifier


CIT-10/75

 with integrated 75W-power amplifier


CIT-10/W

 without internal power amplifier

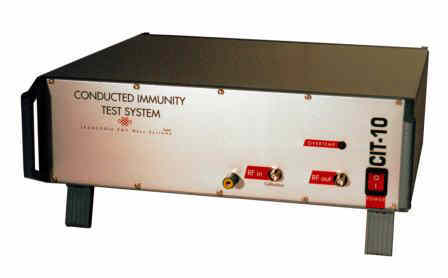

CIT-10 Immunity Test System



CIT-10 Immunity Test System





Data

Manual

Lowest Cost Complete System Available



Introducing the new CIT-10 from Frankonia, a fully automated system to perform immunity tests to conducted disturbances induced by radio frequency fields according to EN 61000-4-6 / IEC 1000-4-6. Its integrated function generator allows amplitude modulation from 1Hz to 100kHz with 0% to 100%, as well as pulse modulation from 1Hz to 100kHz with a duty cycle of 10% to 90%.EMC compliance tests to EN standards

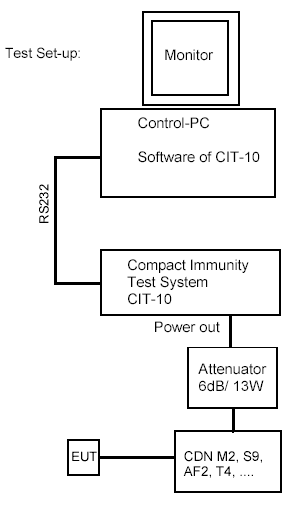

CIT -10, a computer-based system can perform the same tasks as traditional instruments with the added benefits of flexibility and efficiency. Once the driver and application software are installed you immediately start testing. The results are printed, saved or distributed to any other computer within your company or the World Wide Web. The calibration for all coupling/decoupling devices is performed automatically, with the software creating a specific calibration file for any individual CDN or EM-clamp. No calibration at all is needed for our CDNs or EM-clamp - they are delivered factory calibrated with a calibration file.



All In One Unit

Function Generator

Signal Generator

RF Millivoltmeter

RF Power Amplifier

Internal modulation:
AM: 1Hz-100 kHz, 0...100%
PM: 1Hz-100 kHz, 10 - 90% duty cycle

Output power metering during test

Manual and automatic EUT monitoring

Standard software included



EMC Conducted Immunity Test System


EN 61000-4-6

IEC 61000-4-6

N42.32-2006 Section 8.4

N42.33-2006 Section 8.4

N42.34-2006 Section 8.4

N42.35-2006 Section 8.4





Most common Coupling/Decoupling Networks (CDNs), 150kHz to 230MHz for CIT-10 System

Type

Use for

Number of lines

  Type of connection

CDN-M1

unshielded mains supplies

1

4mm MC socket

CDN-M2

unshielded mains supplies

2

4mm MC socket

CDN-M3

unshielded mains supplies

3

4mm MC socket

CDN-M2+3

unshielded mains supplies

2 or 3

4mm MC socket

CDN-M4

unshielded mains supplies

4

4mm MC socket

CDN-M5

unshielded mains supplies

5

4mm MC socket

CDN-RJ-11

unshielded lines

6

RJ11

CDN-RJ-11S

shielded lines

6

RJ11

CDN-RJ-45

unshielded lines

8

RJ45

CDN-RJ-45S

shielded lines

8

RJ45

CDN-S1

shielded lines

1

BNC

CDN-S2

shielded lines

2

XLR

CDN-S9

shielded lines

9

9 pole Sub-D

CDN-S25

shielded lines

25

25 pole Sub-D

CDN-AF2

asymmetric lines

2

connector block

CDN-AF4

asymmetric lines

4

connector block

CDN-AF8

asymmetric lines

8

connector block

CDN-T2

symmetric lines

2

connector block

CDN-T4

symmetric lines

4

connector block

CDN-T8

symmetric lines

8

connector block

CDN-USB-C

unshielded lines

4

connector block

CDN-USB-P

unshielded lines

4

connector block

KEMZ-801

The EM Coupling Clamp is used in all cases where CDNs are not advisable or not available.

 The lines to be tested are in this case inserted in the clamp and the test voltage is injected inductively.


EMC Analyzers

Laplace



SA3000



Spectrum Analyzer

10 kHz to 3.0 GHz EMC Analyzer



Laplace SA3000



Emissions
EN, FCC, As/NZ, and CISPR standards



Data

The Laplace SA3000 EMC analyzer provides an exceptionally cost effective tool to manufacturers and others who wish to measure EMC emissions from their products. Entirely controlled from an intuitive Windows software package, the analyzer can enable a self-test and self-certification strategy to be adopted with confidence.


The software is a true Windows program which means that results can be easily transferred to printer and disk and to other applications such as Word and Excel.


A full range of compatible accessories are available, including compact test cells and antennas, all fully calibrated to 3GHz.



Key Points

  • 9KHz - 3GHz frequency span.
  • Meets all EMC standards for measurements.
  • Optional Band A filter (200Hz RBW).
  • USB interface to any standard PC.
  • Full set of detectors (Pk, QP and Ave).
  • Simultaneous measurement of all three detectors.
  • Limit lines shown on results plots for simple compliance assessment.
  • Up to 20 marked points with bargraph and tabular presentation.




Laplace



SA1000



10 kHz to 1.1 GHz

EMC

 Spectrum Analyzer

Emissions



SA1000 Spectrum Analyzer


EN, FCC, As/NZ & CISPR Standards



Data

A high performance, high specification, Fully PC Controlled, Spectrum Analyzer for compliance measurements with advanced Windows software.



Auto Limit Level & Antenna Factor Compensation



EMC compliance tests to EN standards



True average and quasi-peak measurements



Powerful PC based software with Test Director Expert System to assist testing.



Unique single frequency mode for non-steady emissions



Auto compensation for test site errors when used with the ERS


EMC Pre-Selectors

Laplace

RF 900 & RF 910



Pre-Selectors for EMC test

Data


These Pre-Selectors are high specification, switched band filters which track the scanning of the EMC Analyser. Control is via USB link from the Laplace EMCEngineer software supplied with SA1002 and SA3000 analysers. Installation and operation is completely automatic, and the filters will synchronise with the analyser scan without any operator intervention. A front panel switch allows manual operation if required.

Two models are available:

RF910  Band B,  150KHz - 30MHz. 8 filter bands

RF915  Band A & B,  9KHz - 30MHz.  13 filter bands


Pass band attenuation is just 4dB and out-of-band rejection is nominally 40dB. Key Points Fully automatic operation. Band A (RF910)and band A+B (RF915) versions. No active components in RF path, so very high noise tolerance. 5 + 5 pole filters for high out-of-band rejection. Can be used with any EMC analyser.

Laplace



RF Filters



Laplace RF600

Laplace RF700

Laplace RF800



Data

RF 600

FM Band Rejection



RF 700

30 MHz High Pass



RF 800

0.15 - 30 MHz Pre-selector


LISN's

Laplace

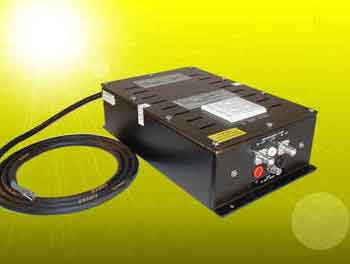

Line Impedance Stabilization Networks



10  to  500 Amp

Single and Three Phase



LISN



LISN Webpage

Data



The Fully Compliant Accessory For Conducted Emissions Testing.



Unique, IsoLISN, option for portable use.

Transient limiters included on Standard types.



Full range of LISN's from 10 Amp up to 500 Amp.

Single and Three phase.



CISPR 16, MIL-STD, Automotive and other special types.


RF EMI Absorbing Clamps

Schwarzbeck

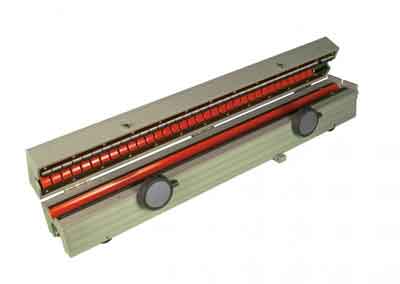

MDS 21 B



EN55014

 CISPR 16-1-3



30 - 1000 MHz

Image result for MDS 21 B



Data

    Fully compliant with CISPR16


    Accepts cables up to 0.86" (22mm)



    Impedance: 50 Ω



    Maximum Input Power: 5 Watts



    Maximum Current: 30 Amps



    Wheeled for east movement


Schwarzbeck

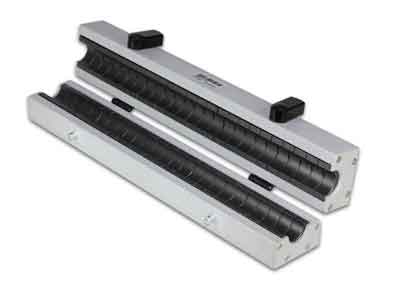

MDS 22



EN55014

 CISPR 16-1-3



300 MHz - 2.5 GHz (3GHz)

Image result for schwarzbeck MDS 22



    Fully compliant with CISPR16


    Accepts cables up to 0.47" (12mm)



    Impedance: 50 Ω



    This model has been Discontinued
