Passive Ethernet & USB Filters

Buy American Act Compliant

Made in the USA

DJM Electronics RF Shielded EMI Ethernet Filters
PASIF 1G Price: Call or Email	PASSIVE GIGABIT ETHERNET EMI FILTER, ≥80 dB up to 40 GHz Gigabit‑capable 8‑line passive design (no power required) ≥80 dB shielding effectiveness Field‑swappable threaded penetration for 1"–12+" wall thickness Ideal for SCIF, TEMPEST and EMC test enclosures Supports custom I/O formats up to 250 MHz per line ICD 705 compliant PASIF 1G

ACTIV 10G Price: Call or Email	DIGITAL 10 GbE EMI FILTER, ≥100 dB 10 kHz–40 GHz Supports 10BASE‑T through 10GBASE‑T (10 Mb/s–10 Gb/s) ≥100 dB shielding effectiveness from 10 kHz to 40 GHz Field‑swappable threaded penetration for 1"–12+" wall thickness 12 VDC 2 A external power supply included Meets ICD 705 and MIL‑STD‑461 requirements ACTIV 10G

ACTIV PoE Price: Call or Email	INTEGRATED 60 W PoE & 10 GbE FILTER, ≥100 dB ISOLATION Passes up to 60 W (802.3bt) while shielding 10 kHz–40 GHz Auto‑negotiates PoE class and data rate up to 10 Gb/s Internal low‑noise injector — no external injector necessary Field‑swappable threaded penetration for 1"–12+" wall thickness LED indicators for PoE and link status Ideal for PTZ cameras, access points, IP telephones ACTIV PoE

DJM Electronics USB 3.1 Gen 2 EMI Filters
ACTIV USB 3.1 Price: Call or Email	USB‑C EMI FILTER – 10 Gb/s & 60 W PD, ≥90 dB up to 40 GHz USB 3.1 Gen 2 (10 Gb/s) full‑duplex data throughput Type‑C connectors inside and outside, reversible orientation Passes USB Power Delivery 3.0: 5, 9, 15 or 20 V up to 3 A (60 W) Backwards compatible with USB 2.0/1.1 devices Field‑swappable threaded penetration for 1"–12+" wall thickness Complies with ICD 705, TEMPEST, and MIL‑STD‑461 ACTIV USB 3.1

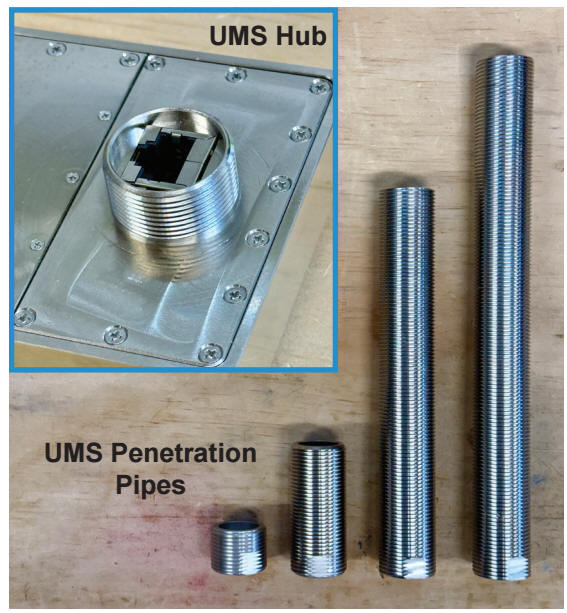

Universal Mounting System
For ACTIV™ and Pasif™ EMI Filters
	ACTIV™ and Pasif™ EMI Filters incorporate a Universal Mounting System (UMS) with a threaded hub on the filter output that mates to an interchangeable threaded penetration pipe. Penetration pipes, offered in multiple lengths, screw directly onto the hub, enabling easy installation through shield walls of any material and thickness. All that’s required is a single hole in the wall plus a gasket and flange nut to secure the filter with an RF-tight seal. Swapping penetration pipes is as simple as loosening the pipe with a wrench and threading on another; the filter body, nut, gasket and hole in the shield wall are all reused. UMS
