  Comb Generator Index

YRS01 Noise & Comb Generator (5KHz - 1GHz)

YRS02 Noise & Comb Generator (5KHz - 1GHz)

YRS03 Noise & Comb Generator (10MHz - 6GHz)

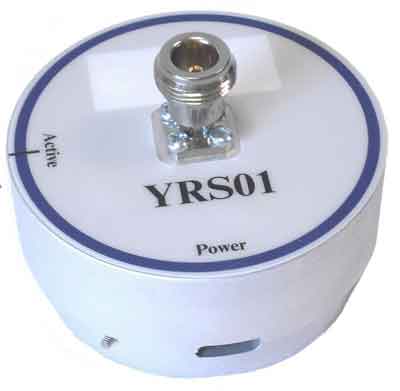

Eurofins York YRS01 - Noise or Comb Reference Source (5 KHz to 1 GHz)

 York Logo

Multi-mode Reference Source

Broadband Noise or Comb Output



5 KHz to 1 GHz



[YRS01] Reference Source



 Data

The YRS01 is a multi-mode reference source capable of producing a broadband noise or comb output up to 1GHz.

Selectable noise or comb output
Flexibility across a range of applications
Stable output
Repeatable measurements
5 kHz to 1 GHz output
Applications across a broad frequency spectrum
Compact and portable
Comparisons between sites and environments
Battery powered
No power or interconnecting cable effects on measurements
The YRS01 has been designed specifically to complement the CGE range of comb generators, and can be supplied as part of the CGE kits to provide a reference source solution covering 5 kHz to 18 GHz and over.

The YRS01 is a broadband noise and comb source that is capable of producing a continuous noise output from 9 kHz to 1 GHz, or a comb of frequencies within the 5 kHz to 1 GHz range, with step size being selected by the user. The noise generator enables observation of details over the full spectral range, while the comb generator allows for the reference signal output and noise floor to be viewed simultaneously.

The YRS01 is compatible with the BP01 battery pack, or alternatively can be powered using an external USB supply.

Radiated Emissions

For radiated operation two monopole antennas, optimised for different frequency bands, are available which attach to the top of the unit. The YRS01 is an ideal source for carrying out checks on open area test sites (OATS) and anechoic chambers.

The YRS01 is compact and battery powered, allowing operation as an electrically small source, which minimises the effect of the YRS01 itself when characterising the electromagnetic environment. The YRS01 is housed in a metal enclosure so that it can be mounted in direct contact with a metal ground plane as may be required by some tests.

Applications

Comparison between different measurement environments such as OATS or anechoic chambers

Radiated measurement systems validation and verification

Reference source for:

  • Daily pre-test checks if required by the accreditation authorities
  • Long-term performance monitoring
  • Spectrum analyzer / receiver pre-check

Measuring amplifier gain and bandwidth

Spectrum analyzer/receiver pre-check

Conducted Emissions

An "N-type" connector provides a direct 50Ω matched output, which can be used to carry out checks on conducted measurement systems. Two adaptors are available as optional accessories:

  • The LSA03 provides a capacitive link from the output of the YRS01 to a standard IEC 320 mains power connector. This allows checks and investigations on conducted measurement systems to be made, for example using a LISN or an absorbing clamp.
  • The NIA01 provides an interface to RJ11, RJ14, RJ45 and RJ25 standard connectors for conducted measurements using an ISN.

Specifications


Noise Mode
Frequency Range 9 kHz to 1 GHz direct connection into a 50Ω system
30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas
Temperature stability
(9 kHz to 1 GHz)
15°C to 30°C: <=1dB
5°C to 40°C: <=2.5dB
Time stability <1dB (typical over a 12 month period)
Operating Time 7.5 hours (typical with fully charged battery pack)
Comb Mode

Frequency Range
5 kHz to 1 GHz direct connection into a 50Ω system
30MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas
Comb Signal Step Size Selectable between:
10 kHz (5 kHz, 15 kHz, 25 kHz & 3.005 MHz min.)
100 kHz (50 kHz, 150 kHz, 250 kHz & 30.05 MHz min.)
1 MHz (0.5 MHz, 1.5 MHz, 2.5 MHz & 300.5 MHz min.)
5 MHz (2.5 MHz, 7.5 MHz, 12.5 MHz & 1.0025 GHz min.)
Temperature stability Amplitude: (5 kHz to 1 GHz)
15°C to 30°C: <=0.5dB
5°C to 40°C: <=1dB
5°C to 40°C: <=0.5 ppm
Time stability <1dB (typical over a 12 month period)
<=1ppm (typical over a 12 month period)
Operating Time 8.5 hours (typical with fully charged battery pack)
  Other
Output connector 50Ω N-type socket
Dimensions 76mm diameter - 35mm (56mm including connector) - without battery pack
76mm diameter - 81mm (102mm including connector) - with battery pack
Weight 0.6kg (including battery)
Power supply 5V 2AHr battery pack (Order code BP01).
External input 5.00V ± 0.25V, 300mA (mini-USB type B connector)
Indicators Active - green LED
Battery Low - red LED
Controls Rotary switch for mode selection
Frequency Range 50 MHz to 18 GHz direct connection into a 50Ω system
50 MHz to 18 GHz radiated using an integral antenna
Step Size 80 MHz or 100 MHz switchable
50 MHz or 80 MHz switchable version available to special order
Output connector 50Ω SMA socket
Temperature stability
(15°C to 35°C)
1 to 16 GHz: <1dB
100 MHz to 18 GHz: <2dB
Time stability Typically <1dB over a 12 month period
Dimensions 76mm diameter - 64mm (74mm including connector) - CGE01C with battery pack
76mm diameter - 18mm (28mm including connector) - CGE01C without battery pack
76mm diameter - 92mm - CGE01R with battery pack
76mm diameter - 46mm - CGE01R without battery pack
Weight Approx 550g (including battery)
Power supply 5V 2AHr battery pack. External input 5.00V ± 0.25V, 500mA
Operating Time 6.5 hours typical with fully charged battery pack.
Indicators Active, lower step size - green LED
Active, higher step size - red LED

Standard Order Kits

Part Number Description Parts Included
YRS01KIT01 Standard YRS01 reference source kit with antenna
  • YRS01 reference source
  • BP01 Rechargeable battery
  • Universal input battery charger
  • 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna - MON03
  • Hard case
  • Manual
  • Standard test CAL16
YRS01KIT02 Enhanced YRS01 reference source kit with multiple antennas and LISN adaptor
  • YRS01 reference source
  • BP01 Rechargeable battery
  • Universal input battery charger
  • 30MHz to 300MHz (optimum) 290mm long top-loaded monopole - TLM02
  • 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna - MON03
  • LISN adapter with IEC-style connection - LSA03
  • Hard case
  • Manual
  • Standard test CAL16

Accessories

TLM02 Antenna 30MHz to 300MHz (optimum) 290mm long top-loaded monopole
MON03 Antenna 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna
LSA03 Direct Coupler LISN adaptor with IEC socket
NIA01 Direct Coupler ISN adaptor with two data socket outputs

6 way RJ11/RJ14/RJ25 socket

8 way RJ45 socket

Output Measurement Results



CAL16 Direct Output 0 to 1GHz power measurement using spectrum analyzer, all modes
CAL17 Radiated Output 30MHz to 1GHz horizontal and vertical polarization electric field strength on OATS using receiver, either 3 m or 10 m test distance. Results for noise, 1 MHz and 5 MHz comb modes.
CAL18 Radiated Output 30 MHz to 1 GHz horizontal and vertical polarization electric field strength in FAR using spectrum analyzer at 3 m test distance. Results for noise, 1 MHz and 5 MHz comb modes.

Typical Output Measurement Results - Noise Mode

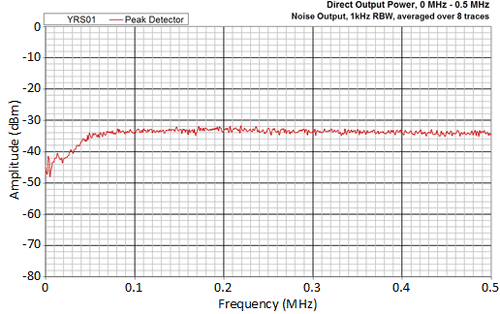

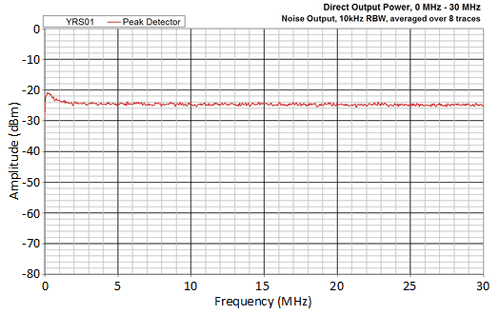

YRS01 - Direct Output Power - to 500 kHz   YRS01 - Direct Output Power - to 30 MHz

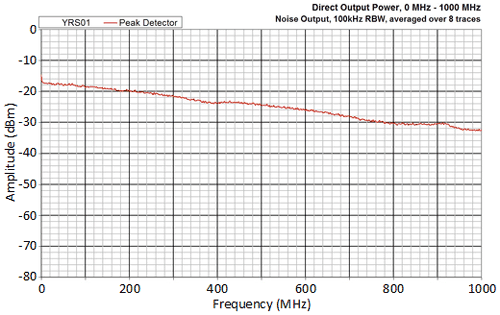

YRS01 - Direct Output Power - to 1 GHz   YRS01 - MON03 Antenna - Electric Field Strength - 3m - Vertical

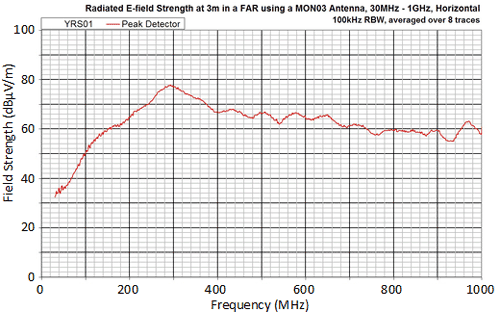

YRS01 - MON03 Antenna - Electric Field Strength - 3m - Horizontal

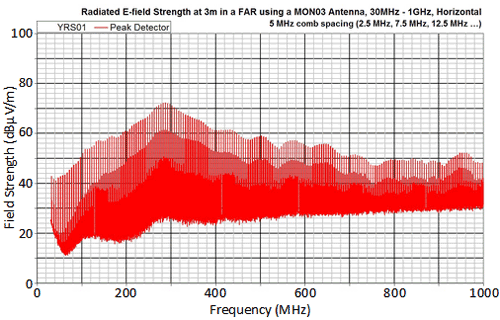

Typical Output Measurement Results - Comb Mode

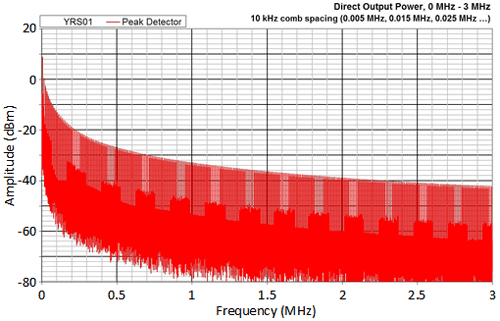

YRS01 - Direct Output Power - to 3 MHz   YRS01 - Direct Output Power - to 30 MHz

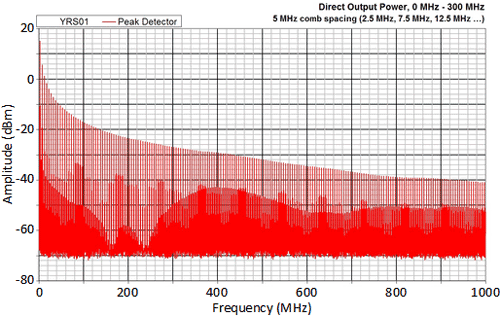

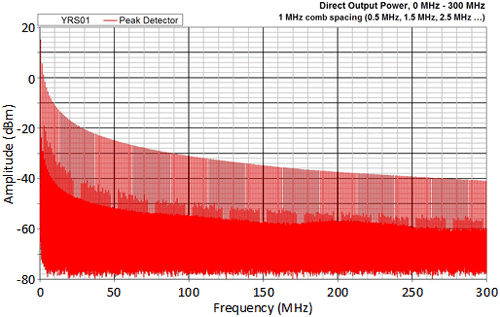

YRS01 - Direct Output Power - to 300 MHz   YRS01 - Direct Output Power - to 1 GHz

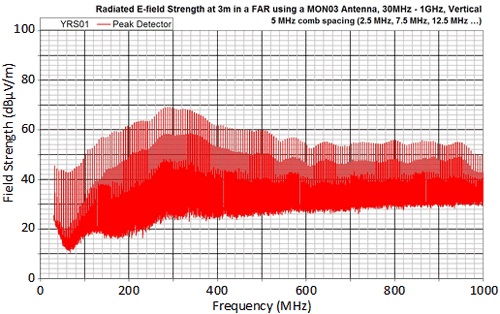

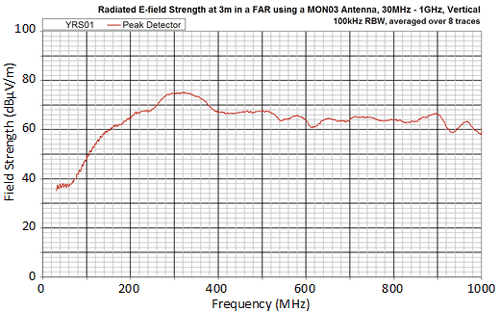

YRS01 - MON03 Antenna - Electric Field Strength - 3m - Vertical   YRS01 - MON03 Antenna - Electric Field Strength - 3m - Horizontal

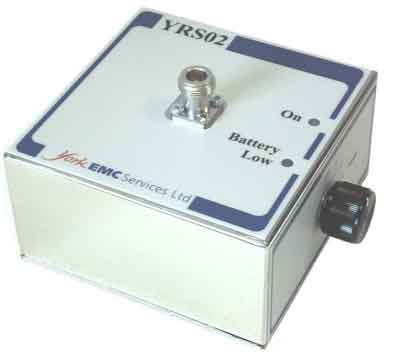

Eurofins York YRS02 - Noise or Comb Reference Source (5 KHz to 1 GHz)

 York Logo

Multi-mode Reference Source

Broadband Noise or Comb Output



5 KHz to 1 GHz



[YRS01]



Data

The YRS02 is a multi-mode reference source capable of producing a broadband noise or comb output up to 1GHz.

Selectable noise or comb output
Flexibility across a range of applications
Stable output
Repeatable measurements
5 kHz to 1 GHz output
Applications across a broad frequency spectrum
Compact and portable
Comparisons between sites and environments
Battery powered
No power or interconnecting cable effects on measurements
The YRS02 is a broadband noise and comb source that is capable of producing a continuous noise output from 9 kHz to 1 GHz, or a comb of frequencies within the 5 kHz to 1 GHz range, with step size being selected by the user. The noise generator enables observation of details over the full spectral range, while the comb generator allows for the reference signal output and noise floor to be viewed simultaneously.

Radiated Emissions

For radiated operation two monopole antennas, optimized for different frequency bands, are available which attach to the top of the unit. The YRS02 is an ideal source for carrying out checks on open area test sites (OATS) and anechoic chambers.

The YRS02 is compact and battery powered, allowing operation as an electrically small source, which minimizes the effect of the YRS02 itself when characterizing the electromagnetic environment. The YRS02 is housed in a metal enclosure so that it can be mounted in direct contact with a metal ground plane as may be required by some tests.

Applications

Comparison between different measurement environments such as OATS or anechoic chambers

Radiated measurement systems validation and verification

Reference source for:

  • Daily pre-test checks as required by the accreditation authorities (eg ISO 17025)
  • Long-term performance monitoring
  • Cable position investigation
  • Investigation of screened room behavior
  • Characterization of filter performance
  • Cable loss measurements

Measuring amplifier gain and bandwidth

Spectrum analyzer/receiver pre-check

Conducted Emissions

An N-type connector provides a direct 50Ω matched output, which can be used to carry out checks on conducted measurement systems. Two adaptors are available as optional accessories:

  • The LSA03 provides a capacitive link from the output of the YRS02 to a standard IEC 320 mains power connector. This allows checks and investigations on conducted measurement systems to be made, for example using a LISN or an absorbing clamp.
  • The NIA01 provides an interface to RJ11, RJ14, RJ25 and RJ45 standard connectors for conducted measurements using an ISN.

Specifications

  Noise mode
Frequency Range 9 kHz to 1 GHz direct connection into a 50Ω system
30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas
Temperature stability
(9 kHz to 1 GHz)
15°C to 30°C: <=1dB
5°C to 40°C: <=2.5dB
Time stability <1dB (typical over a 12 month period)
Operating Time 7 hours (typical with alkaline cells)
  Comb mode
Frequency Range 5 kHz to 1 GHz direct connection into a 50Ω system
30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas
Comb Signal Step Size Selectable between:
10 kHz (5 kHz, 15 kHz, 25 kHz & 3.005 MHz min.)
100 kHz (50 kHz, 150 kHz, 250 kHz & 30.05 MHz min.)
1 MHz (0.5 MHz, 1.5 MHz, 2.5 MHz & 300.5 MHz min.)
5 MHz (2.5 MHz, 7.5 MHz, 12.5 MHz & 1.0025 GHz min.)
Temperature stability Amplitude: (5 kHz to 1 GHz)
15°C to 30°C: <=0.5dB
5°C to 40°C: <=1dB
Frequency
5°C to 40°C: <=0.5 ppm
Time stability <1dB (typical over a 12 month period)
<=1ppm (typical over a 12 month period)
Operating Time 8 hours (typical with alkaline cells)
  Other
Output connector 50Ω N-type socket
Dimensions 120mm x 120mm x 60mm (79mm including connector)
Weight 1kg (including battery)
Power supply 4 each 1.5V cells (AA or equivalent). Alkaline or rechargeable
Indicators Active - green LED
Battery Low - red LED
Controls Rotary switch for mode selection including OFF

Standard Order Kits

Part Number Description Parts Included
YRS02KIT01 Standard YRS02 reference source kit with antenna
  • YRS02 reference source
  • 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna - MON03
  • Hard case
  • 4 each AA cells
  • Manual
  • Standard test CAL16
YRS02KIT02 Enhanced YRS02 reference source kit with multiple antennas and LISN adaptor
  • YRS02 reference source
  • 30MHz to 300MHz (optimum) 290mm long top-loaded monopole - TLM02
  • 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna - MON03
  • LISN adapter with IEC-style connection - LSA03
  • Hard case
  • 4 each AA cells
  • Manual
  • Standard test CAL16

Accessories

TLM02 Antenna 30MHz to 300MHz (optimum) 290mm long top-loaded monopole
MON03 Antenna 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna
LSA03 Direct Coupler LISN adaptor with IEC socket
NIA01 Direct Coupler ISN adaptor with two data socket outputs

6 way RJ11/RJ14/RJ25 socket

8 way RJ45 socket

Output Measurement Results

CAL16 Direct Output 0 to 1GHz power measurement using spectrum analyzer, all modes
CAL17 Radiated Output 30 MHz to 1 GHz horizontal and vertical polarization electric field strength on OATS using receiver, either 3 m or 10 m test distance. Results for noise, 1 MHz and 5 MHz comb modes.
CAL18 Radiated Output 30 MHz to 1GHz horizontal and vertical polarization electric field strength in FAR using spectrum analyzer at 3 m test distance. Results for noise, 1 MHz and 5 MHz comb modes.

Typical Output Measurement Results - Noise Mode

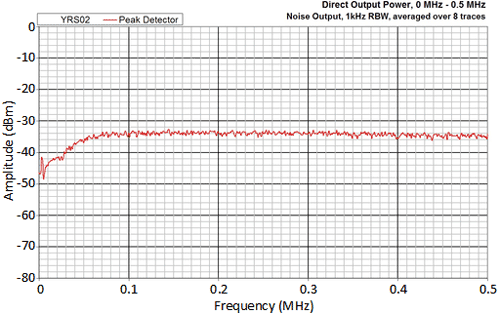

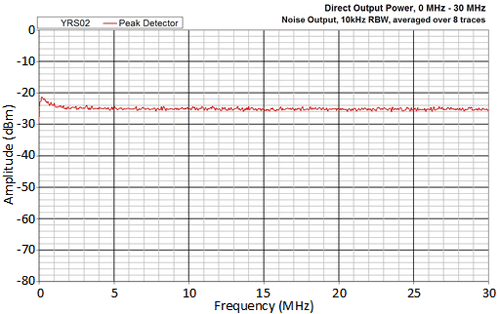

YRS02 - Direct Output Power - to 500 kHz   YRS02 - Direct Output Power - to 30 MHz

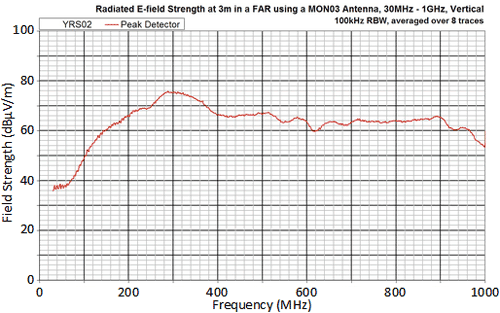

YRS02 - Direct Output Power - to 1 GHz   YRS02 - MON03 Antenna - Electric Field Strength - 3m - Vertical

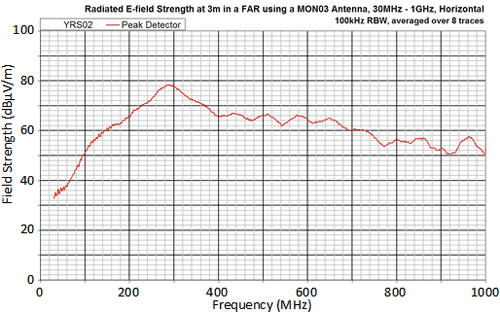

YRS02 - MON03 Antenna - Electric Field Strength - 3m - Horizontal

Typical Output Measurement Results - Comb Mode

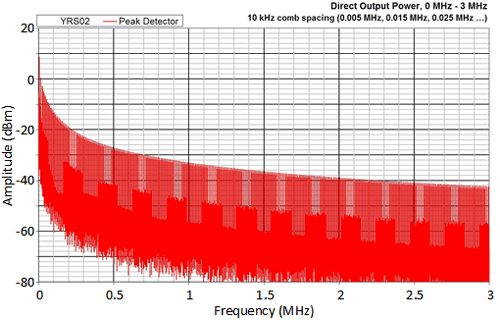

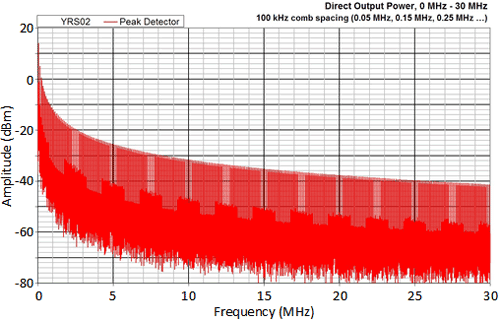

YRS02 - Direct Output Power - to 3 MHz   YRS02 - Direct Output Power - to 30 MHz

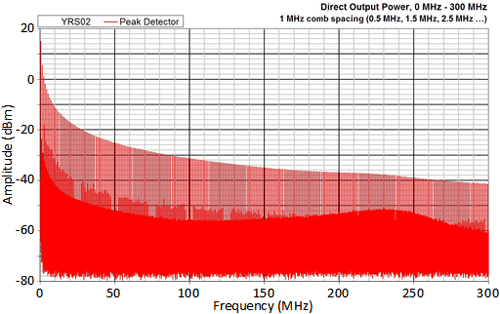

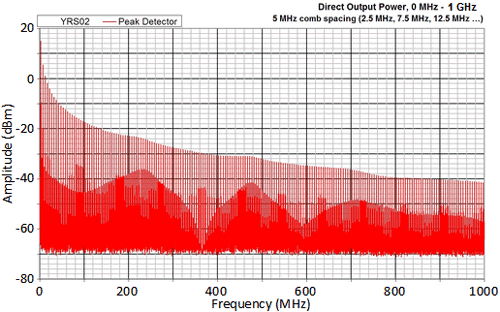

YRS02 - Direct Output Power - to 300 MHz   YRS02 - Direct Output Power - to 1 GHz

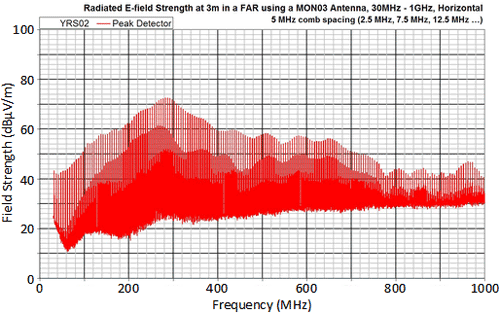

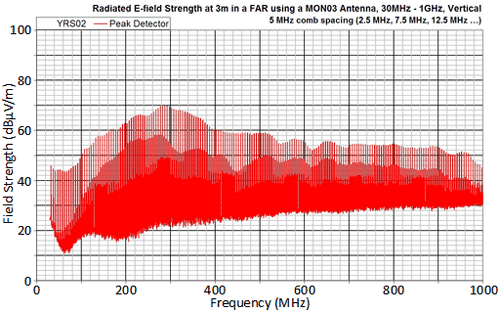

YRS02 - MON03 Antenna - Electric Field Strength - 3m - Vertical   YRS02 - MON03 Antenna - Electric Field Strength - 3m - Horizontal


Eurofins York YRS03 - Noise or Comb Reference Source (10 MHz to 6 GHz)

York Logo

Multi-mode Reference Source

Broadband Noise or Comb Output

10 MHz to 6 GHz

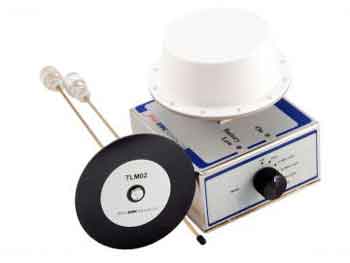

comb and noise reference source YRS03 KIT02


York YRS03

Data

The York Reference Source (YRS03) is a multi-mode, broadband noise and comb source that is capable of producing a continuous noise output or a comb of frequencies within the 10 MHz to 6 GHzrange, with the step size being selected by the user.

This noise generator enables observation of details over the full spectral range, while the comb generator allows for the reference signal output and noise floor to be viewed simultaneously, and the frequency accuracy of measurement of equipment to be checked.

The YRS03 is a compact and battery powered, allowing operation as an electrically small source, which minimises the effect of the YRS03 itself when characterising the electromagnetic environment. The YRS03 is housed in a metal enclosure so that it can be mounted in direct contact with a metal ground plane as may be required by some tests.

The YRS03 is supplied with a 50 Ω N-type output connector for direct connection to conducted measurement systems. For radiated operation, antennas can be attached to the unit's output connector.

Three antennas, one monocone and two monopole optimised for different frequency bands, are available.

The YRS03 is an ideal source for carrying out checks on Open Area Test Sites (OATS) and fully- or semi-anechoic chambers.



Copyright © 2001-2023  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
