Designed specifically to meet the conducted RF immunity testing conditions specified in EN61000-4-6

The Coupling/Decoupling Network (CDN) facilitates the testing of EMC immunity by coupling RF directly to or from cables connected to the equipment under test. This technique is the preferred method for immunity testing according to IEC61000-4-6. CDNs can also be used for pre-compliant emissions measurements according to EN55022.

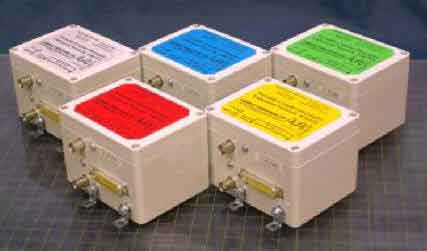

Laplace Enhanced Coupling Decoupling Network (CDN)

New Enhanced CDN



Data

Just 5 models to cover over 25 different cable types

User configurable

Fully compliant (IEC61000-4-6)

Enhanced models feature feedback output.

  • Calibrated to the RF level applied to the cable.
  • Includes detector to provide DC level.
  • Removes uncertainty due to unknown EUT cable impedance.
  • Ensures accurate control of stress level.
  • Eliminates requirement for the 6dB attenuator in the RF feed.

Fully calibrated.

All include matching cables and adaptors.
Reduce equipment costs and maximise flexibility due to the Versatile benefits of the range.
Just 5 models cover over 23 different cable types.
Model Cable Type Cables Included Standard CDN types
covered		 I max Per Core AE Filter Capacitance
S46ST6 Standard
or
E46ST6 Enhanced		 Shielded and unshielded
cables up to 6 core, rated up
to 2 amps		 50R BNC cable for S1
Cable for S2,S6*
Cable for Tx and Afx*		 S1, S2, S3, S4, S5, S6
AF2, AF3, AF6
T2, T3, T6
M1, M2, M3		 1A Nil or 22pF per
core with 47nF
available on 2
cores
S46ST8 Standard
or
E46ST8 Enhanced		 Screened Telecom cables up
to Cat 5, 4 pair cables		 4 pair RJ45 STP cable
4 pair RJ45 UTP cable
2 pair RJ11 cable		 STP and UTP 4 pair.
2 pair RJ11
S1,S8
AF1, AF2, AF4, AF8
T1, T2, T4, T8		 250mA Nil or 47pF per
core
S46T24 Standard
or
S46T24 Enhanced		 Unscreened cables with
individual cores and twisted
pairs up to 24 cores		 Qty 2 unterminated cable
sets		 AF1, AF2, AF3, AF4, AF6,
AF8, AF12 & AF24		 250mA 47pF per core
S46S25 Standard
or
E46S25 Enhanced		 Screened cables up to 25
cores		 Cable set terminated in D
type connector.
Cable set unterminated.		 Any Sxx type up to 25 cores 250mA None required
S46M3 Standard
or
E46M3 Enhanced		 Power and ground feeds rated
up to 16A		 IEC/UK13A cable set.
Qty 2 sets unterminated		 M1, M2, M3 16A 47nF on L and N
OPTIONS
46ZZImpedance adaptor pair
For on-site calibration of x46xx VCDN and 22L test adaptor.
Connects directly to the CDN EUT and AE ports.
Fitted with BNC or N type RF sockets (specify with order).
Whilst conforming to the requirements of IEC61000-4-6, the 46ZZ has
built-in spacing to establish the 30mm separation from the CDN.		 46GPGround plane
An Aluminium ground plane with
sprung retainers to hold 1 or 2 CDNs
during calibration and use. Compact,
convenient & transportable.
An extension plate (46XP) is available
to cope with larger EUTs.		 22L Emission receiver adaptor
For emission testing of telecom ports with the Enhanced model, the 22L
adaptor secures the appropriate impedance matching according to
EN55022:1998 Fig D4.

The Laplace 46 series of CDNs is unique in offering 2 distinct and unique features:

Versatility™. The 46 series are programmable such that many different cable types can be accommodated with one CDN.
Enhanced™. The "E" version provides a calibrated feedback signal so that the stress level can be accurately controlled during the test.

Each model is shipped complete with an appropriate set of adaptors and cables.

Calibration adaptors and modular ground plane sets also available.

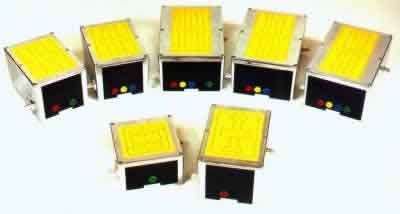

Laplace Primary Power Line CDN's



Primary Power CDN's



Data

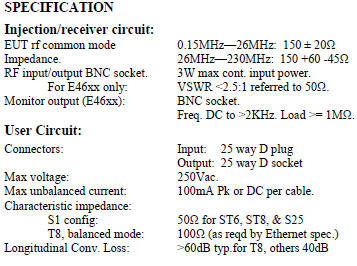

Specification



CDN'S General

Frequency Range



150 KHz to 230MHz at 3V rms

Common Mode RF Range
Max.



0 - 20V RMS
Frequency range 150 KHz to 80 MHz.

RF Input



50 ohm BNC socket

EUT Output



250 ohm Nominal

Earth Connector



2BA Non-insulated Binding Post

Maximum Size



222 x 146x 106 mm

Model

EUT Poles

 Current
AC RMS

Voltage
AC RMS

EUT Connector

CDN-M1-16A

1 (PE)

16A

250V

4 mm

CDN-M2-16A

2 (L1,N)

16A

250V

4 mm

CDN-M3-16A

3 (L1,N,PE)

16A

250V

4 mm

CDN-M3X-16A

3 (L1,L2,L3)

16A

250V

4 mm

CDN-M4-16A

4 (L1,L2,L3,PE)

16A

250V

4 mm

CDN-M4X-16A

4 (L1,L2,L3,N)

16A

250V

4 mm

CDN-M5-16A

5 (L1,L2,L3,N,PE)

16A

250V

4 mm

CDN's up to 500 Amps

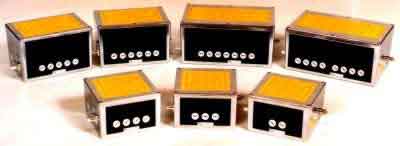

Laplace Signal Lines (Unscreened) CDN's

Unscreened CDN's



Data

Specification



CDN'S General

Frequency Range



150 KHz to 230MHz at 3V rms

Common Mode RF Range
Max.



0 - 20V RMS
Frequency range 150 KHz to 80 MHz.

RF Input



50 ohm BNC socket

EUT Output



250 ohm Nominal

Earth Connector



2BA Non-insulated Binding Post

Maximum Size



222 x 146x 106 mm

Model

EUT Poles

 Current
AC RMS		 Voltage
AC RMS		 EUT Connector

CDN-AF2-03A

2 (Unscreened)

3A

250V

4 mm

CDN-AF3-03A

3 (Unscreened)

3A

250V

4 mm

CDN-AF4-03A

4 (Unscreened)

3A

250V

4 mm

CDN-AF5-03A

5 (Unscreened)

3A

250V

4 mm

CDN-AF6-03A

6 (Unscreened)

3A

250V

4 mm

CDN-AF7-03A

7 (Unscreened)

3A

250V

4 mm

CDN-AF8-03A

8 (Unscreened)

 3A 250V

4 mm

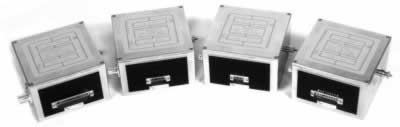

Laplace Signal Lines (Screened) CDN's



Screened CDN's



Data

Specification



CDN'S General

Frequency Range



150 KHz to 230MHz at 3V rms

Common Mode RF Range
Max.



0 - 20V RMS
Frequency range 150 KHz to 80 MHz.

RF Input



50 ohm BNC socket

EUT Output



250 ohm Nominal

Earth Connector



2BA Non-insulated Binding Post

Maximum Size



222 x 146x 106 mm

Model

EUT Poles

 Current
AC RMS		 Voltage
AC RMS		 EUT Connector

CDN-S1-BNC

1 (Screened, 50 ohm)

1A

500V

BNC

CDN-S2-TWX

2 (Screened, 100 ohm)

1A

500V

Twinax

CDN-S3-DIN

3 (Screened)

250mA

50V

DIN

CDN-S4-DIN

4 (Screened)

250mA

50V

DIN

CDN-S5A-DIN

5 (Screened, 180)

250mA

50V

DIN

CDN-S5B-DIN

5 (Screened, 240)

250mA

50V

DIN

CDN-S6-DIN

6 (Screened)

250mA

50V

DIN

CDN-S7-DIN

7 (Screened)

250mA

50V

DIN

CDN-S8-DIN

8 (Screened)

250mA

50V

DIN

CDN-S9-D

9 (Screened)

250mA

250V

D-type

CDN-S15-D

15 (Screened)

250mA

250V

D-type

CDN-S25-D

25 (Screened)

250mA

250V

D-type

CDN-S37-D

37 (Screened)

250mA

250V

D-type
