Frankonia SAC-10 Plus Triton & SAC-10 Plus 10m EMC Test Compliance Chamber

10 Meter EMC Test Chamber

with Multi-axes

30MHz to 40GHz


SAC-10 Lpus Triton Anechoic Chamber


SAC-10 Plus Triton Data


Features

Multiple test axis

10,0 m, 5,0 m & 3,0 m measuring distances with a Quiet Zone of ø3,0 m

Full compliant EMI/EMS

No need to modify the test environment or the test setup

Floor absorbers remain in the chamber with guided movements (manual or semi- automatic)

Antennas remain in the chamber

Quality of testing at a constant high level

Test time decreases considerably

Excellent performance in a compact chamber size

Ingenious absorber lining with Frankosorb®

Cost-saving and future-proof investment

Space-saving chamber in polygonal shape

Easy and efficient to use

Malfunctions or damages are almost impossible

Optimized workflow

Turnkey solution

Frankonia Frankosorb Absorber

Frankonia Hybrid Absorber

SAC-10 Plus Triton

The SAC-10 Plus Triton is Frankonia’s full compliant and state-of-the-art EMC testing solution with multiple test axes at 10m, 5m & 3m measuring distances with a Quiet Zone (QZ) of ø3,0m.

The innovative polygonal shape along with its optimized absorber layout allows for a usage of multiple axes having a ready test setup for emission and immunity tests.

The benefits of its multiple test axes allow our customers to measure all required EMI/EMS procedures without the need to modify the test environment or the test setup.

The test equipment and instruments can remain connected in the chamber. The absorber areas necessary for each test can be provided with guided movement. Due to the reproducible test setup, the SAC-10 Plus offers outstanding performance for NSA, SVSWR and FU and real time savings.


Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461

Technical Specifications

External dimension

 19.205 x 12.080 x 8.325 mm

Version

 Polygonal shape design with multiple test axes

Quiet Zone

 ø3,0 m
Turntable ø3,0 m or ø4,0 m

Measuring distance

 Test axis 1: 10,0 m, 5,0 m and 3,0 m
Test axis 2: 3,0 m
Test axis 3: 3,0 m

Load capacity

 up to 5,0 tons; special turntable systems possible

Frequency range

 30 MHz to 18 GHz (option 40 GHz)

10 Meter EMC Compliant Test Chamber

30MHz to 40GHz

SAC 10 Plus 10m EMC Test Chamber


SAC-10 Plus Data


Features

10,0 m, 5,0 m & 3,0 m measuring distances with a Quiet Zone of ø3,0 m

Full compliant EMI/EMS

Ingenious absorber lining with Frankosorb®

Outstanding performance with long-lasting Frankosorb® non-combustible absorbers

Cost-saving and future-proof investment

Space-saving chamber in polygonal shape

Turnkey solution

Catalog

SAC-10 Plus

The SAC-10 Plus is Frankonia’s full compliant and state-of-the-art EMC testing solution at 10m, 5m & 3m measuring distances with a Quiet Zone (QZ) of ø3,0m.
The innovative polygonal shape along with its optimized absorber layout is a space-saving, cost-saving and efficient solution with a single test axis.
The SAC-10 Plus is fully compliant for emission tests validated according to CISPR 16-1-4, as well as full compliant for immunity tests according to IEC/EN 61000-4-3.
In addition, the SAC-10 Plus is Frankonia’s most compact 10m chamber available to meet CISPR 16-1-4 and ANSI C63.4 test site requirements.


Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461

Technical Specifications

External dimension

 19.205 x 12.080 x 8.325 mm

Version

 Polygonal shape design with single test axis

Quiet Zone

 ø3,0 m

Turntable

 ø3,0 m or ø4,0 m

Measuring distance

 10,0 m, 5,0 m and 3,0 m

Load capacity

 up to 5,0 tons; special turntable systems possible

Frequency range

 30 MHz to 18 GHz (option 40 GHz)



Frankonia SAC-10/H Hybrid EMC Test Chamber

10 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia CISPR 25



SAC-10/H Hybrid Data



Features

Frankosorb® Hybrid Absorber Lining

Customizable solution for any kind of EMC testing and limitless integration of individual applications

Adjustable chamber size, characteristics and configuration due to different EUT requirements

Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Specialized for ‘out-of-the-range’ EMC test environments

Turnkey solution

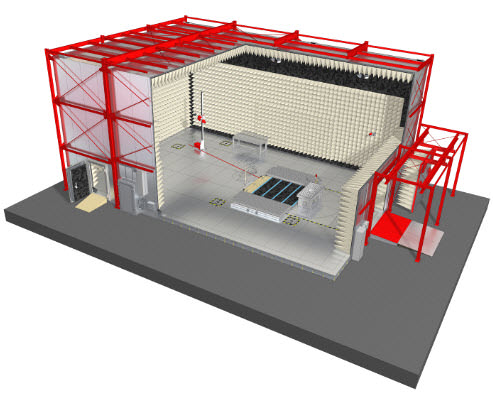

SAC-10/H Hybrid

The SAC-10/H are Frankonia’s full compliant and customizable EMC testing solutions at 10,0m measuring distance with a Quiet Zone (QZ) of ø3,0m up to ø6,0m with hybrid absorber layout.

Due to the high grade of customization reflecting the demands of our customers, this semi-anechoic chamber is adaptable in size and offers several configuration possibilities.

The innovative concept with its impressionable absorber layout achieves exceptional performance for emissions and immunity testing.



Typical Product Standards

Emissions

CISPR 11
CISPR 12
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11451
ISO 11452
MIL-STD 461

Technical Specifications

Chamber Type

SAC-10-3/H

SAC-10-4/H

SAC-10-5/H

SAC-10-6/H

External dimension

 18.380 x 12.830 x 8.550 mm 19.280 x 13.280 x 8.550 mm 21.080 x 15.080 x 8.550 mm 21.680 x 15.680 x 8.700 mm

Quiet Zone at 3.0m

 ø3,0 m ø3,0 m ø3,0 m ø3,0 m

Quiet Zone at 5.0m

 ø3,0 m ø4,0 m ø5,0 m ø5,0 m

Quiet Zone at 10.0m

 ø3,0 m ø4,0 m ø5,0 m ø6,0 m

Load capacity

 up to 80,0 tons; special turntable systems and dynamometer integration possible

Frequency range

 30 MHz to 18 GHz (option 40 GHz)

Frankonia SAC-10/P Pyramid EMC Test Chamber

10 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia SAC-10/P



SAC-10/P Pyramid Catalog



Features

Frankosorb® Long-pyramid Absorber Lining

Highly customizable solution for any kind of EMC testing and limitless integration of individual applications

Adjustable chamber size, characteristics and configuration due to different EUT requirements

Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Specialized for ‘out-of-the-range’ EMC test environments

Turnkey solution

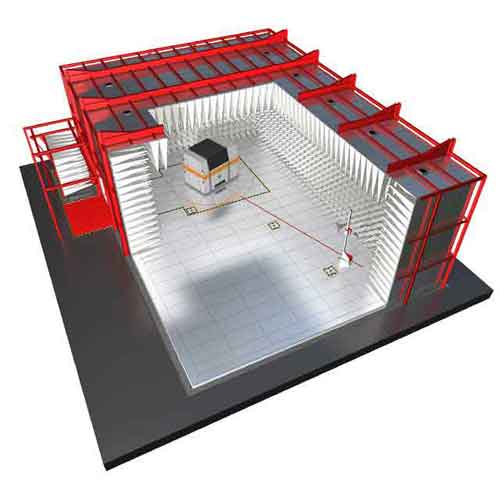

SAC-10/P Pyramid

The SAC-10/P are Frankonia’s full compliant and customizable EMC testing solutions at 10,0m measuring distance with a Quiet Zone (QZ) of ø3,0m up to ø6,0m and Frankonia’s unique long-pyramid absorber layout.

Due to the high grade of customization reflecting the demands of our customers, this semi-anechoic chamber is adaptable in size and offers several configuration possibilities.

The innovative concept with its impressionable absorber layout achieves exceptional performance for emissions and immunity testing.

Typical Product Standards

Emissions

CISPR 11
CISPR 12
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11451
ISO 11452
MIL-STD 461

Technical Specifications

Chamber Type

SAC-10-3/P

SAC-10-4/P

SAC-10-5/P

SAC-10-6/P

External dimension

 21.680 x 13.730 x 8.550 mm 21.680 x 13.730 x 8.550 mm 23.480 x 16.580 x 9.000 mm 24.980 x 17.180 x 9.000 mm

Quiet Zone at 3.0m

 ø3,0 m ø3,0 m ø3,0 m ø3,0 m

Quiet Zone at 5.0m

 ø3,0 m ø4,0 m ø5,0 m ø5,0 m

Quiet Zone at 10.0m

 ø3,0 m ø4,0 m ø5,0 m ø6,0 m

Load capacity

 up to 80,0 tons; special turntable systems and dynamometer integration possible

Frequency range

 30 MHz to 18 GHz (option 40 GHz)

Frankonia SAC-10V Vehicle EMC Test Chamber

10 Meter EMC Test Chamber

Quiet Zone up to ø6.0m

9KHz to 40GHz



SAC-10V – Frankonia Group



SAC-10V Catalog



Features

EMI

CISPR 16-1-4 and ANSI C63.4, full compliant CISPR 25 and CISPR 12, full compliant

EMS

IEC/EN 61000-4-3, full compliant

Testing according to ECE R10.5 with an integrated dynamometer

Integrated dynamometer, turning or fixed location, or mobile versions available

Available with Frankosorb® Pyramid Absorbers, or Hybrid Absorbers

Full compliant EMI/EMS Highly customizable solution for any kind of EMC testing and limitless integration of individual applications

Adjustable chamber size, characteristics and configuration due to different EUT requirements

Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Specialized for ‘out-of-the-range’ EMC test environments

Turnkey solution

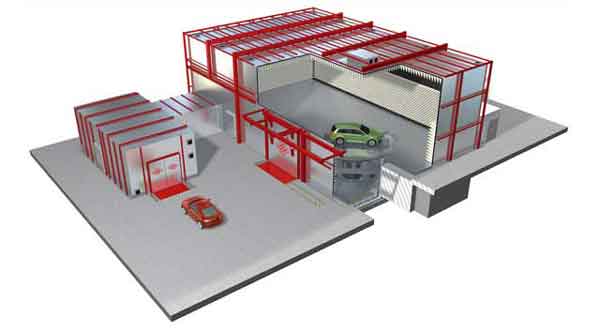

SAC-10V

Semi Anechoic 10m EMC Chamber dedicated to Vehicle Tests per ECE R10

Hybrid or Pyramid Absorbers



The SAC-10V chambers are Frankonia’s full compliant and customizable EMC testing solutions at 10m measuring distance offering various sizes of the Quiet Zone (QZ) and are dedicated to automotive full vehicle testing.
Due to the high grade of customization reflecting the demands of our customers, this semi-anechoic chamber is adaptable in size and offers several configuration possibilities.
The innovative concept with its impressionable absorber layout achieves exceptional performance for emission and immunity testing.



Typical Product Standards

Emissions

CISPR 11

CISPR 12

CISPR 14

CISPR 15

CISPR 25

CISPR 32

MIL-STD 461

ECE R10.5

Immunity

IEC/EN 61000-4-3

ISO 11451

ISO 11452

MIL-STD 461

RS 101, RS102

RS103

ECE R10.5

Typical Specifications

Chamber Type

SAC-10V-6/H

SAC-10V-6/P
Absorber Lining Hybrid Long-pyramid
External dimensions 22.580 x 15.680 x 8.700 mm (LxWxH) 26.480 x 20.180 x 10.500 mm (LxWxH)
Quiet Zone at 3,0 m ø3,0 m
Quiet Zone at 5,0 m ø5,0 m
Quiet Zone at 10,0 m ø6,0 m
Load capacity up to 80,0 tons; dynamometer integration
Frequency range 9 kHz/ 26 MHz to 18 GHz (option 40 GHz)
